AC220V Multi Lane Truck Weighing System With Different Weights

Name: AC220V Multi Lane Truck Weighing System With Different Weights
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO, CE

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                    AC220V Multi Lane Truck Weighing System, 50Hz High Speed Weight In Motion, 8lanes Truck Weighing System


Product Name:	High Speed Weight In Motion	Working Voltage:	220V AC
Weight Accuracy:	90%~97%	Speed:	0.5~100km/h
Single Axle Load:	40T	Single Axle Max Overload:	60T
MTBF:	≥20000h	Working Temperature:	-45~+80℃

Product Name:	High Speed Weight In Motion
Working Voltage:	220V AC
Weight Accuracy:	90%~97%
Speed:	0.5~100km/h
Single Axle Load:	40T
Single Axle Max Overload:	60T
MTBF:	≥20000h
Working Temperature:	-45~+80℃

Product Description

Multi Lane Truck Weighing System With Different Weights At The Same Time

Product Description

Establish an overrun dynamic fine inspection system based on computer network to automatically monitor illegal and out of gauge transportation of vehicles, realize 24-hour freight vehicle transportation monitoring, form a powerful deterrent, focus on solving the three major problems of shortage of overload control staff, difficulty in obtaining evidence, and safety of overload control, and reduce the rate of out of gauge vehicle transportation.

1. Full width pavement seamless detection

It is very common for highway vehicles to cross the lane or drive against the lane line during normal driving. In order to avoid detection, out of gauge vehicles will deliberately use the method of low-speed edging and pressing the sensor seam to drive, so that part of the tires leave the weighing carrier, making the data inaccurate to avoid detection. The weighing equipment can accurately weigh the vehicles that cross the lane and the vehicles that press the line, with the error not exceeding ± 5%.

2. On site inspection data management application

The data platform system can complete the functional requirements of collection, calculation, control, display, alarm, storage, etc., reduce the limit of personnel position, and promote the handling of overload control at the first time. At the same time, the system can analyze the data based on the vehicle data reported by each station, and provide support for highway managers to make decisions.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Single axle max Load	60Ton
Speed	0.5~100km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

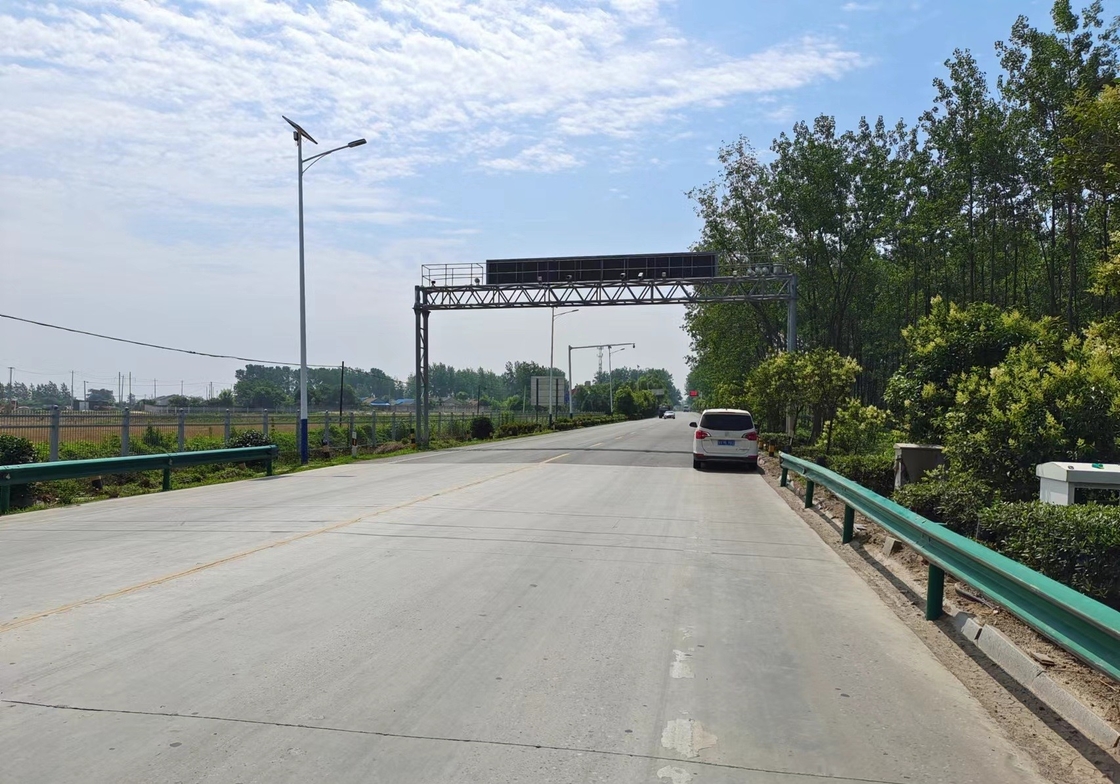

Project Case

AC220V Multi Lane Truck Weighing System With Different Weights 0
