AC220V 50Hz Wim Weigh In Motion For 0.5-105km/H Vehicle High Precision

Basic Information

Place of Origin:	Zhenghou`China
Brand Name:	Hengliang
Certification:	ISO
Model Number:	ZQS-40-SY

Minimum Order Quantity:	1 SET
Price:	USD 20000-35000/SET
Packaging Details:	Wooden box
Delivery Time:	5~7days
Payment Terms:	T/T
Supply Ability:	30 SET/Month

Get Best Price Contact Now

Detail Information

Type:	High Speed Weight In Motion	Power:	AC 220V
Weighing Error:	3%~10%	Speed:	0.5~105km/h
Single Axle Load:	40000kg	Maximum Load:	60000kg (single Axle)
Division Value:	50kg	MTBF:	≥20000h
Temperature Range:	-45~+80℃	Protection Level:	IP68
Highlight:	AC220V 50Hz Wim Weigh In Motion , 105km/H Vehicle weigh in motion wim , Wim Weigh In Motion for 105km/H Vehicle

Product Description

High Precision Dynamic Weighing System For 0.5-105km/H Vehicle

Product Function

Under the condition that the system does not affect the normal driving of vehicles, the overloaded vehicles are identified, which not only ensures the normal traffic flow, but also eliminates the overloaded vehicles and protects the safety of roads and driving.

Main components of the system:

1. High speed vehicle dynamic weighing detection system

2. High definition automatic license plate recognition system

3. Led illegal vehicle information release system

4. Audible and visual start emergency signal system of illegal vehicles

5. Anti escape system

6. Power supply, data and video transmission system

7. Customer management end and data management system (data server)

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

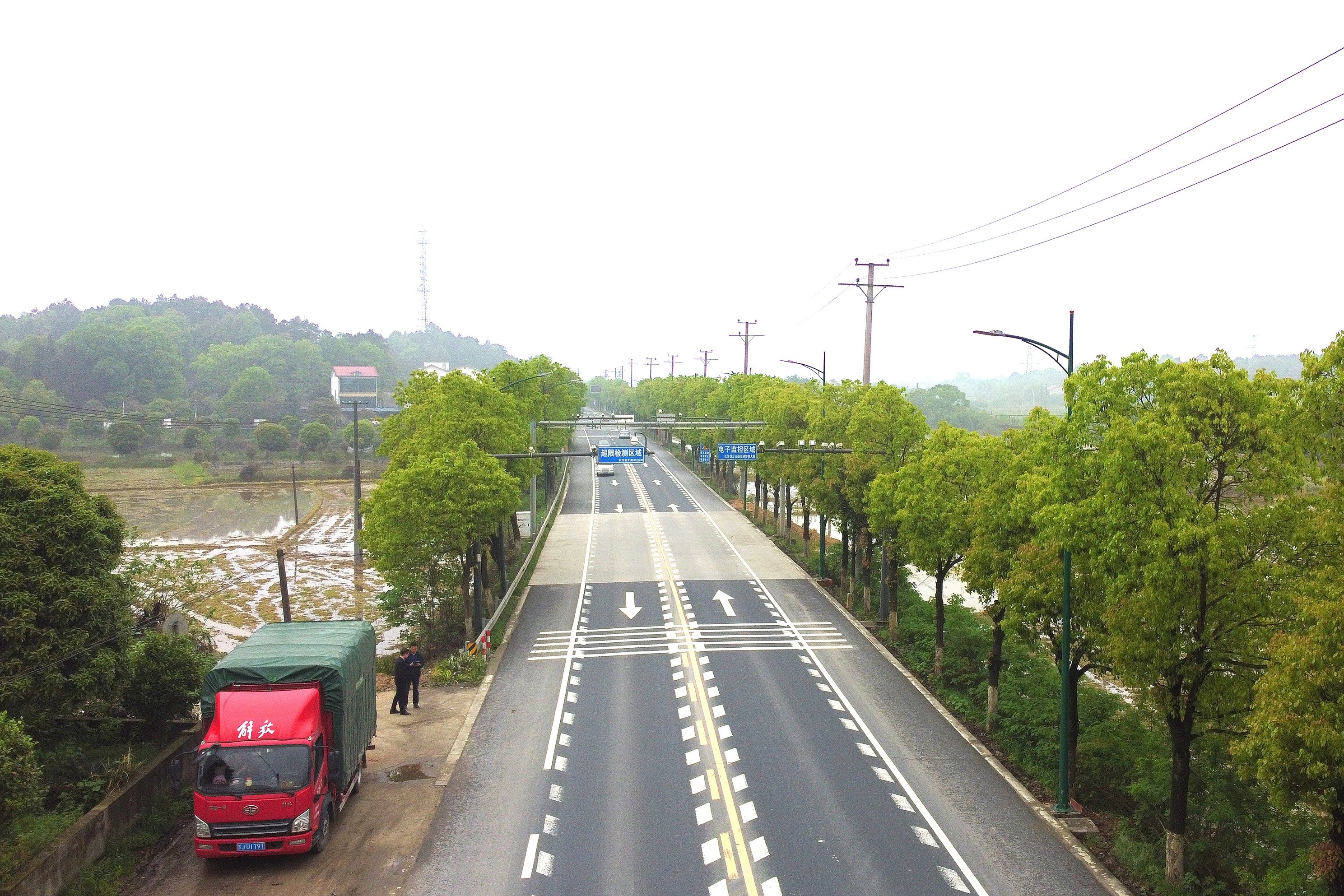

Project Case

AC220V 50Hz Wim Weigh In Motion For 0.5-105km/H Vehicle High Precision 0
