Highway Overload Control High Speed Weigh In Motion System Hengliang

Name: Highway Overload Control High Speed Weigh In Motion System Hengliang
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    Overload Control Weigh In Motion System, Weigh In Motion System Hengliang, Hengliang High Speed Weigh In Motion


Name:	High Speed Weight In Motion	Power:	AC 220V
Weighing Error:	3%~10%	Speed:	0.5~105km/h
Rated Load Of Single Axle:	40Ton	Maximum Overload Capacity:	60Ton (single Axle)
Division Value:	50kg	MTBF:	≥20000h
Temperature Range:	-45~+80℃	Protection Level:	IP68

Name:	High Speed Weight In Motion
Power:	AC 220V
Weighing Error:	3%~10%
Speed:	0.5~105km/h
Rated Load Of Single Axle:	40Ton
Maximum Overload Capacity:	60Ton (single Axle)
Division Value:	50kg
MTBF:	≥20000h
Temperature Range:	-45~+80℃
Protection Level:	IP68

Product Description

Highway Overload Control High Speed Weigh In Motion System & Axle Scales

Product Function

The highway overload control system provides a new overload control mode, which is an innovation of the traditional highway overload control and law enforcement means. It uses the equipment such as dynamic detection and monitoring or toll road weight charging system installed on the highway to collect and fix the information of illegal over limit and overload transportation of freight vehicles by means of off-site evidence collection, This is a law enforcement mode to deal with the vehicle operation unit according to law as the evidence to identify the illegal over limit and overload transportation of the vehicle operation unit.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

Project Case

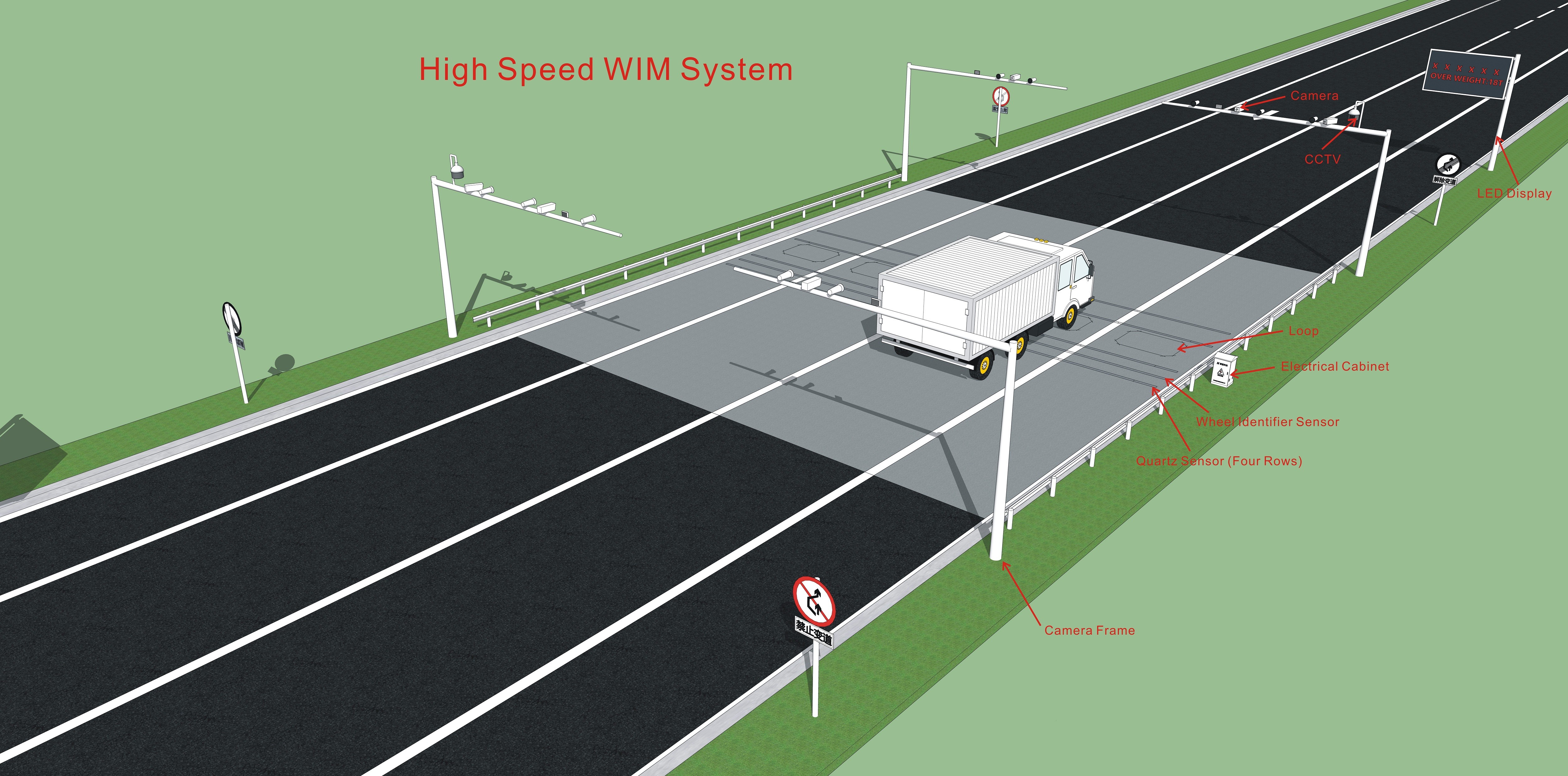

Highway Overload Control High Speed Weigh In Motion System Hengliang 0
