Off Site 8 Lanes High Speed Weigh In Motion Sensors 20000h MTBF

Basic Information

Place of Origin:	Zhenghou`China
Brand Name:	Hengliang
Certification:	ISO
Model Number:	ZQS-40-SY

Minimum Order Quantity:	1 SET
Price:	USD 20000-35000/SET
Packaging Details:	Wooden box
Delivery Time:	5~7days
Payment Terms:	T/T
Supply Ability:	30 SET/Month

Get Best Price Contact Now

Detail Information

Type:	High Speed Weight In Motion	Power:	AC 220V 50Hz
Weighing Error:	3%~10%	Speed Rate:	0.5~105km/h
Single Axle Load:	40T	Maximum Load:	60T (single Axle)
Division Value:	50kg	MTBF:	≥20000h
Temperature Range:	-45~+80℃	Protection Level:	IP68
Highlight:	8 lanes High Speed Weigh In Motion , Weigh In Motion Sensors 20000h MTBF , 20000h MTBF High Speed Weigh In Motion

Product Description

Off Site Dynamic Weighing System For Highway Vehicle Overload System

Product Function

The dynamic weighing detection system automatically measures the axle load, axle group weight, total weight, vehicle type, flow, speed and other traffic data of all passing vehicles without affecting the normal driving of vehicles. And automatically judge whether the vehicle exceeds the limit according to the overrun standard set in the system.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

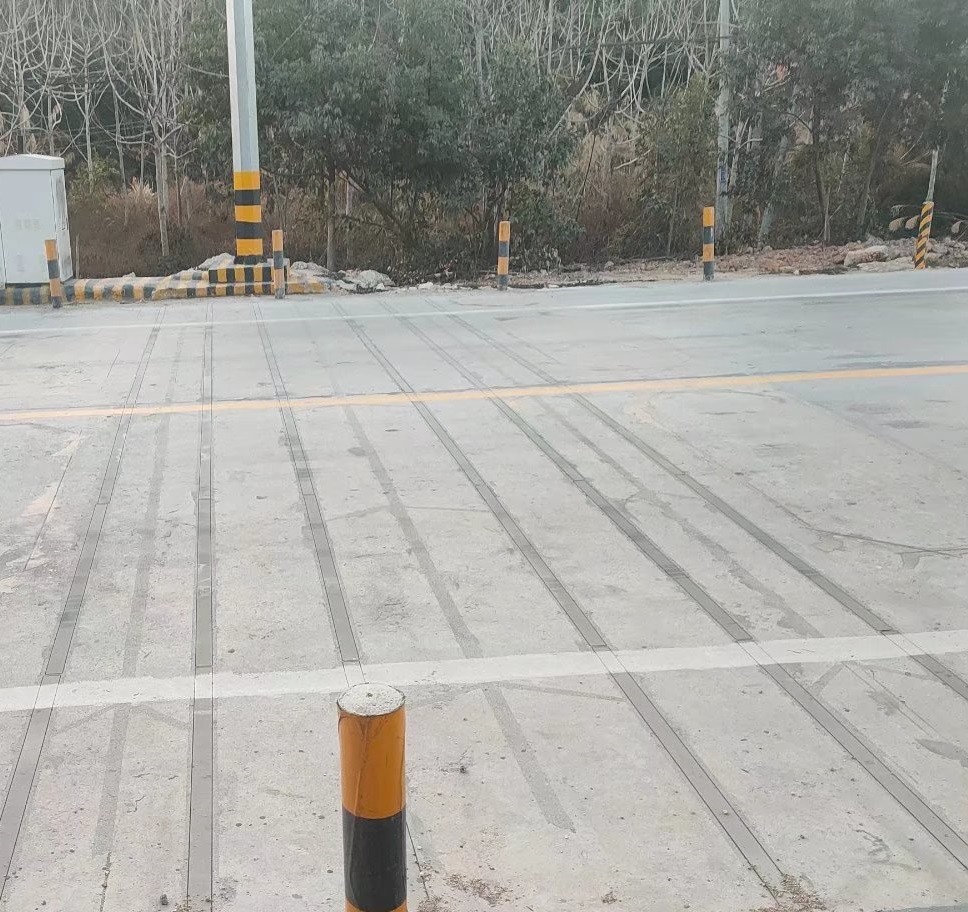

Project Case

Off Site 8 Lanes High Speed Weigh In Motion Sensors 20000h MTBF 0
