Unattended High Speed Weigh In Motion With 40000kg Truck Axle Scales

Name: Unattended High Speed Weigh In Motion With 40000kg Truck Axle Scales
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    Unattended High Speed Weigh In Motion, 40000kg Truck Axle Scales, Unattended Truck Axle Scales


Type:	High Speed Weight In Motion	Power:	AC 220V
Weighing Error:	3%~10%	Speed:	0.5~105km/h
Rated Load Of Single Axle:	40000kg	Maximum Overload Capacity:	60000kg (single Axle)
Division Value:	50kg	MTBF:	≥20000h
Temperature Range:	-45~+80℃	Protection Level:	IP68

Type:	High Speed Weight In Motion
Power:	AC 220V
Weighing Error:	3%~10%
Speed:	0.5~105km/h
Rated Load Of Single Axle:	40000kg
Maximum Overload Capacity:	60000kg (single Axle)
Division Value:	50kg
MTBF:	≥20000h
Temperature Range:	-45~+80℃
Protection Level:	IP68

Product Description

Unattended Dynamic Weighing System Of 40000kg Axle Scales & Truck Scales

Product Function

The non-stop weighing system of high-speed dynamic vehicles pre detects the weight of vehicles running normally on the main line of the highway to identify suspected vehicles exceeding the limit from the traffic flow. During the testing process, there is no need for staff to monitor on site.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

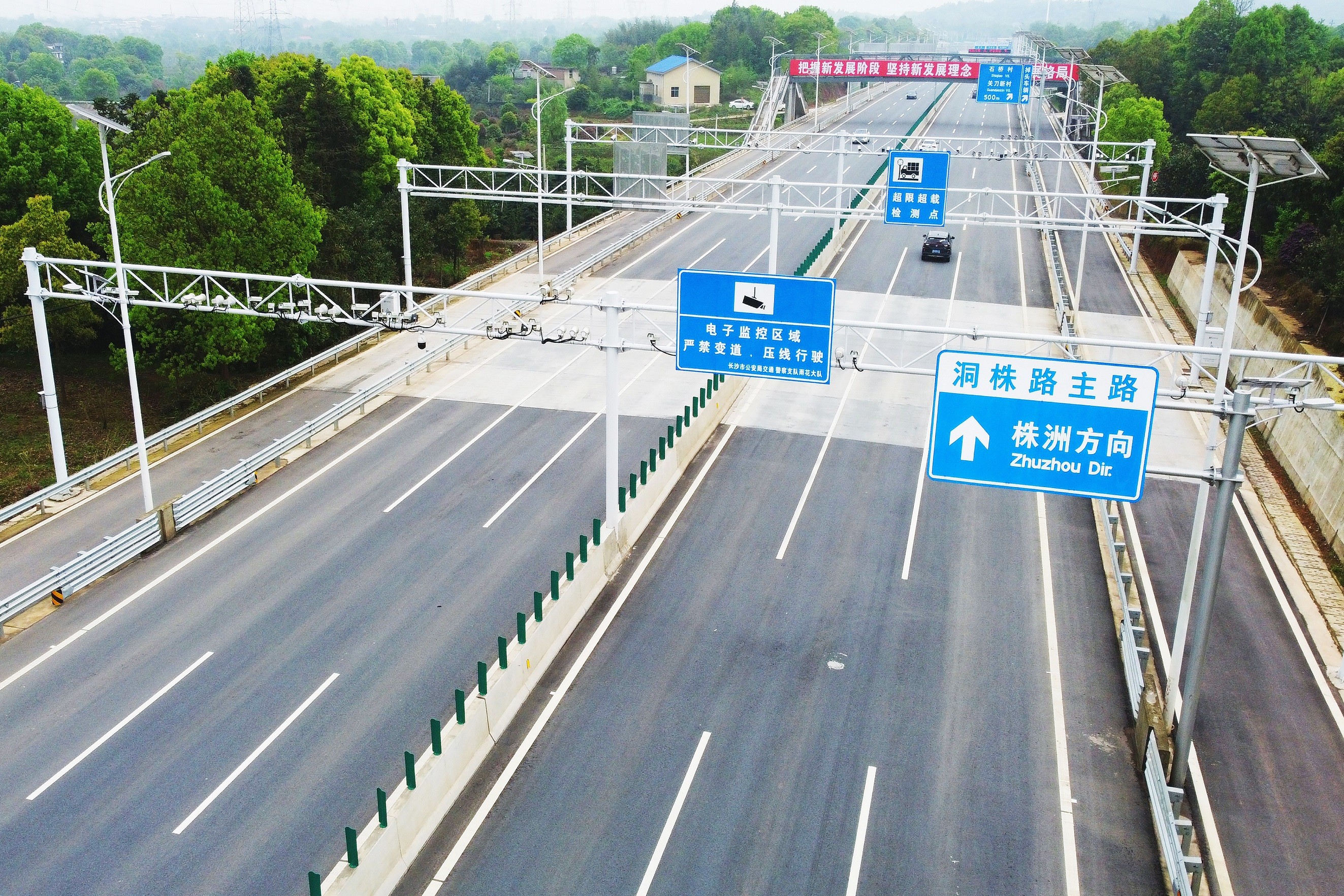

Project Case
