IP68 Highway High Speed Weigh In Motion Systems 60T Load IP68

Name: IP68 Highway High Speed Weigh In Motion Systems 60T Load IP68
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    Highway High Speed Weigh In Motion, High Speed Weigh In Motion IP68, weigh in motion systems 60T Load


Name:	High Speed Weight In Motion	Voltage:	AC 220V 50Hz
Weighing Accuracy:	90%~97%	Speed Range:	0.5~105km/h
Single Axle Load:	40T	Maximum Load:	60T (single Axle)
Division Value:	50kg	MTBF:	≥20000h
Working Temperature Range:	-45~+80℃	Protection Level:	IP68

Name:	High Speed Weight In Motion
Voltage:	AC 220V 50Hz
Weighing Accuracy:	90%~97%
Speed Range:	0.5~105km/h
Single Axle Load:	40T
Maximum Load:	60T (single Axle)
Division Value:	50kg
MTBF:	≥20000h
Working Temperature Range:	-45~+80℃
Protection Level:	IP68

Product Description

0.5~105km/H High Speed WIM System For Road Vehicle Management System

Product Function

System detection process:

a. The high-speed dynamic weighing system, license plate recognition system, led variable information board and computer system are in normal working state.

b. The vehicle passes through the high-speed weighing sensor, and the sensor signal is transmitted to the weighing instrument.

c. The weighing instrument processes and analyzes the sensor signal to obtain the total weight, axle weight, wheelbase and other data. Start the license plate recognition system to collect license plate data.

d. The vehicle weight data, license plate number and picture are transmitted to the upper computer through optical fiber and stored accordingly. The upper computer judges whether the vehicle exceeds the limit according to the system setting standard.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

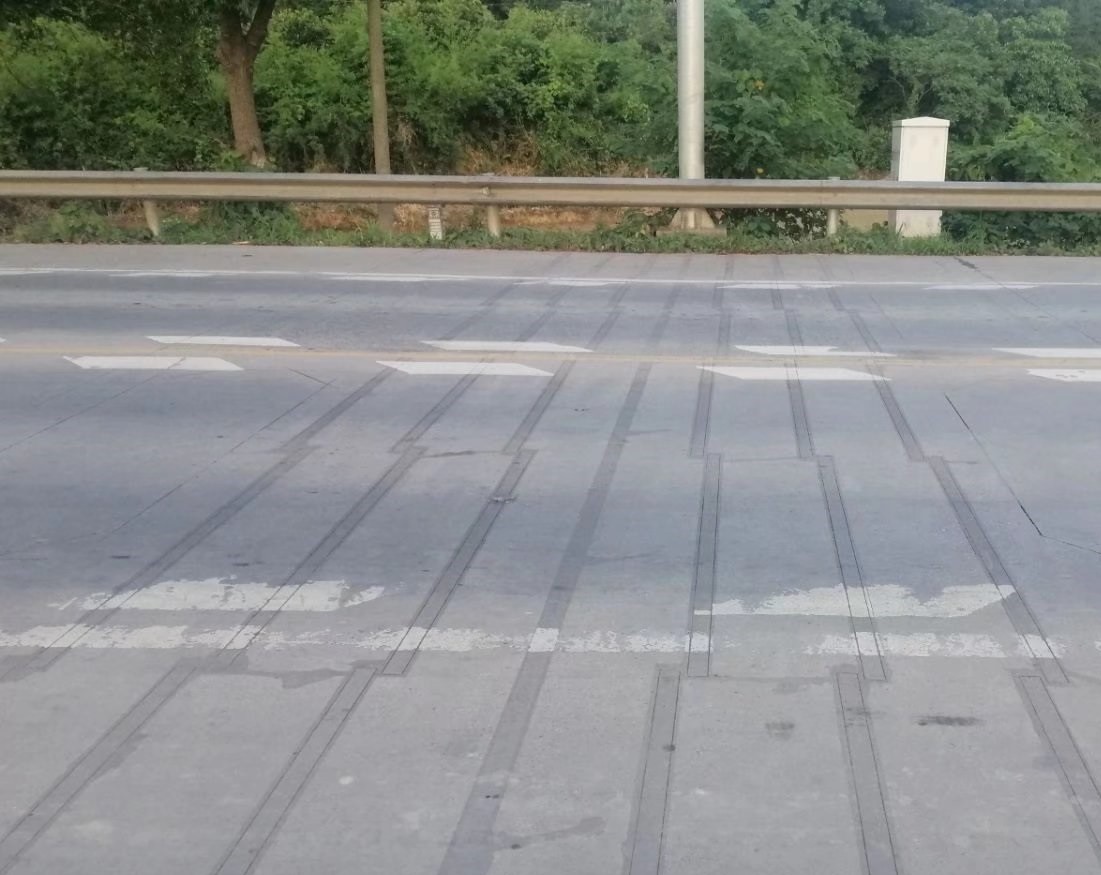

Project Case

IP68 Highway High Speed Weigh In Motion Systems 60T Load IP68 0
