Non Stop Bridge Weigh In Motion Truck Scales 40T Video Monitoring

Name: Non Stop Bridge Weigh In Motion Truck Scales 40T Video Monitoring
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    Non Stop Weigh In Motion Truck Scales, Weigh In Motion Truck Scales 40T, 40T Scale bridge weigh in motion


Name:	High Speed Weight In Motion	Power:	AC 220V
Weighing Accuracy:	90%~97%	Speed:	0.5~105km/h
Rated Load Of Single Axle:	40T	Maximum Overload Capacity:	60T (single Axle)
MTBF:	≥20000h	Temperature Range:	-45~+80℃
Protection Level:	IP68	Division Value:	50kg

Name:	High Speed Weight In Motion
Power:	AC 220V
Weighing Accuracy:	90%~97%
Speed:	0.5~105km/h
Rated Load Of Single Axle:	40T
Maximum Overload Capacity:	60T (single Axle)
MTBF:	≥20000h
Temperature Range:	-45~+80℃
Protection Level:	IP68
Division Value:	50kg

Product Description

Non Stop Dynamic Weighing Detection System Of 40T Truck Scales

Product Function

The non-stop dynamic weighing detection system is mainly composed of front-end system and station end system. Among them, the front-end system is mainly composed of dynamic weighing system, license plate capture system, information display and release system, video monitoring system and pre inspection control host system.

The station end system mainly includes station end communication software, business management software and upload communication software. It can complete the functions of front-end system information collection, alarm, management and upload.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

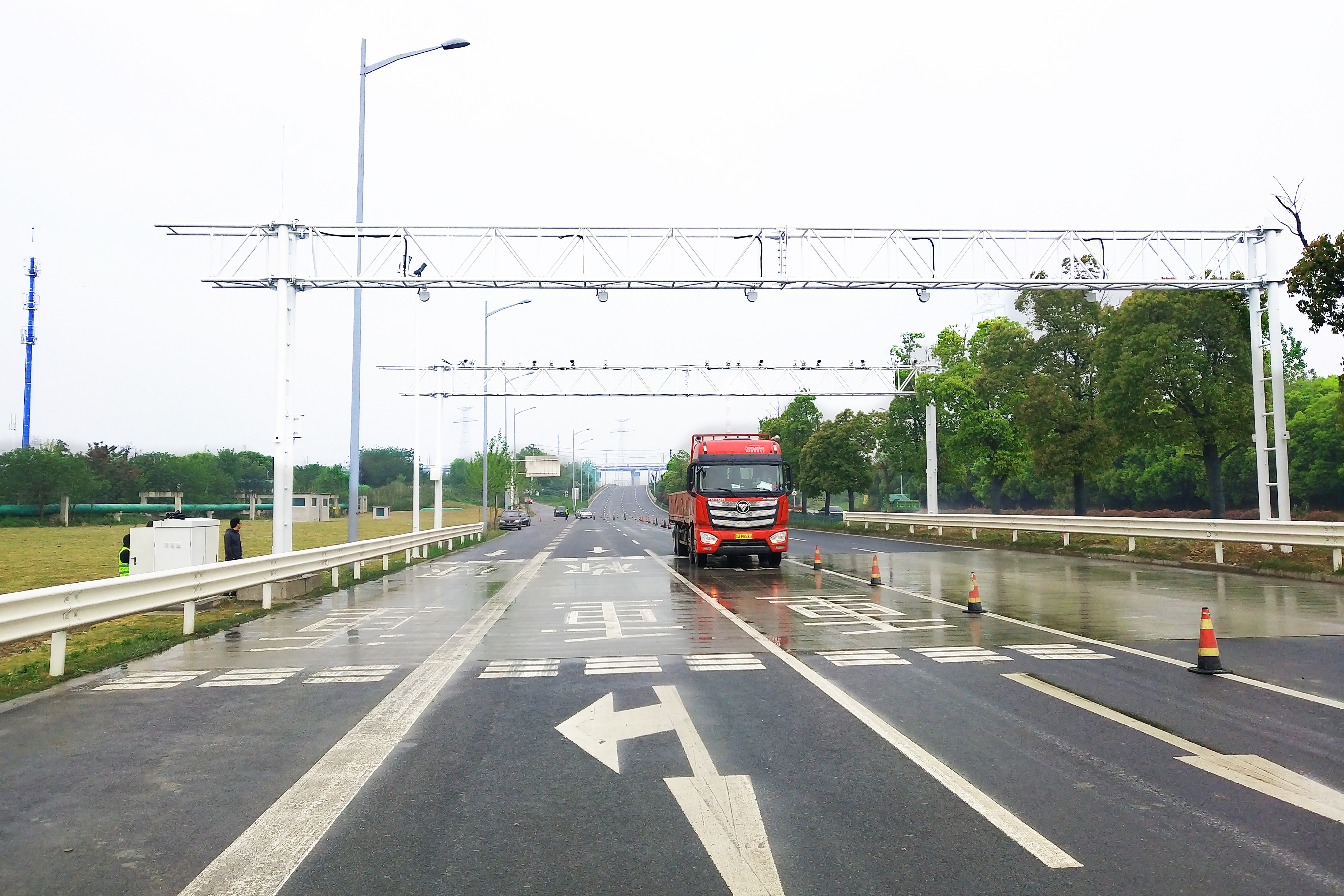

Project Case

Non Stop Bridge Weigh In Motion Truck Scales 40T Video Monitoring 0
