100km / H High Speed Weight In Motion System 220VAC Non Stop
| Place of Origin | Zhenghou`China |
|---|---|
| Brand Name | Hengliang |
| Certification | ISO |
| Model Number | ZQS-40-SY |
| Minimum Order Quantity | 1 SET |
| Price | USD 20000-35000/SET |
| Packaging Details | Wooden box |
| Delivery Time | 5~7days |
| Payment Terms | T/T |
| Supply Ability | 30 SET/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | High Speed Weight In Motion | Pwoer | 220VAC |
|---|---|---|---|
| Accuracy | 90%~97% | Speed RaTE | 0.5~100km/h |
| Single Axle Load | 40T | Single Axle Max Overload | 60T |
| MTBF | ≥20000h | Temperature Range | -45~+80℃ |
| Protection Level | IP68 | Confidence | ≥96% |
| Highlight | 220VAC High Speed Weight In Motion,100km / H High Speed Weight In Motion,Nonstop High Speed Weight In Motion |
||
Product Description
Speed Range 0.5-100km / H High Speed Non-Stop Weight In Motion System
Product Description
- It has the functions of collection, statistics and transmission of information required by highway traffic investigation stations. Upload the over limit evidence collection information to the municipal off-site law enforcement management system in real time. The security performance, stability, reliability and scalability of uploaded data meet the requirements.
- Waterproof and dust-proof measures shall be taken, with protection grade of IP68 (quartz sensor). Insulation resistance, safe grounding, lightning protection performance, electromagnetic compatibility and power supply adaptability meet the requirements.
- The communication interface and protocol meet the customization requirements. The forensics information of the highway over limit non stop detection point shall be uploaded in real time, and the bandwidth of the information transmission channel shall not be less than 20MBps. The network communication can automatically resume after the abnormal recovery.
Product Parameters
| Weighing accuracy | 90%~97% |
| Rated load | 40T (single axle) |
| Max Load | 60T (single axle) |
| Speed range | 0.5~100km/h； |
| Speed error | ≤±1km/h |
| Wheelbase error | ≤±100mm |
| Voltage | AC 220V 50Hz |
| Output information | Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time |
| Maximum number of lanes | 8 lanes |
| Data storage | It can store up to 10000 pieces of vehicle information data |
| Data interface | RJ485 |
| Work environment | -45℃～80℃,0～95% |
| Confidence | ≥96% |

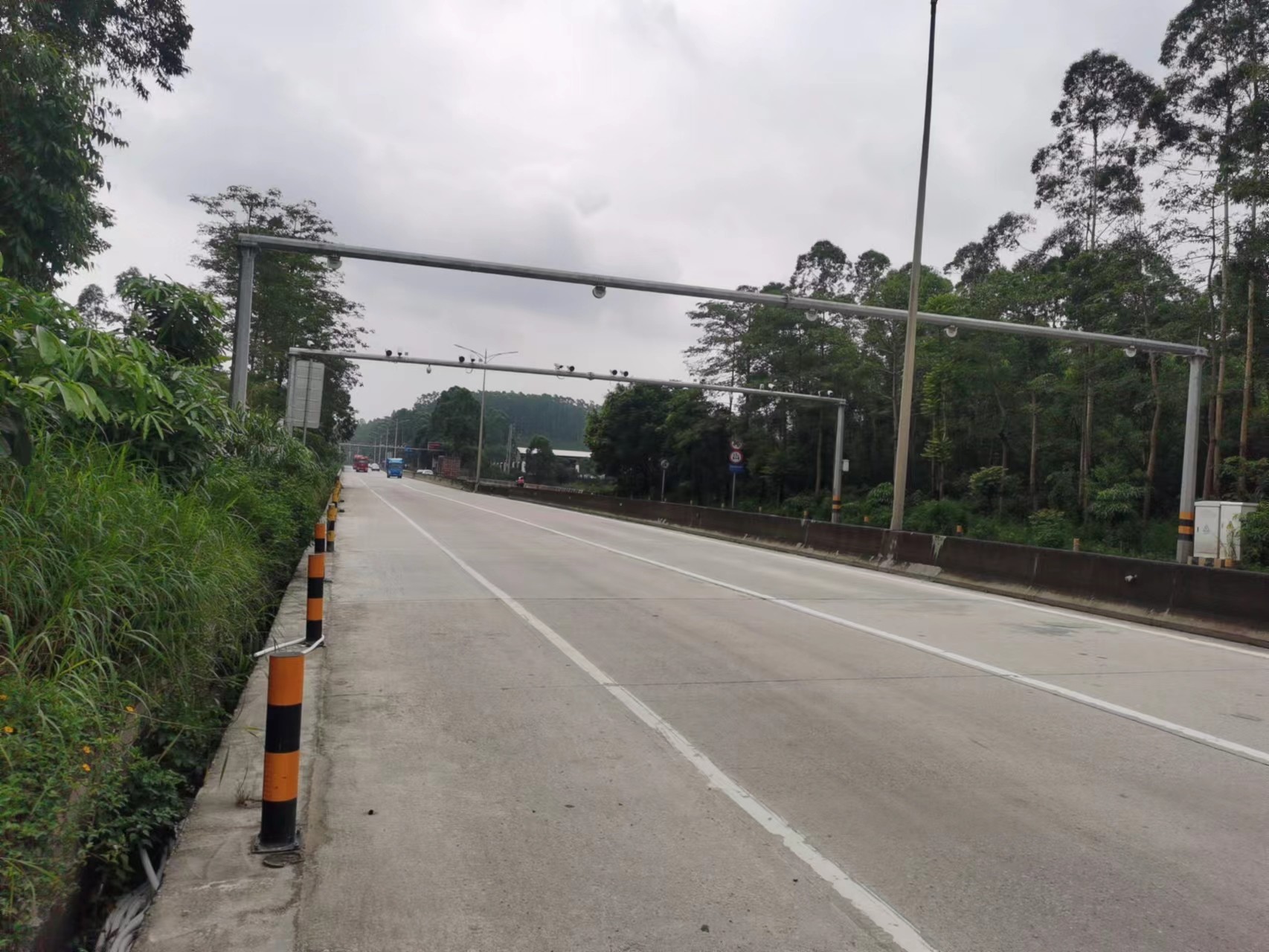

Project Case
