Dynamic Unattended Overload Weighing System 60T With High Concealment

Name: Dynamic Unattended Overload Weighing System 60T With High Concealment
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    Dynamic Unattended Overload Weighing System, 60T Overload Weighing System, High Concealment Overload Weighing System


Type:	High Speed Weight In Motion	Working Voltage:	220VAC
Accuracy:	90%~97%	Speed Range:	0.5~100km/h
Single Axle Load:	40T	Single Axle Max Overload:	60T
MTBF:	≥20000h	Temperature:	-45~+80℃
Protection Grade:	IP68	Confidence:	≥96%

Type:	High Speed Weight In Motion
Working Voltage:	220VAC
Accuracy:	90%~97%
Speed Range:	0.5~100km/h
Single Axle Load:	40T
Single Axle Max Overload:	60T
MTBF:	≥20000h
Temperature:	-45~+80℃
Protection Grade:	IP68
Confidence:	≥96%

Product Description

Dynamic Unattended Overload Weighing System With High Concealment

Product Description

Waterproof and dust-proof measures shall be taken, with protection grade of IP68 (quartz sensor). Insulation resistance, safe grounding, lightning protection performance, electromagnetic compatibility and power supply adaptability meet the requirements.
The communication interface and protocol meet the customization requirements. The forensics information of the highway over limit non stop detection point shall be uploaded in real time, and the bandwidth of the information transmission channel shall not be less than 20MBps. The network communication can automatically resume after the abnormal recovery.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40T
Single axle max Load	60T
Speed range	0.5~100km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

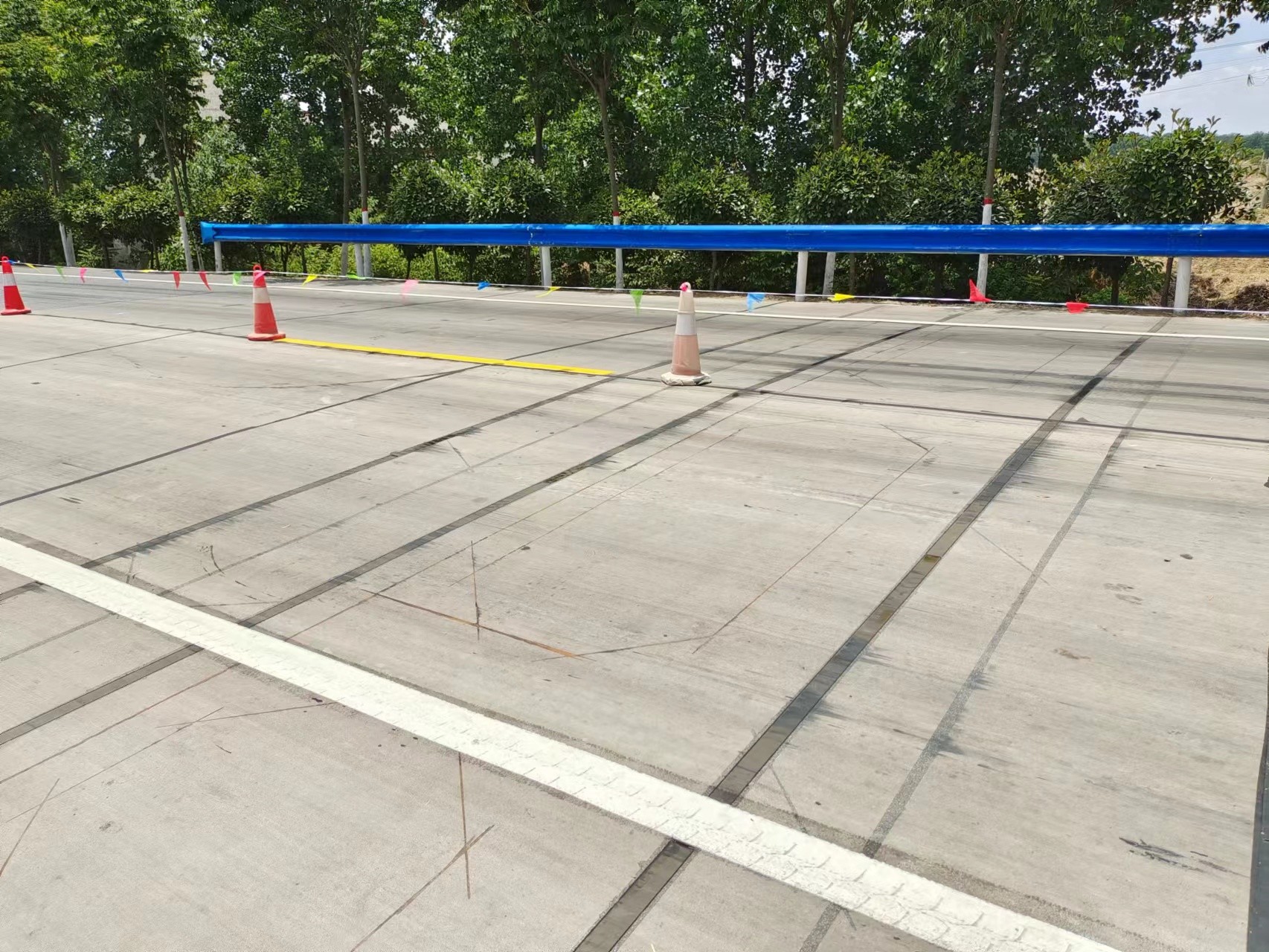

Project Case

Dynamic Unattended Overload Weighing System 60T With High Concealment 0
