Name: 80km / H IP68 High Speed Weight In Motion System Anti Cheating
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

80km / H IP68 High Speed Weight In Motion System Anti Cheating

Basic Information

Place of Origin:	Zhenghou`China
Brand Name:	Hengliang
Certification:	ISO
Model Number:	ZQS-40-SY

Minimum Order Quantity:	1 SET
Price:	USD 20000-35000/SET
Packaging Details:	Wooden box
Delivery Time:	5~7days
Payment Terms:	T/T
Supply Ability:	30 SET/Month

Get Best Price Contact Now

Detail Information

Name:	High Speed Weight In Motion	Working Voltage:	AC 220V
Weighing Accuracy:	90%~97%	Speed Range:	0.5~100km/h
Single Axle Load:	40T	Single Axle Max Overload:	60T
MTBF:	≥20000h	Temperature:	-45~+80℃
Protection Grade:	IP68	Confidence:	≥96%
Highlight:	IP68 High Speed Weight In Motion , 80km/H Weight In Motion System , Anti Cheating Weight In Motion System

Product Description

Anti Cheating 0.5-100km/H High Speed Weight In Motion System

Product Description

It has the functions of collection, statistics and transmission of information required by highway traffic investigation stations. Upload the over limit evidence collection information to the municipal off-site law enforcement management system in real time. The security performance, stability, reliability and scalability of uploaded data meet the requirements.
Waterproof and dust-proof measures shall be taken, with protection grade of IP68 (quartz sensor). Insulation resistance, safe grounding, lightning protection performance, electromagnetic compatibility and power supply adaptability meet the requirements.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Single axle max Load	60Ton
Speed	0.5~100km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

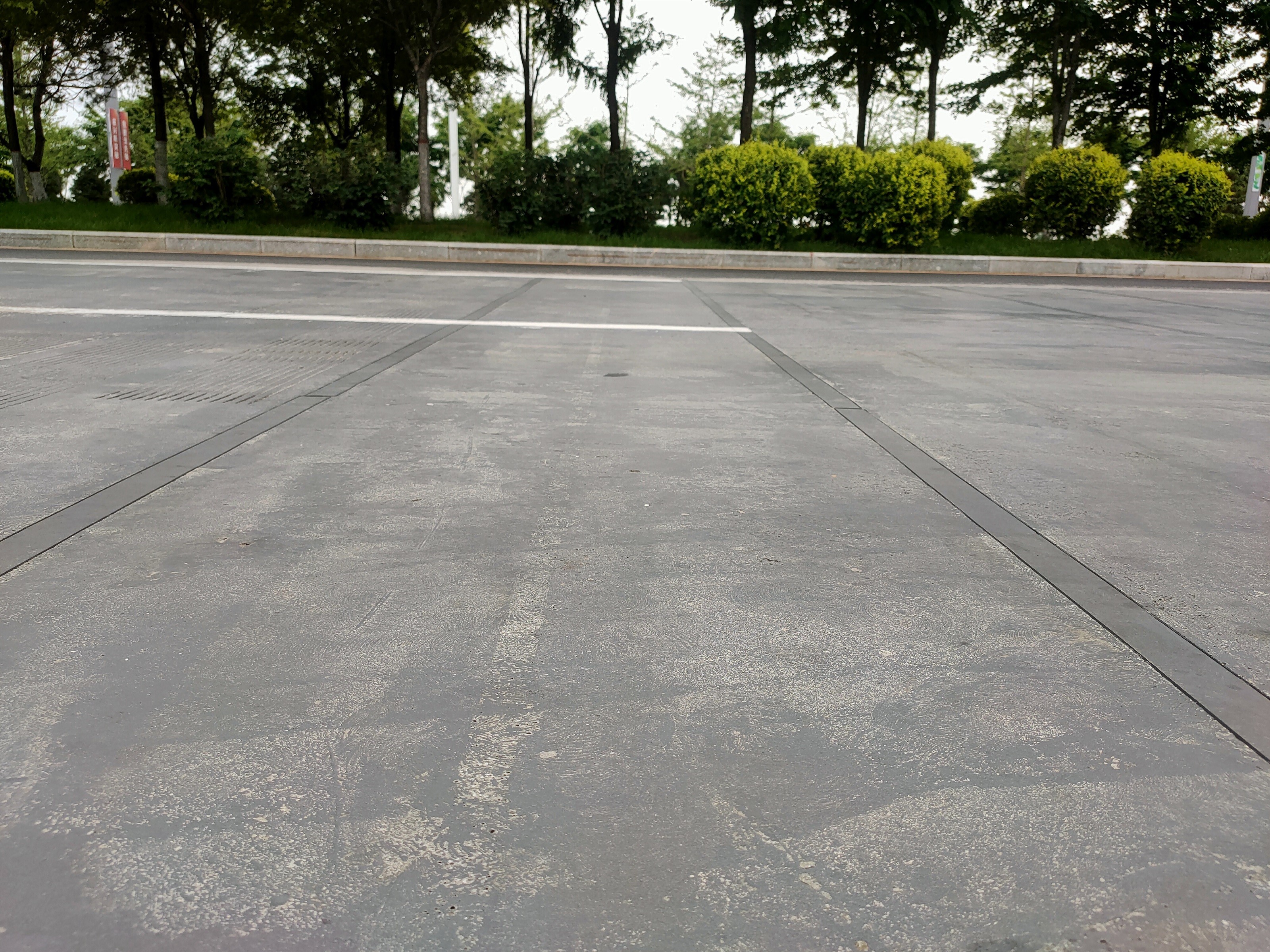

Project Case
