0.5-105km/H In Motion Axle Scales Road Overrun Management System
| Place of Origin | Zhenghou`China |
|---|---|
| Brand Name | Hengliang |
| Certification | ISO |
| Model Number | ZQS-40-SY |
| Minimum Order Quantity | 1 SET |
| Price | USD 20000-35000/SET |
| Packaging Details | Wooden box |
| Delivery Time | 5~7days |
| Payment Terms | T/T |
| Supply Ability | 30 SET/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | High Speed Weight In Motion | Working Voltage | AC 220V |
|---|---|---|---|
| Weighing Error | 3%~10% | Speed Range | 0.5~105km/h |
| Axle Load | 40Ton (single Axle) | Axle Max Overload | 60Ton (single Axle) |
| MTBF | ≥20000h | Temperature | -45~+80℃ |
| Highlight | 105km/H In Motion Axle Scales,0.5km/H In Motion Axle Scales,Road Overrun Management System |
||
Product Description
0.5-105km/H Speed Road Overrun Management System & In Motion Axle Scales
Product Description
- Road surface selection:The weighing area should not be set up in traffic congestion sections, bends, and cross slope relatively large sections; the mounting position of the front from the traffic light area not less than 600 meters, the distance behind the traffic light area not less than 200 meters; in general, lane longitudinal slope is less than 3%, cross slope is less than 2%.
- Pavement better for concrete surface, concrete mark not less than C40; (C40 means the cube compressive strength standard value of 40N/mm2)

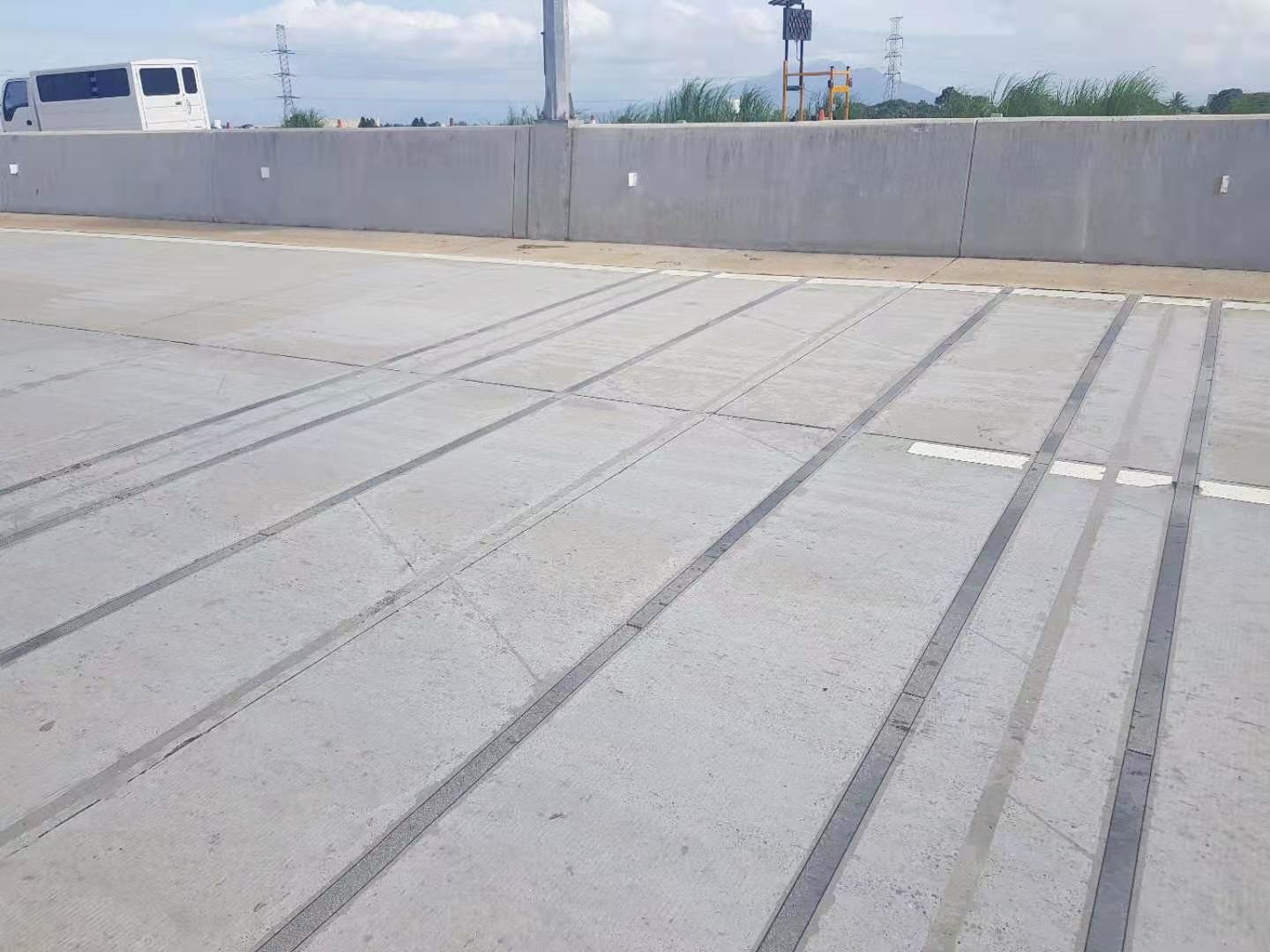

- Total length of the construction site is no less than 35 meters, the weighing area flatness error is less than ±3mm, so as to avoid the rough surface which may cause the vehicle bump from influencing the weighing accuracy, individual regional distribution as shown in the figure:
- After the completion of the construction, the road surface should be flat without concave and convex defects and weighing area flatness error is less than ±3mm.
Product Parameters
| Weighing accuracy | 90%~97% |
| Single axle load | 40Ton |
| Max Load | 60Ton |
| Speed | 0.5~105km/h； |
| Speed error | ≤±1km/h |
| Wheelbase error | ≤±100mm |
| Working voltage | AC 220V 50Hz |
| Output information | Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time |
| Maximum number of lanes | 8 lanes |
| Data storage | It can store up to 10000 pieces of vehicle information data |
| data interface | RJ485 |
| work environment | -45℃～80℃,0～95% |
| Confidence | ≥95% |
