Quartz High Speed Weigh In Motion System With High Waterproof Performance

Name: Quartz High Speed Weigh In Motion System With High Waterproof Performance
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                    High Speed Weigh In Motion System, Quartz High Speed Weigh In Motion, Waterproof High Speed Weigh In Motion


Name:	High Speed Weight In Motion	Working Voltage:	AC 220V
Weighing Error:	3%~10%	Speed:	0.5~105km/h
Axle Load:	40Ton (single Axle)	Single Axle Max Overload:	60Ton
MTBF:	≥20000h	Temperature:	-45~+80℃

Name:	High Speed Weight In Motion
Working Voltage:	AC 220V
Weighing Error:	3%~10%
Speed:	0.5~105km/h
Axle Load:	40Ton (single Axle)
Single Axle Max Overload:	60Ton
MTBF:	≥20000h
Temperature:	-45~+80℃

Product Description

Quartz Weighing System With High Waterproof Performance & Speed Rate 0.5-105km/H

Product Description

1.Quartz Sensor:
Quartz sensor is a kind of sensor using quartz piezoelectric effect to measure weight.Quartz sensor is consists of a number of quartz ranged closely and assemble in aluminum alloy cabinet in accordance with certain layout.

2.License Plate Recognition Camera:
To recognition of vehicle license plate

3.IPC:
A computer CPU, hard disk, internal memory, peripherals and interfaces, and with operating systems, control networks and protocols, computing power, friend interface

4.Charge Amplifier:
It collects charge of quartz weighing sensor and converted to voltage signal.

5.Weighing meter:
It analyzes charge amplifier input signal, and concludes axle, wheelbase,
axle speed, vehicle model, gross weight and other information.

6.Outdoor electrical cabinet:
With rain proof, shockproof, dustproof, antitheft and other functions, can effectively protect the safety of the outdoor electrical
equipment.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

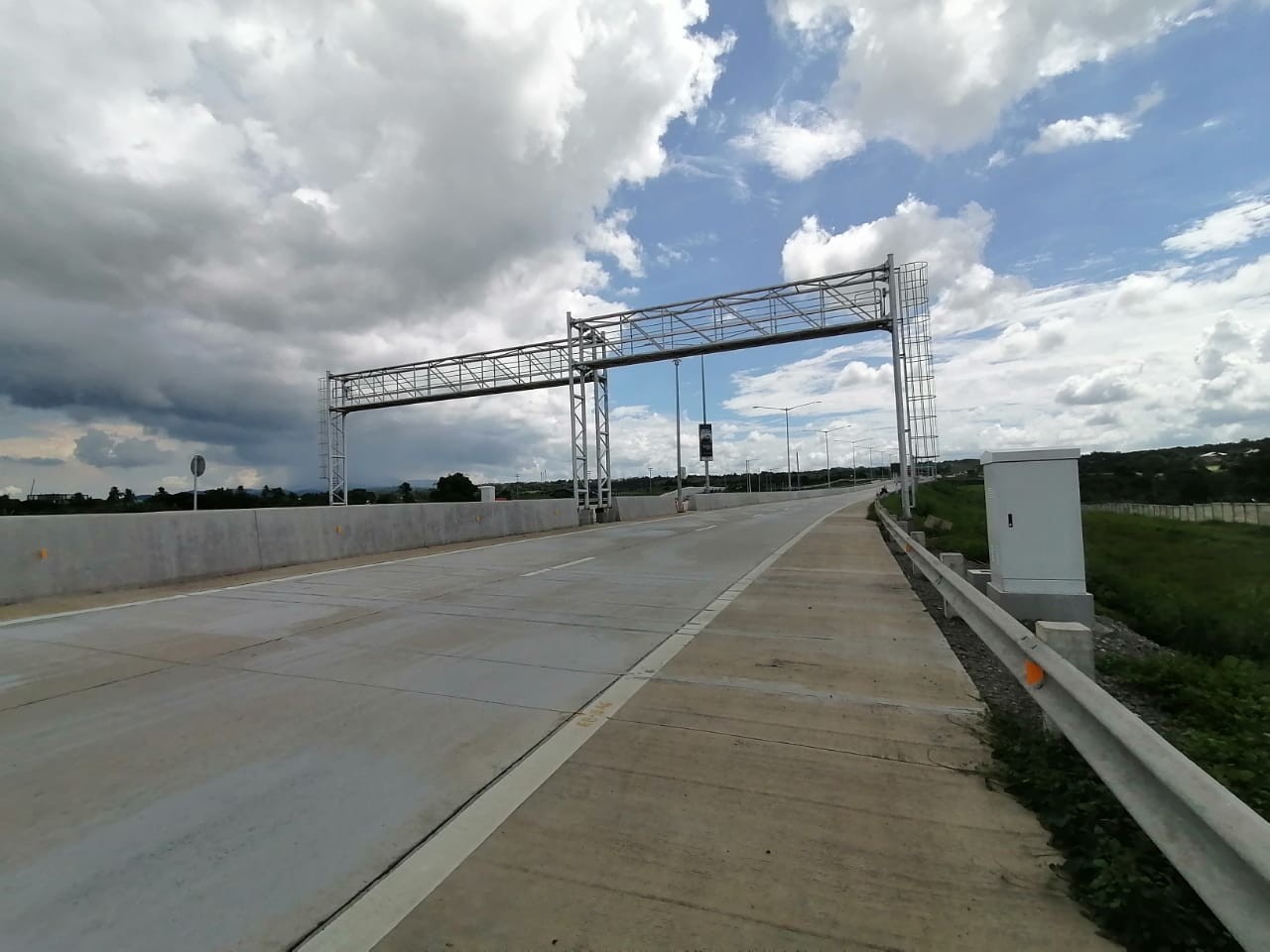

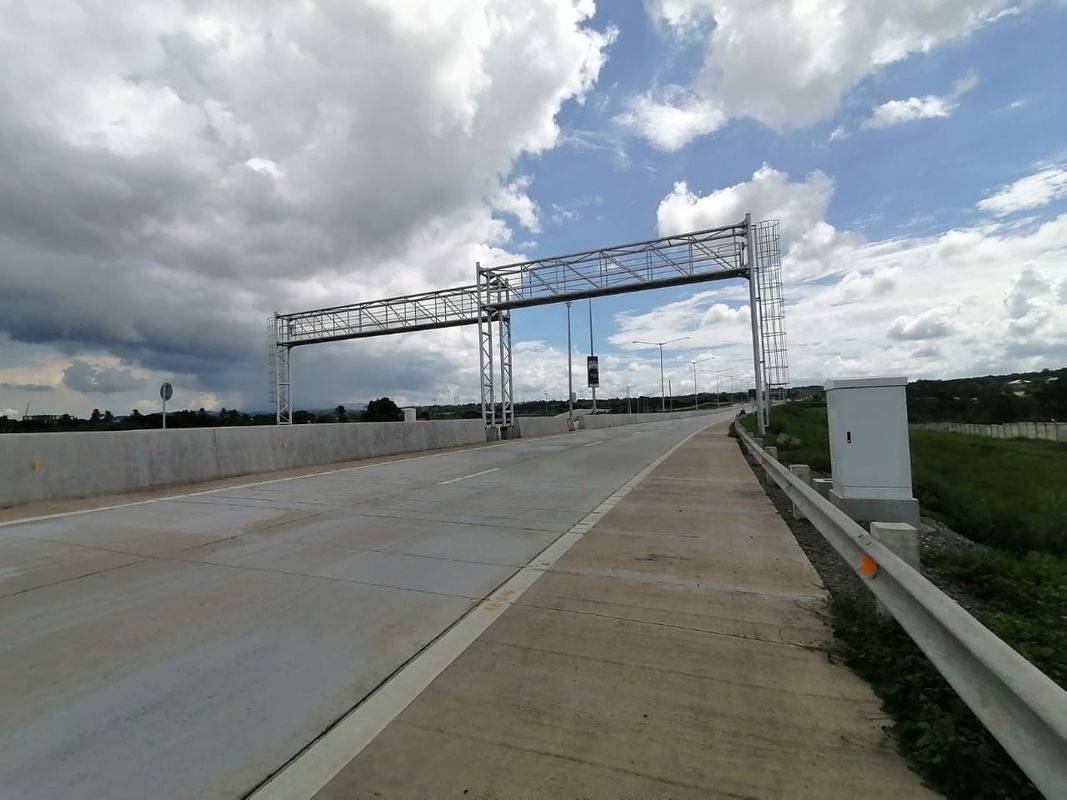

Project Case

Quartz High Speed Weigh In Motion System With High Waterproof Performance 0
