Name: Axle load 40T High Speed Weigh In Motion Small Road Damage
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Axle load 40T High Speed Weigh In Motion Small Road Damage

Basic Information

Place of Origin:	Zhenghou`China
Brand Name:	Hengliang
Certification:	ISO
Model Number:	ZQS-40-SY

Minimum Order Quantity:	1 SET
Price:	USD 20000-35000/SET
Packaging Details:	Wooden box
Delivery Time:	5~7days
Payment Terms:	T/T
Supply Ability:	30 SET/Month

Get Best Price Contact Now

Detail Information

Type:	High Speed Weight In Motion	Power:	AC 220V 50Hz
Weighing Error:	3%~10%	Speed:	0.5~105km/h
Axle Load:	40T (single Axle)	Single Axle Max Overload:	60T
MTBF:	≥20000h	Temperature:	-45~+80℃
Highlight:	40T High Speed Weigh In Motion , Axle High Speed Weigh In Motion , 40T in motion truck scales

Product Description

Quartz Weighing Sensor With Small Road Damage & Weigh In Motion System

Product Description

Dynamic weighing accurately and with stable performance
Great linearity and repeatability ensure accurate weighing stability, at the same time, the unique cutting technology and unique sensor structure
determines the insensitive from lateral force, therefore, even the vehicle brake, accelerate, change direction etc when passes through the sensor will not affect the accuracy of the system.
Small in size, easy to be hidden
Small in size, after the installation, it formed integrally with the road, so that the driver is difficult to accurately determine its location, and cannot S bypass or do other cheating behavior.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

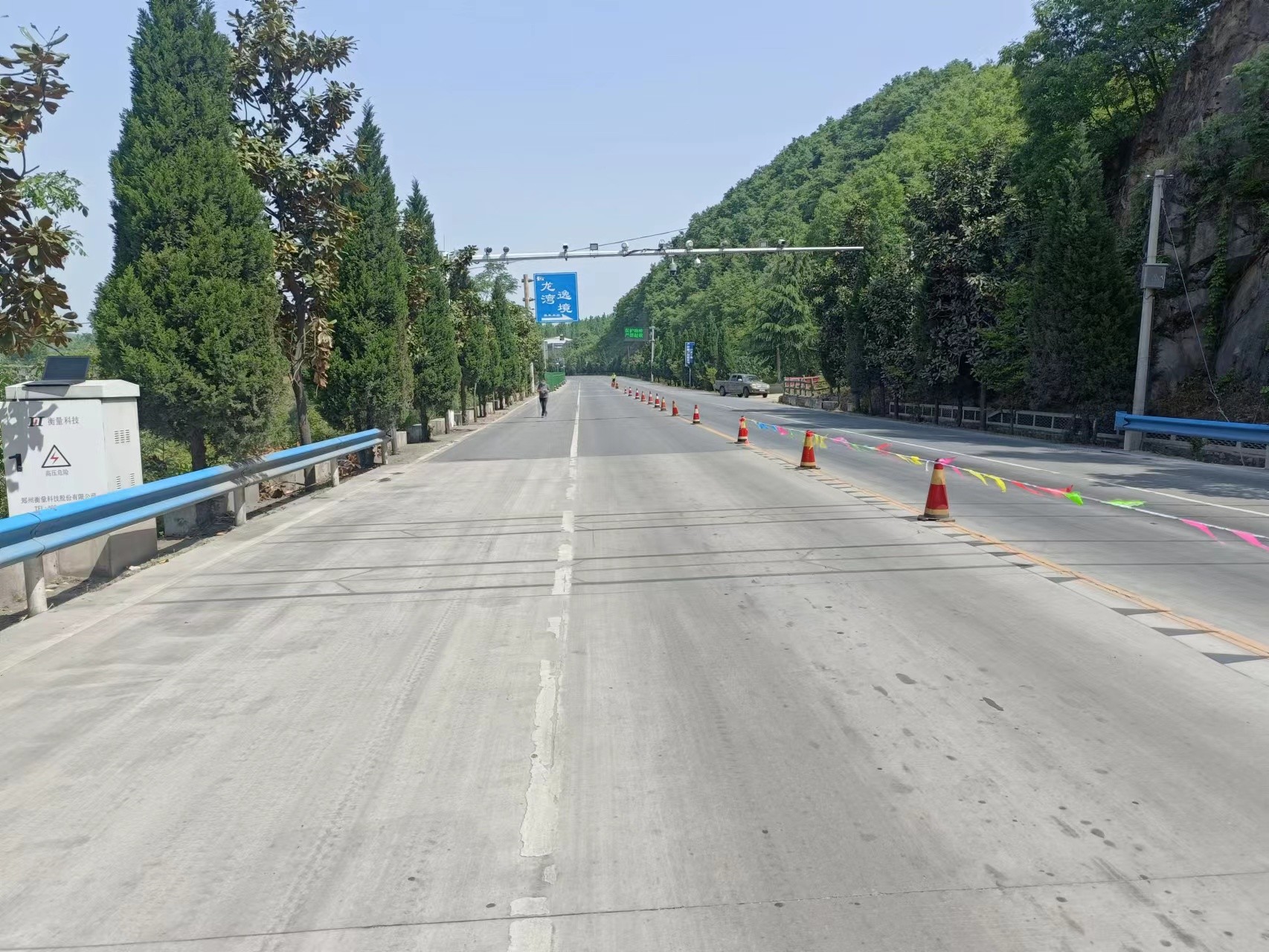

Project Case
