High Speed Dynamic Weighing System Without Drainage & 0.5-105km/Hr
| Place of Origin | Zhenghou`China |
|---|---|
| Brand Name | Hengliang |
| Certification | ISO |
| Model Number | ZQS-40-SY |
| Minimum Order Quantity | 1 SET |
| Price | USD 20000-35000/SET |
| Packaging Details | Wooden box |
| Delivery Time | 5~7days |
| Payment Terms | T/T |
| Supply Ability | 30 SET/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | WIM System | Power | AC 220V |
|---|---|---|---|
| Error | 3%~10% | Speed | 0.5~105km/h |
| Axle Load | 40T (single Axle) | Single Axle Max Overload | 60T |
| MTBF | ≥20000h | Temperature | -45~+80℃ |
| Highlight | High Speed Dynamic Weighing System,Dynamic Weighing System Without Drainage,105km/Hr Dynamic Weighing System |
||
Product Description
High Speed Dynamic Weighing System Without Drainage & 0.5-105km/H
Product Description
- Effective dynamic testing, wider speed range
It with great rigidity, no deformation under load, with high frequency response, can accurately measure the rapidly changing dynamic loads. The speed range of effective vehicle pass through is 5~200km/h, able to ensure the same weighing accuracy even when the speed change. - Wider range of temperature adaptation
Rinse temperature coefficient is only 0.02%, temperature changes little effect weighing accuracy, and no need calibration due to season and temperature changes, can still ensure measurement accuracy in a variety of harsh environment, saving time and effort.
Product Parameters
| Weighing accuracy | 90%~97% |
| Single axle load | 40Ton |
| Max Load | 60Ton |
| Speed | 0.5~105km/h； |
| Speed error | ≤±1km/h |
| Wheelbase error | ≤±100mm |
| Working voltage | AC 220V 50Hz |
| Output information | Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time |
| Maximum number of lanes | 8 lanes |
| Data storage | It can store up to 10000 pieces of vehicle information data |
| data interface | RJ485 |
| work environment | -45℃～80℃,0～95% |
| Confidence | ≥95% |

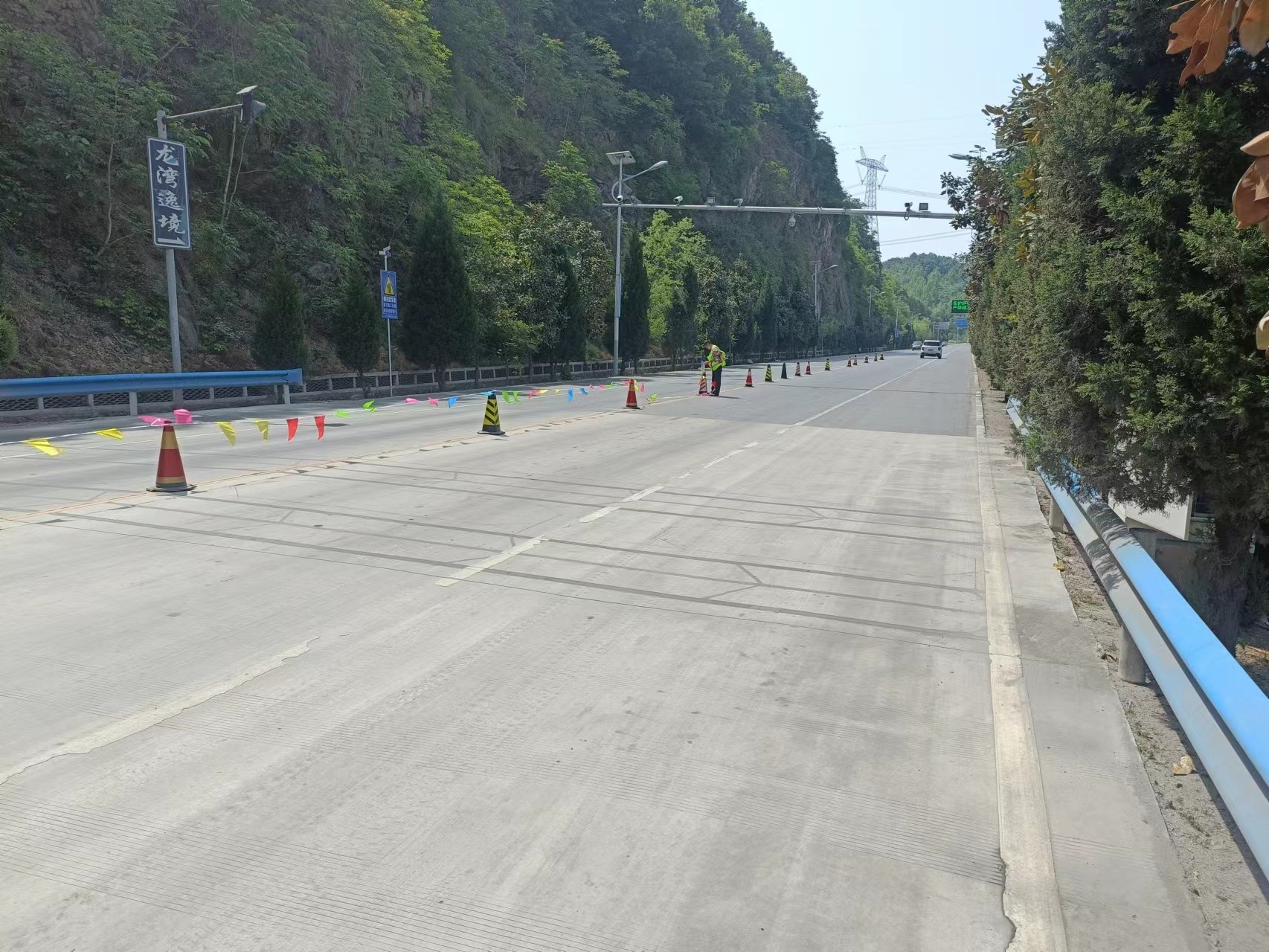

Project Case
