Name: High Speed Dynamic Weighing System Without Drainage & 0.5-105km/Hr
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

High Speed Dynamic Weighing System Without Drainage & 0.5-105km/Hr

Basic Information

Place of Origin:	Zhenghou`China
Brand Name:	Hengliang
Certification:	ISO
Model Number:	ZQS-40-SY

Minimum Order Quantity:	1 SET
Price:	USD 20000-35000/SET
Packaging Details:	Wooden box
Delivery Time:	5~7days
Payment Terms:	T/T
Supply Ability:	30 SET/Month

Get Best Price Contact Now

Detail Information

Type:	WIM System	Power:	AC 220V
Error:	3%~10%	Speed:	0.5~105km/h
Axle Load:	40T (single Axle)	Single Axle Max Overload:	60T
MTBF:	≥20000h	Temperature:	-45~+80℃
Highlight:	High Speed Dynamic Weighing System , Dynamic Weighing System Without Drainage , 105km/Hr Dynamic Weighing System

Product Description

High Speed Dynamic Weighing System Without Drainage & 0.5-105km/H

Product Description

Effective dynamic testing, wider speed range
It with great rigidity, no deformation under load, with high frequency response, can accurately measure the rapidly changing dynamic loads. The speed range of effective vehicle pass through is 5~200km/h, able to ensure the same weighing accuracy even when the speed change.
Wider range of temperature adaptation
Rinse temperature coefficient is only 0.02%, temperature changes little effect weighing accuracy, and no need calibration due to season and temperature changes, can still ensure measurement accuracy in a variety of harsh environment, saving time and effort.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

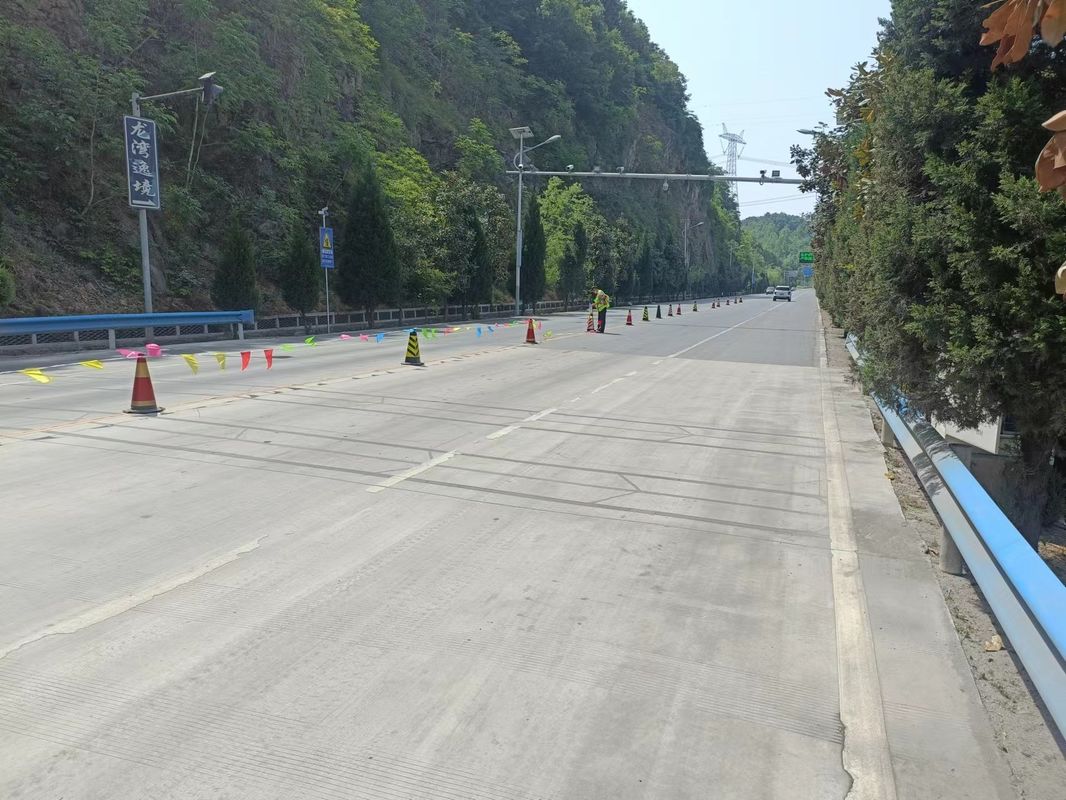

Project Case
