High Response Frequency High Speed Weigh In Motion 40000kg Dynamic Weighing System

Name: High Response Frequency High Speed Weigh In Motion 40000kg Dynamic Weighing System
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    40000kg High Speed Weigh In Motion, Dynamic High Speed Weigh In Motion, 40000kg Dynamic Weighing System


Name:	High Speed Weight In Motion	Voltage:	AC 220V
Weighing Error:	3%~10%	Speed Rate:	0.5~105km/h
Rated Load Of Single Axle:	40000kg	Maximum Overload Capacity:	60000kg (single Axle)
Division Value:	50kg	MTBF:	≥20000h
Temperature:	-45~+80℃	Protection Level:	IP68

Name:	High Speed Weight In Motion
Voltage:	AC 220V
Weighing Error:	3%~10%
Speed Rate:	0.5~105km/h
Rated Load Of Single Axle:	40000kg
Maximum Overload Capacity:	60000kg (single Axle)
Division Value:	50kg
MTBF:	≥20000h
Temperature:	-45~+80℃
Protection Level:	IP68

Product Description

High Response Frequency Dynamic Weighing System & High Speed WIM Scales

Product Function

1.1 the system can automatically complete the real-time and rapid detection of vehicle axle number, single axle load or axle group load and total vehicle and cargo mass, and output the detection results.

1.2 weighing speed range: (0.5 ~ 105) km / h.

1.3 load capacity (uniaxial): 40t; Overload capacity (single shaft) ≥ 150%.

1.4 vehicle separator: it can accurately separate freight vehicles, and the vehicles are consistent with the test data. The detection error of axle spacing is ≤± 15cm, and the cross lane recognition rate is ≥ 95%.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

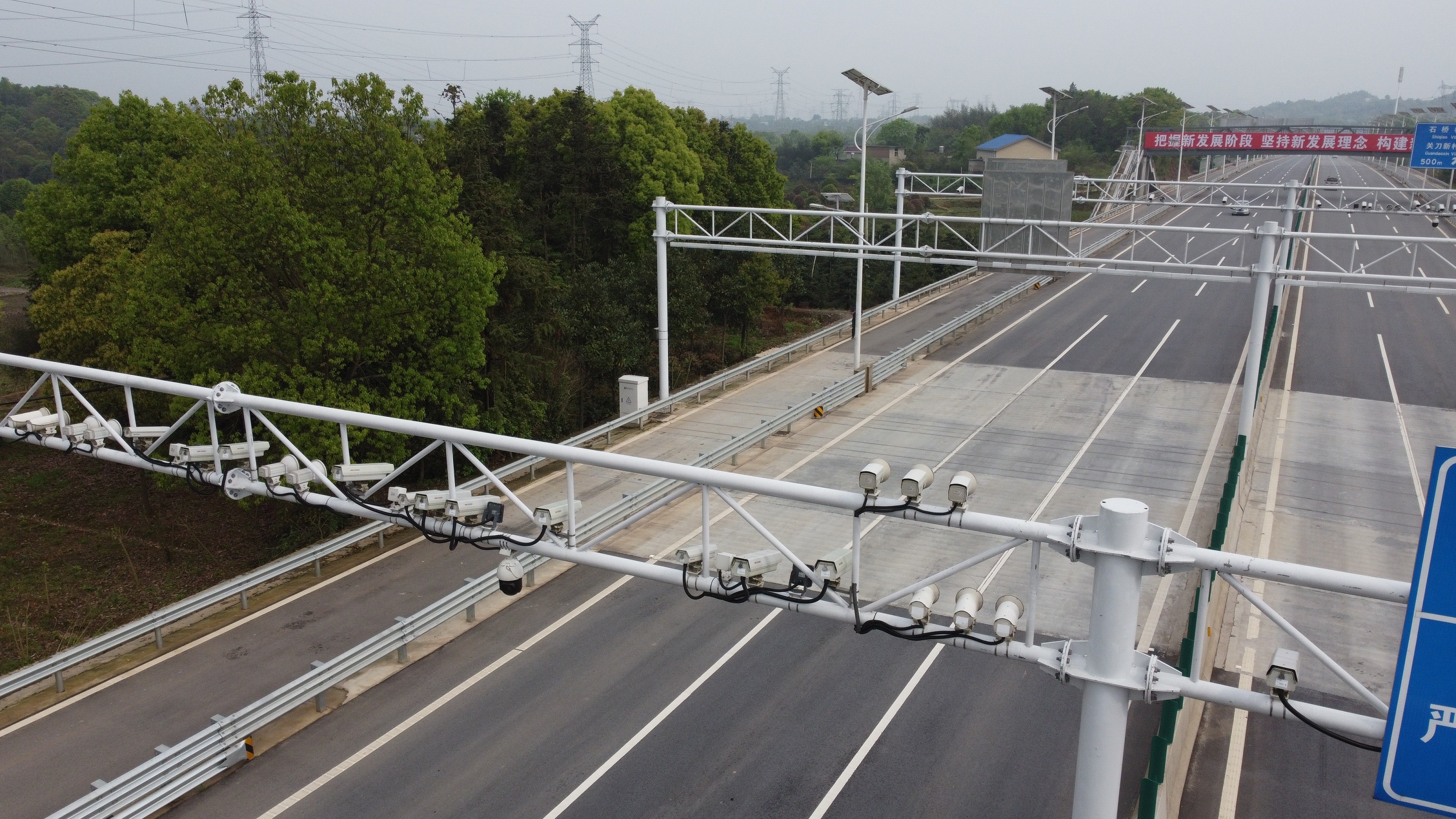

Project Case

High Response Frequency High Speed Weigh In Motion 40000kg Dynamic Weighing System 0
