High Speed 0.5-105km/H Quartz Sensor Weighing System & WIM Scales

Basic Information
Place of Origin: Zhenghou`China
Brand Name: Hengliang
Certification: ISO
Model Number: ZQS-40-SY
Minimum Order Quantity: 1 SET
Price: USD 20000-35000/SET
Packaging Details: Wooden box
Delivery Time: 5~7days
Payment Terms: T/T
Supply Ability: 30 SET/Month
Detail Information
Name: High Speed Weigh In Motion Voltage: AC 220V
Weighing Accuracy: 90%~97% Speed Range: 0.5~105km/h
Single Axle Load: 40T Max Overload: 60T (single Axle)
MTBF: ≥20000h Temperature: -45~+80℃
Highlight:

105km/H Quartz Sensor Weighing System

,

High Speed Quartz Sensor Weighing System

,

105km/H WIM Scales


Product Description

High Speed 0.5-105km/H Quartz Sensor Weighing System & WIM Scales

Product Description

The data of the overload control information management system can be connected with the information platforms of the Ministry of transport, public security traffic management department, road transportation management department, economic and information department, industrial and commercial administration department, safety supervision department and quality supervision department to realize information sharing and information copying. Through data exchange, multi department joint law enforcement and collaborative processing of illegal and out of gauge vehicles can be realized.





Product Parameters

Weighing accuracy 90%~97%
Single axle load 40Ton
Max Load 60Ton
Speed 0.5~105km/h;
Speed error ≤±1km/h
Wheelbase error ≤±100mm
Working voltage AC 220V 50Hz
Output information Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes 8 lanes
Data storage It can store up to 10000 pieces of vehicle information data
data interface RJ485
work environment -45℃~80℃,0~95%
Confidence ≥95%

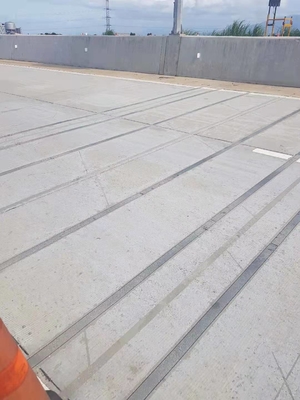

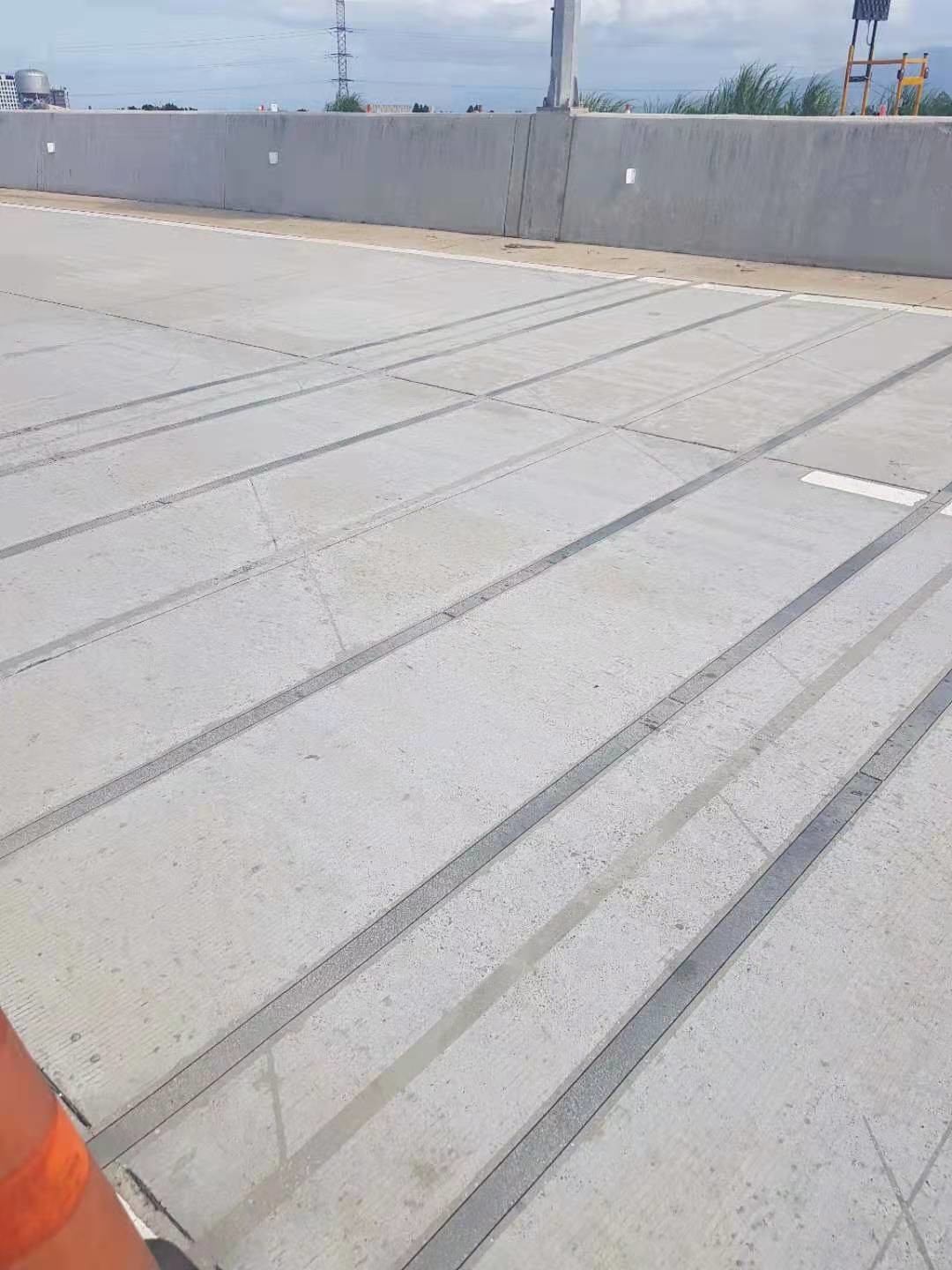

Project Case

High Speed 0.5-105km/H Quartz Sensor Weighing System & WIM Scales 0
