97% High Precision WIM Scales Vehicle Overload Identification Truck Weigh In Motion

Name: 97% High Precision WIM Scales Vehicle Overload Identification Truck Weigh In Motion
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    97% High Precision WIM Scales, Overload Identification truck weigh in motion, 97% Precision Truck Weigh In Motion


Type:	WIM Scales	Power:	AC 220V 50Hz
Weigh Accuracy:	90%~97%	Speed Range:	0.5~105km/h
Axle Load:	40T (single Axle)	Max Load:	60T (single Axle)
Division Value:	50kg	MTBF:	≥20000h
Temperature Range:	-45~+80℃	Protection Grade:	IP68

Type:	WIM Scales
Power:	AC 220V 50Hz
Weigh Accuracy:	90%~97%
Speed Range:	0.5~105km/h
Axle Load:	40T (single Axle)
Max Load:	60T (single Axle)
Division Value:	50kg
MTBF:	≥20000h
Temperature Range:	-45~+80℃
Protection Grade:	IP68

Product Description

High Precision Vehicle Overload Identification System & WIM Scales

Product Function

The core component of the system is the quartz weighing sensor, which is based on the piezoelectric principle. The measurement process does not depend on deformation or elastomer. The whole sensor is a completely rigid structure with a response time of μ Class s (strain is MS), so there is no influence and error caused by high and low speed in application, which can meet the needs of high-speed weighing and measurement.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

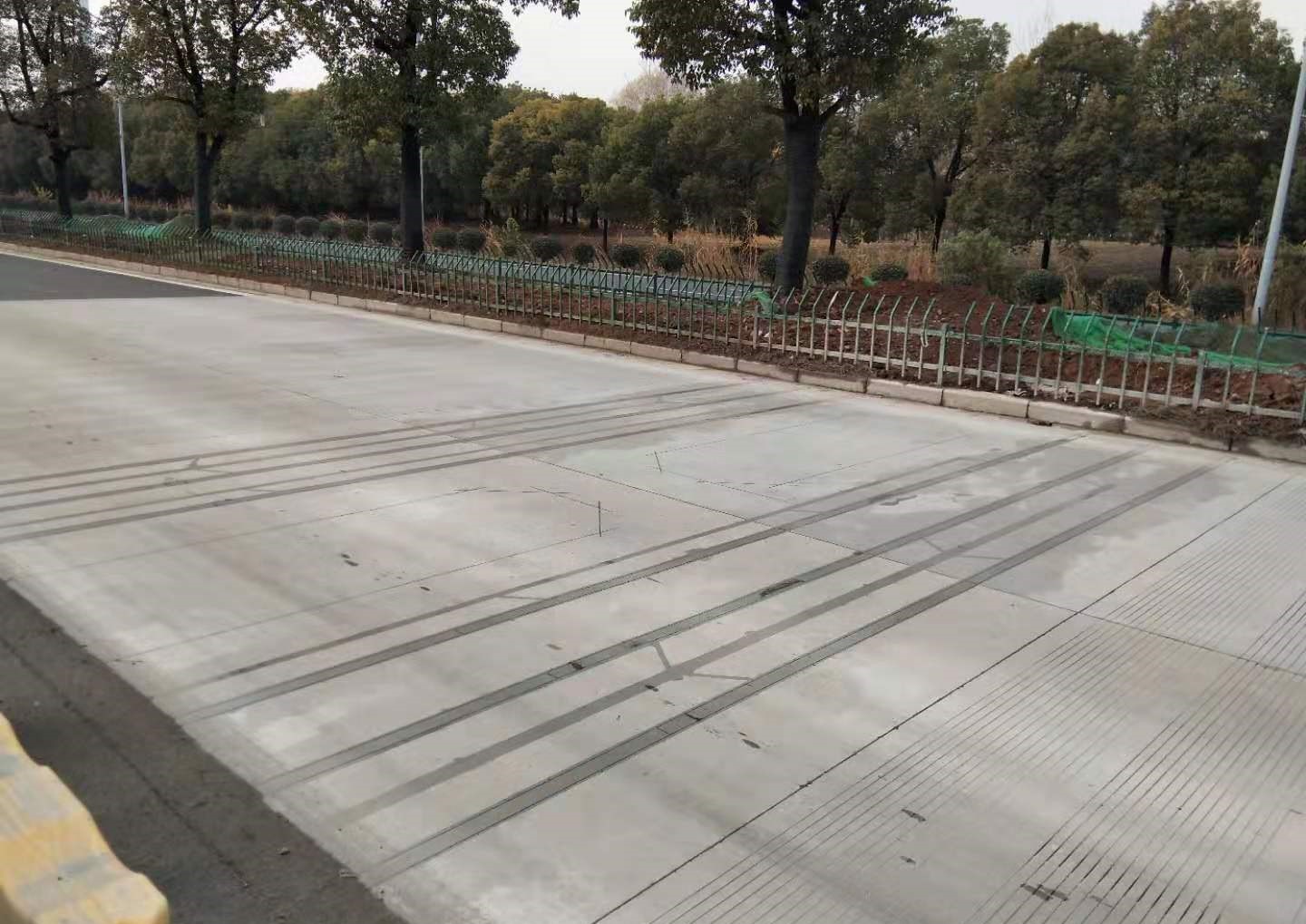

Project Case

97% High Precision WIM Scales Vehicle Overload Identification Truck Weigh In Motion 0
