97% Accuracy bridge Weigh In Motion Truck Scales 20000h MTBF

Name: 97% Accuracy bridge Weigh In Motion Truck Scales 20000h MTBF
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    97% Accuracy Weigh In Motion Truck Scales, bridge weigh in motion 20000h MTBF, 97% Accuracy bridge weigh in motion


Type:	Weigh In Motion Truck Scale	Working Voltage:	AC 110V~220V
Weighing Accuracy:	90%~97%	Speed:	0.5~105km/h
Single Axle Load:	40000kg	Max Single Axle Load:	60000kg
Division Value:	50kg	MTBF:	≥20000h
Temperature Range:	-45~+80℃	Protection Level:	IP68

Type:	Weigh In Motion Truck Scale
Working Voltage:	AC 110V~220V
Weighing Accuracy:	90%~97%
Speed:	0.5~105km/h
Single Axle Load:	40000kg
Max Single Axle Load:	60000kg
Division Value:	50kg
MTBF:	≥20000h
Temperature Range:	-45~+80℃
Protection Level:	IP68

Product Description

High Precision Vehicle Overload Management System & Max Single Axle 60T

Product Function

The system is divided into three parts according to its function, the dynamic weighing and speed measuring part, the vehicle license plate recognition part and the PC software part. According to the working spots, high-speed pre-detection monitoring station, sub-center, and provincial center (optional) these three parts are divided.

Sub-center as a data server provider, can storage and manage for the large capacity data. Highway preview sub-center management system is a part of the PC software system, through this management software can conduct remote management for multiple testing sites, and can detect high speed site equipment’s running state. Through the function of real-time display, retrieval, analysis, tabulated car record, can provide data interface to the third party system and convenience for data access and extract.

As the most top level of the high-speed preview internet of things system, provincial center collect the provincial data. It can manage multiple sub-centers, simultaneous searching multiple data servers, and to a large number of car data for intelligent analysis. High-speed preview province center management system, belongs to the PC software system too, user can selectively installed according to requirements.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

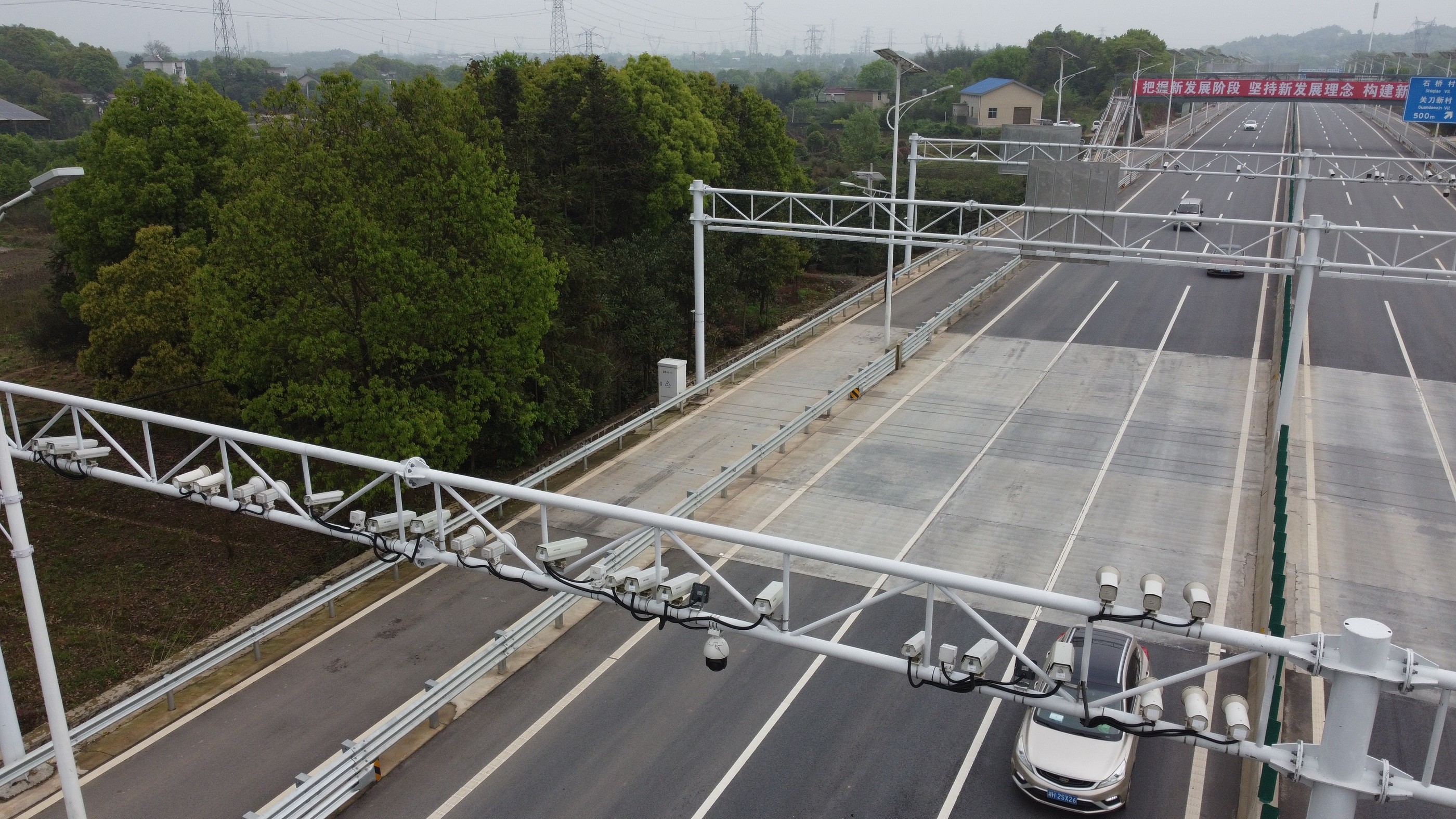

Project Case

97% Accuracy bridge Weigh In Motion Truck Scales 20000h MTBF 0
