High Accuracy 90%-97% Truck Weigh In Motion Scales Single Axle 40T
| Place of Origin | Zhenghou`China |
|---|---|
| Brand Name | Hengliang |
| Certification | ISO |
| Model Number | ZQS-40-SY |
| Minimum Order Quantity | 1 SET |
| Price | USD 20000-35000/SET |
| Packaging Details | Wooden box |
| Delivery Time | 5~7days |
| Payment Terms | T/T |
| Supply Ability | 30 SET/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Weigh In Motion Truck Scale | Working Woltage | AC 220V |
|---|---|---|---|
| Weighing Error | 3%~10% | Speed Rate | 0.5~105km/h |
| Single Axle Load | 40T | Max Single Axle Load | 60T |
| Division Value | 50kg | MTBF | ≥20000h |
| Working Temperature Range | -45~+80℃ | Protection Grade | IP68 |
| Highlight | 40T Truck Weigh In Motion Scales,97% Accuracy weigh in motion scales,97% Accuracy Truck Weigh In Motion |
||
Product Description
High Accuracy 90%~97% Dynamic Truck Scales & Single Axle 40T
Product Function
Basic principle of overrun detection: the tested vehicle first passes through the pre inspection system, and the system load cell will pre inspect the vehicle axle load and vehicle passing state and transmit it to the data collector. The data collector will analyze and process the above information to form a complete vehicle information. It includes: detecting the axle weight of the vehicle, the cumulative total weight of the vehicle, the passing speed of the vehicle, the wheelbase of the vehicle, the vehicle model and whether the vehicle passes. When the detected vehicle passes completely, the system transmits the collected vehicle information to the control host in real time. The control host receives the data of the license plate recognition system and matches the weight information to form a complete vehicle information, which is stored locally and uploaded at the same time. The communication machine judges whether the vehicle exceeds the limit according to the axle load and total weight limit entered in advance. Once it is found that there is a suspicion of exceeding the limit, it will prompt the suspected vehicle.
Product Parameters
| Weighing accuracy | 90%~97% |
| Single axle load | 40Ton |
| Max Load | 60Ton |
| Speed | 0.5~105km/h； |
| Speed error | ≤±1km/h |
| Wheelbase error | ≤±100mm |
| Working voltage | AC 220V 50Hz |
| Output information | Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time |
| Maximum number of lanes | 8 lanes |
| Data storage | It can store up to 10000 pieces of vehicle information data |
| data interface | RJ485 |
| work environment | -45℃～80℃,0～95% |
| Confidence | ≥95% |

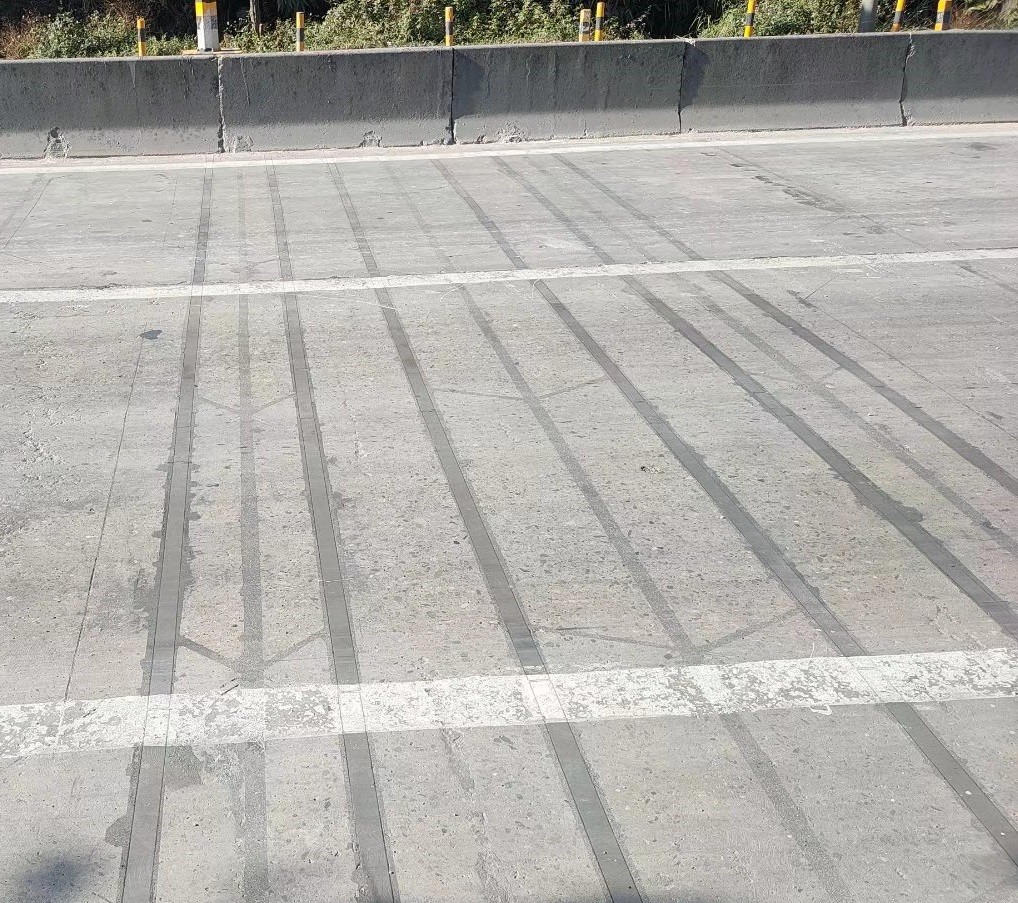

Project Case
