Unattended Weigh In Motion Systems Wim For Toll Station Highway Vehicle

Name: Unattended Weigh In Motion Systems Wim For Toll Station Highway Vehicle
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    Unattended weigh in motion systems, toll station weigh in motion wim, Toll Station Weigh In Motion Systems


Name:	Weigh In Motion Truck Scale	Working Voltage:	AC 220V
Weighing Accuracy:	90%~97%	Speed Rate:	0.5~105km/h
Single Axle Load:	40T	Max Single Axle Load:	60T
Division Value:	50kg	MTBF:	≥20000h
Temperature Range:	-45~+80℃	Protection Grade:	IP68

Name:	Weigh In Motion Truck Scale
Working Voltage:	AC 220V
Weighing Accuracy:	90%~97%
Speed Rate:	0.5~105km/h
Single Axle Load:	40T
Max Single Axle Load:	60T
Division Value:	50kg
MTBF:	≥20000h
Temperature Range:	-45~+80℃
Protection Grade:	IP68

Product Description

Unattended Dynamic Axle Load Weighing System For Highway Vehicle

Product Function

The unattended high-speed dynamic weighing system governs the overload detection mode, detects the weight of cargo vehicles running normally on the carriageway, dynamically monitors whether the vehicle is overloaded according to the load limit set by the system, records and outputs the overload value and relevant data, and at the same time, a variable information board is configured on the f pole in front of the vehicle, Automatically identify the vehicle license plate number and enter it into the management system, and prompt the overload vehicle alarm signal. Cooperate with the traffic signs on the roadside to guide illegal vehicles into the exit channel or static fine inspection management station, so as to effectively eliminate the entry of out of gauge vehicles. Provide strong technical support for the implementation of dynamic comprehensive overload management.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

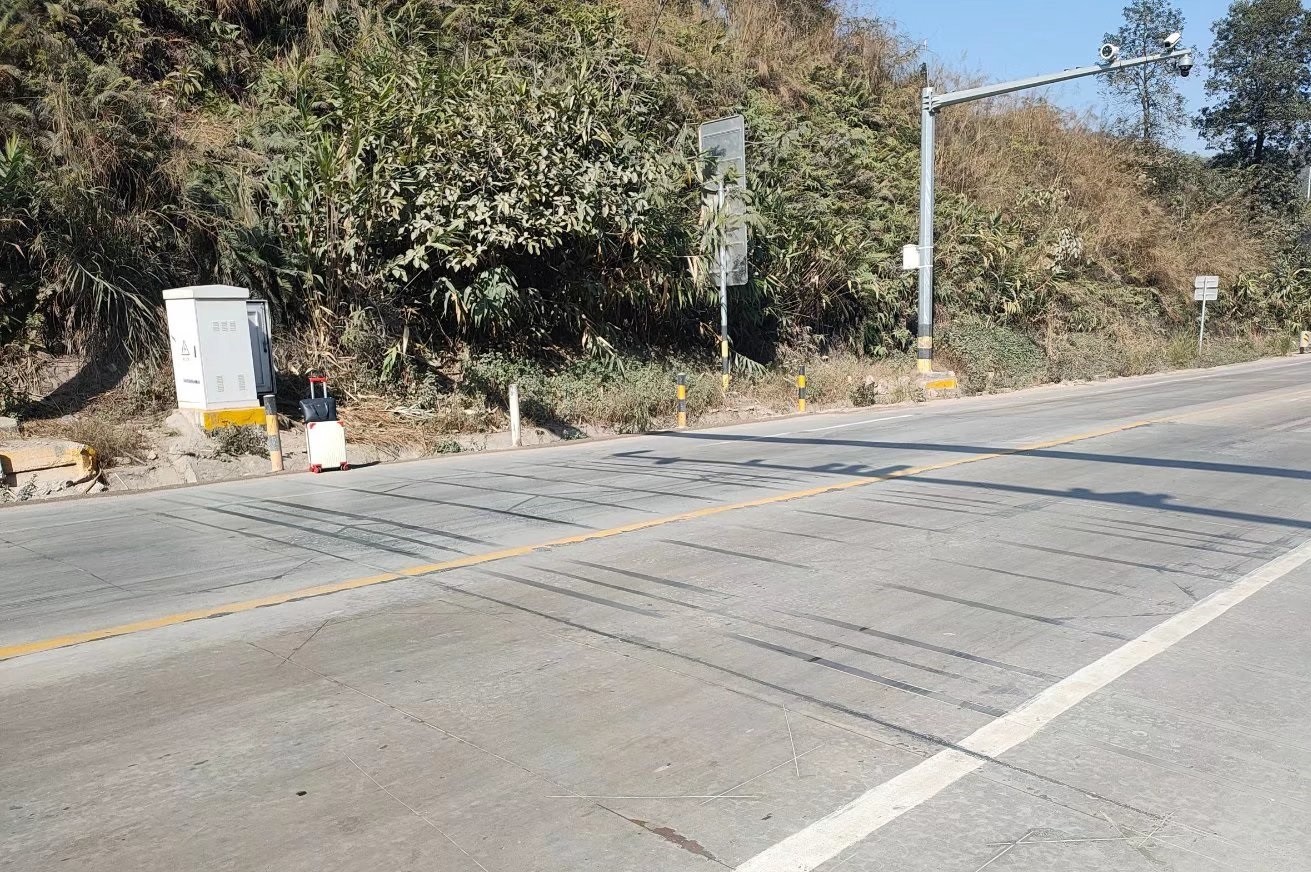

Project Case

Unattended Weigh In Motion Systems Wim For Toll Station Highway Vehicle 0
