8 Lanes High Speed Weigh In Motion 105km/H WIM System RJ485 Data Interface

Name: 8 Lanes High Speed Weigh In Motion 105km/H WIM System RJ485 Data Interface
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    High Speed Weigh In Motion 105km/H, 105km/H High Speed WIM System, WIM System RJ485 Data Interface


Name:	Weigh In Motion Truck Scale	Power:	AC 220V
Weighing Accuracy:	90%~97%	Speed:	0.5~105km/h
Single Axle Load:	40T	Max Single Axle Load:	60T
Division Value:	50kg	MTBF:	≥20000h
Working Temperature Range:	-45~+80℃	Protection Grade:	IP68

Name:	Weigh In Motion Truck Scale
Power:	AC 220V
Weighing Accuracy:	90%~97%
Speed:	0.5~105km/h
Single Axle Load:	40T
Max Single Axle Load:	60T
Division Value:	50kg
MTBF:	≥20000h
Working Temperature Range:	-45~+80℃
Protection Grade:	IP68

Product Description

105km/H High Speed Weighing System & Load Cell Truck Scales

Product Function

The high speed weighing system transmits the weighing information of the weighing vehicle to the high-speed pre inspection workstation. After receiving the trigger signal, the intelligent license plate recognition system captures and generates the information of the inspected vehicle and transmits it to the high-speed pre inspection workstation. At the same time, the video monitoring system monitors the whole process of vehicle weighing and encodes the image into the station video monitoring system for storage. If the vehicle is out of gauge, the high-speed pre inspection workstation sends a control signal to the out of gauge information release and guidance system to indicate the out of gauge vehicle. Through the information release system, the road administration personnel can also timely understand the information of out of gauge vehicles and deal with the out of gauge vehicles.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

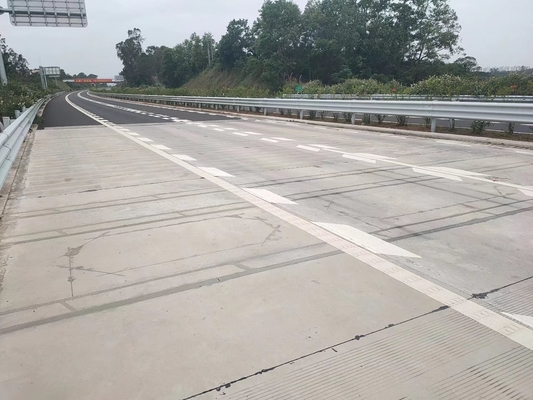

Project Case

8 Lanes High Speed Weigh In Motion 105km/H WIM System RJ485 Data Interface 0
