105km/H High Speed Wim Weigh In Motion Truck Scales 97% Accuracy

Name: 105km/H High Speed Wim Weigh In Motion Truck Scales 97% Accuracy
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                    105km/H High Speed Weight In Motion, Weigh In Motion Truck Scales 97% Accuracy, 97% Accuracy wim weigh in motion


Name:	Weight In Motion Truck Scales	Power:	AC 220V
Dynamic Weighing Accuracy:	90%~97%	Speed:	0.5~105km/h
Single Axle Load:	30T	Maximum Load Capacity:	45T (single Axle)
MTBF:	≥20000h	Temperature Range:	-45~+80℃

Name:	Weight In Motion Truck Scales
Power:	AC 220V
Dynamic Weighing Accuracy:	90%~97%
Speed:	0.5~105km/h
Single Axle Load:	30T
Maximum Load Capacity:	45T (single Axle)
MTBF:	≥20000h
Temperature Range:	-45~+80℃

Product Description

High Accuracy Weight In Motion For Dynamic Heavy Duty Truck Scale

Product Description

Weighing in motion pre-detection system of which the full name is no parking highway early warning detection and management of out of limit Internet of things system. This internet of things system has three levels, in which physical perception, data processing and data sharing are included. The system is divided into three parts according to its function, the dynamic weighing and speed measuring part, the vehicle license plate recognition part and the PC software part. According to the working spots, high-speed pre-detection monitoring station, sub-center, and provincial center (optional) these three parts are divided.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

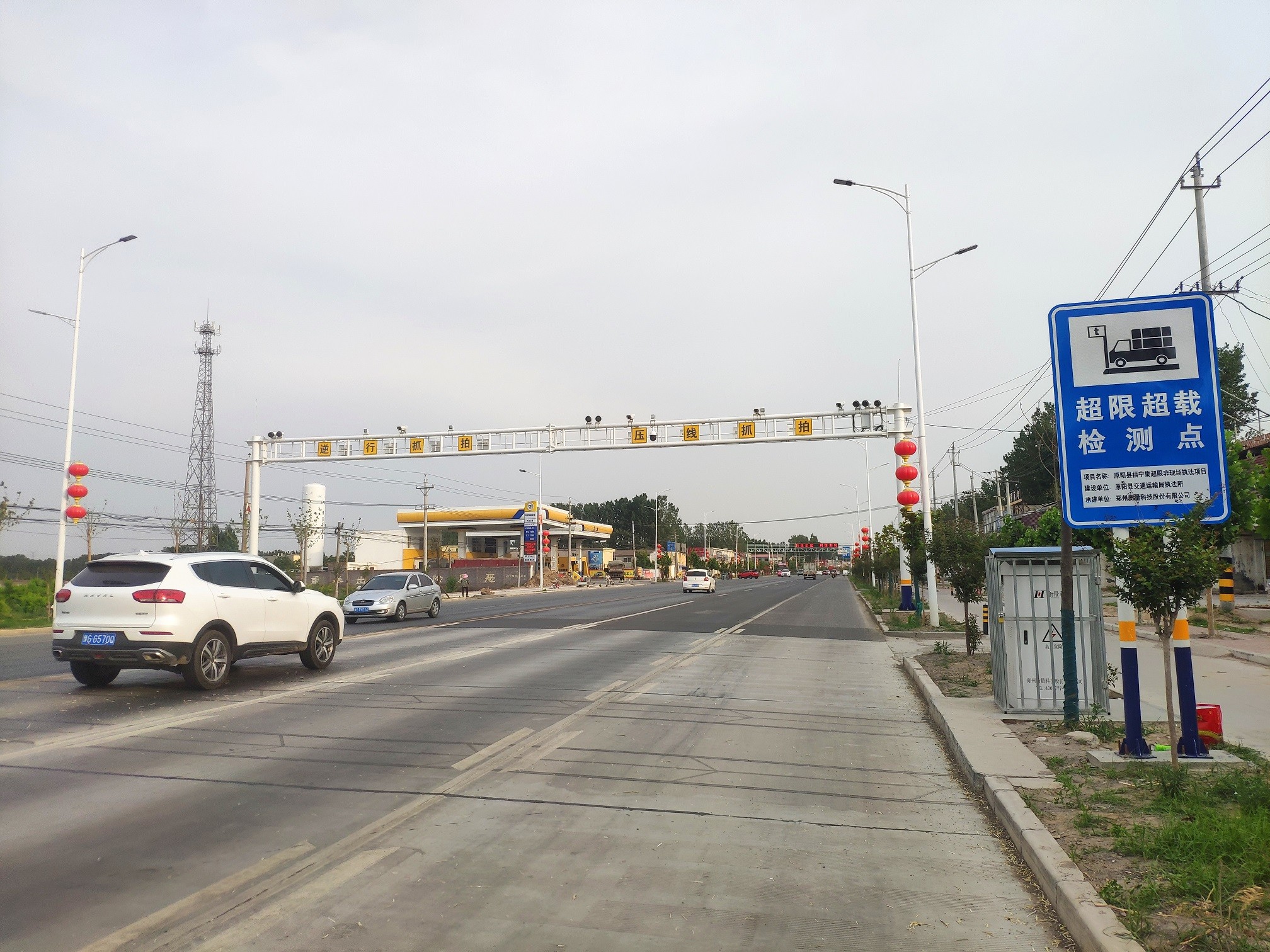

Project Case
