Name: Automatic Identification Weigh In Motion Scales 60T Axle Load
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Automatic Identification Weigh In Motion Scales 60T Axle Load

Basic Information

Place of Origin:	Zhenghou`China
Brand Name:	Hengliang
Certification:	ISO
Model Number:	ZQS-40-SY

Minimum Order Quantity:	1 SET
Price:	USD 20000-35000/SET
Packaging Details:	Wooden box
Delivery Time:	5~7days
Payment Terms:	T/T
Supply Ability:	30 SET/Month

Get Best Price Contact Now

Detail Information

Name:	WIM Scales	Voltage:	AC 220V
Weigh Error:	3%~10%	Speed Rate:	0.5~105km/h
Single Axle Load:	40000kg	Max Single Axle Load:	60000kg
Division Value:	50kg	MTBF:	≥20000h
Temperature Range:	-45~+80℃	Protection Grade:	IP68
Highlight:	Automatic Identification weigh in motion scales , Weigh In Motion Scales 60T Axle Load , Automatic Identification 60T truck axle scales

Product Description

Automatic Identification Vehicle Overload Weighing System For Truck Scales

Product Function

In depth research, judgment and analysis of over limit and overload detection data.
Research and analysis of illegal vehicles.
Case data analysis.
Vehicles with serious violations can be blacklisted and focused on control.
For the legal out of gauge transport vehicles that have handled the out of gauge transport license, they can be included in the white list to realize automatic filtering, and illegal data will not be collected.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

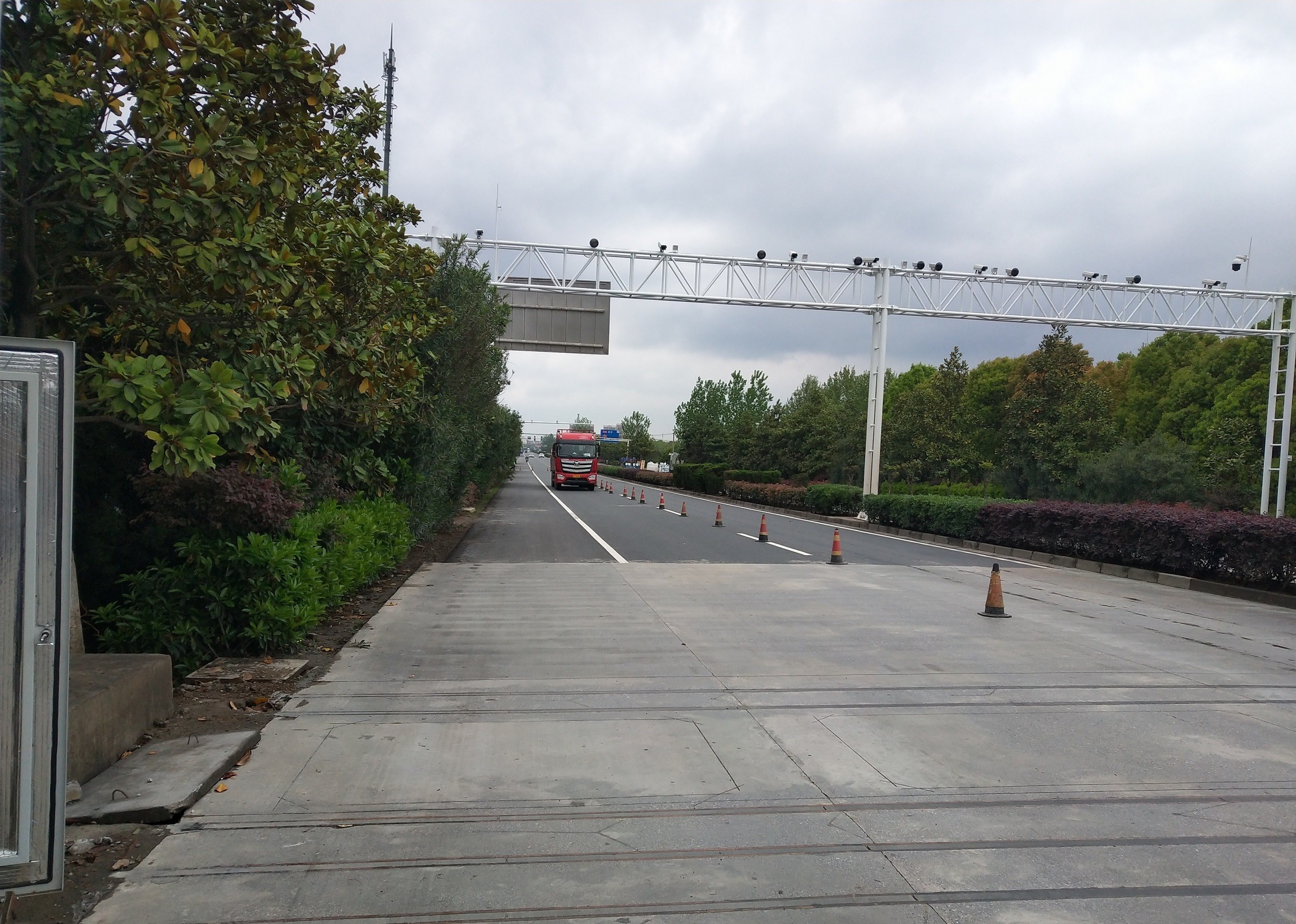

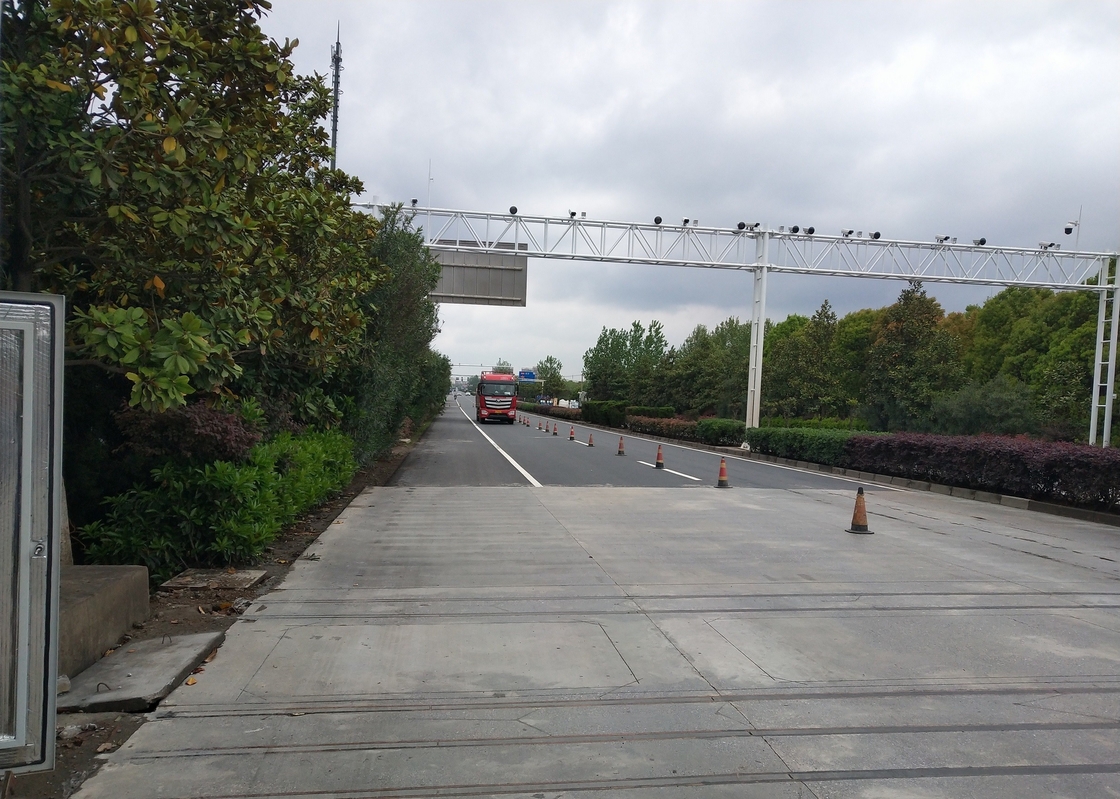

Project Case

Automatic Identification Weigh In Motion Scales 60T Axle Load 0
