Pre Inspection Quartz WIM System In Motion Axle Scale Hengliang

Basic Information

Place of Origin:	Zhenghou`China
Brand Name:	Hengliang
Certification:	ISO
Model Number:	ZQS-40-SY

Minimum Order Quantity:	1 SET
Price:	USD 20000-35000/SET
Packaging Details:	Wooden box
Delivery Time:	5~7days
Payment Terms:	T/T
Supply Ability:	30 SET/Month

Get Best Price Contact Now

Detail Information

Type:	WIM Scales	Voltage:	AC 220V 50Hz
Weigh Accuracy:	90%~97%	Speed Rate:	0.5~105km/h
Single Axle Load:	40T	Max Single Axle Load:	60T
Division Value:	50kg	MTBF:	≥20000h
Temperature Range:	-45~+80℃	Protection Grade:	IP68
Highlight:	Pre Inspection Quartz WIM System , In Motion Axle Scale Hengliang , Hengliang Quartz WIM System

Product Description

High Speed Pre Inspection Weighing System For Quartz WIM Scales

Product Function

The feature of the detection system is that it can quickly detect overweight vehicles without affecting the normal driving of vehicles on the main line, and guide the overloaded vehicles to enter the overload control station for further review and treatment through supporting road markings and signs, without affecting the normal traffic.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

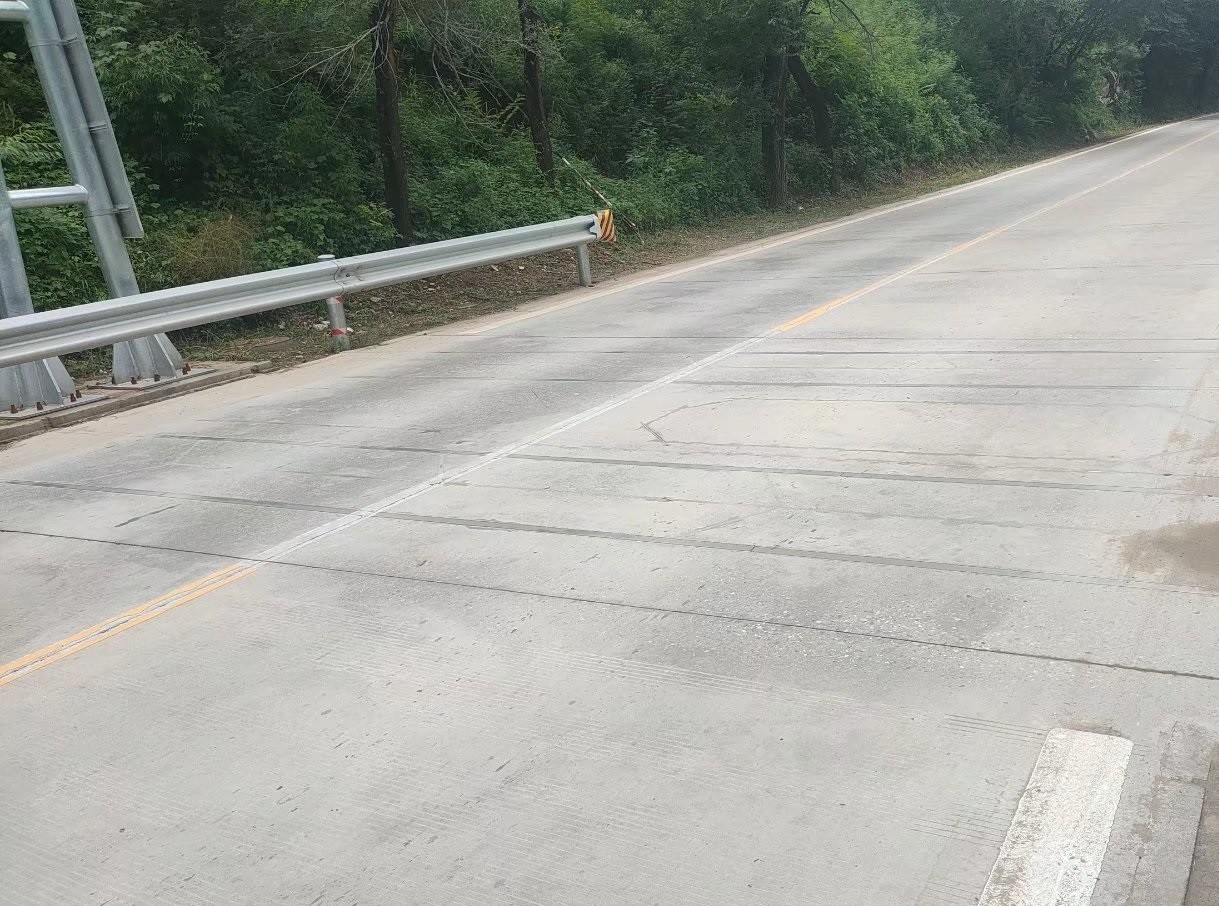

Project Case

Pre Inspection Quartz WIM System In Motion Axle Scale Hengliang 0
