Max Speed 105km/H Dynamic Weighing WIM System Vehicle Overload Detection
| Place of Origin | Zhenghou`China |
|---|---|
| Brand Name | Hengliang |
| Certification | ISO |
| Model Number | ZQS-40-SY |
| Minimum Order Quantity | 1 SET |
| Price | USD 20000-35000/SET |
| Packaging Details | Wooden box |
| Delivery Time | 5~7days |
| Payment Terms | T/T |
| Supply Ability | 30 SET/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | High Speed Weight In Motion | Voltage | AC 220V |
|---|---|---|---|
| Weighing Accuracy | 90%~97% | Max Speed | 0.5~105km/h |
| Single Axle Load | 40T | Max Load | 60T (single Axle) |
| Division Value | 50kg | MTBF | ≥20000h |
| Working Temperature Range | -45~+80℃ | Protection Level | IP68 |
| Highlight | 105km/H Dynamic Weighing WIM System,WIM System Vehicle Overload Detection,Max Speed 105km/H Dynamic Weighing System |
||
Product Description
Max Speed 105km/H Dynamic Weighing System For Vehicle Overload System
Product Function
The overall functions of the system are as follows:
- It has the functions of dynamic detection and output of vehicle model, number of axles, axle load and total weight of the whole vehicle.
- It has the function of vehicle license plate recognition and output.
- It has the functions of vehicle video recording and output.
- It has the functions of vehicle image capture and output.
- It has the functions of vehicle overrun information and notification, release and display.
- It has the functions of speed and flow detection and output.
- It has the functions of detection, discrimination and output of abnormal driving behavior of freight vehicles.
Product Parameters
| Weighing accuracy | 90%~97% |
| Single axle load | 40Ton |
| Max Load | 60Ton |
| Speed | 0.5~105km/h； |
| Speed error | ≤±1km/h |
| Wheelbase error | ≤±100mm |
| Working voltage | AC 220V 50Hz |
| Output information | Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time |
| Maximum number of lanes | 8 lanes |
| Data storage | It can store up to 10000 pieces of vehicle information data |
| data interface | RJ485 |
| work environment | -45℃～80℃,0～95% |
| Confidence | ≥95% |

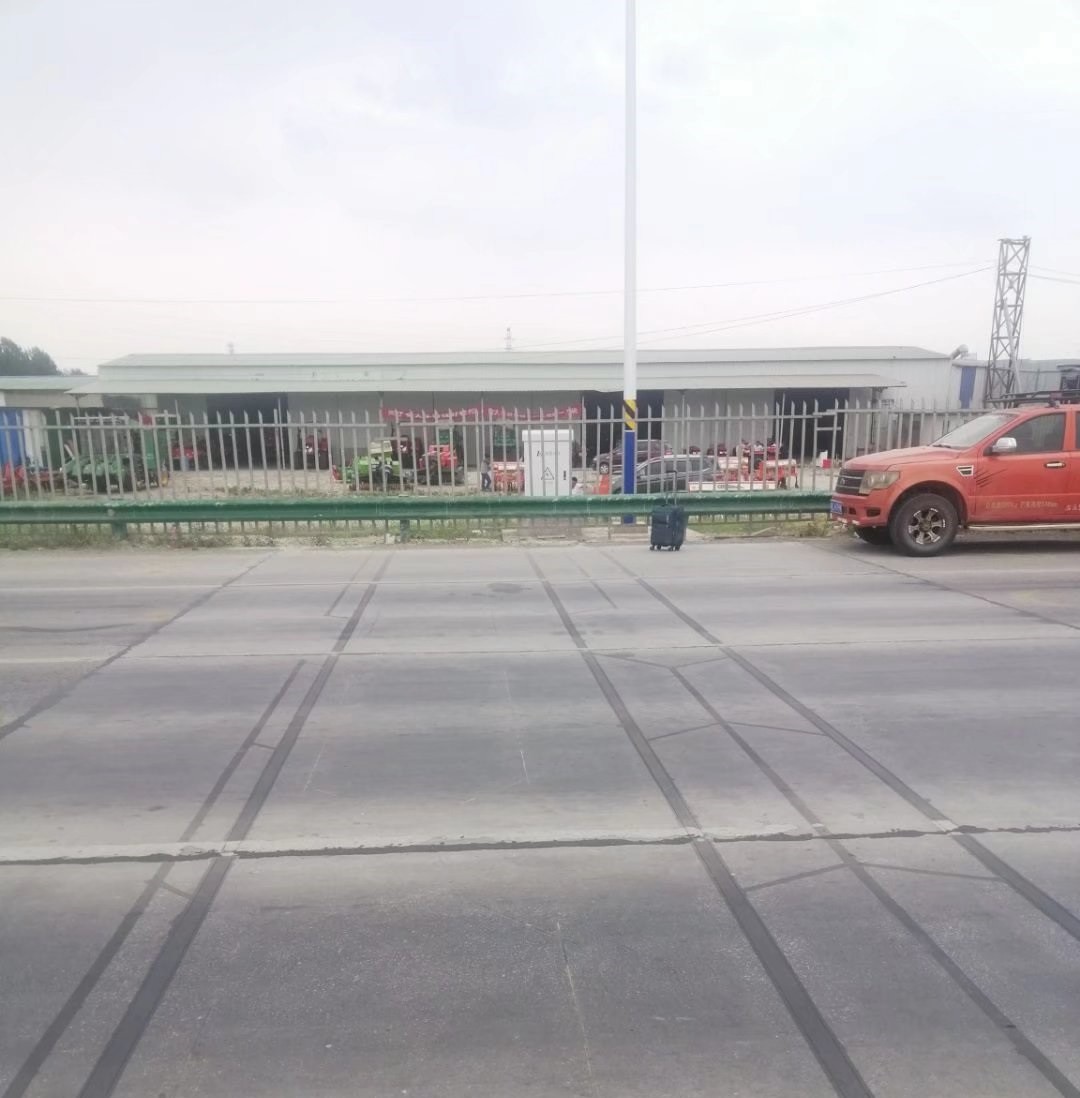

Project Case
