Home /Products/Truck Weigh In Motion/Non Stop 60000kg Weigh In Motion Truck Scales AC220V 50Hz

Non Stop 60000kg Weigh In Motion Truck Scales AC220V 50Hz

1 SET
MOQ
USD 20000-35000/SET
Price
Non Stop 60000kg Weigh In Motion Truck Scales AC220V 50Hz
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Truck Weight In Motion
Working Voltage: AC 220V
Weighing Accuracy: 90%~97%
Speed: 0.5~105km/h
Single Axle Load: 40Ton (single Axle)
Max Load: 60Ton (single Axle)
MTBF: ≥20000h
Working Temperature Range: -45~+80℃
Highlight:

60000kg Weigh In Motion Truck Scales

,

In Motion Truck Scales AC220V 50Hz

,

Non Stop 60000kg In Motion Truck Scales
Basic Infomation
Place of Origin: Zhenghou`China
Brand Name: Hengliang
Certification: ISO
Model Number: ZQS-40-SY
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 5~7days
Payment Terms: T/T
Supply Ability: 30 SET/Month
Product Description

60T Axle Load Dynamic Weigh In Motion Sysytem & Truck Scales

Product Description

The temporary detection data of the off-site law enforcement detection system is stored in the on-site industrial computer and uploaded to the overload control management center in real time through the network to store the data of the off-site law enforcement detection system; The road monitoring video of the off-site law enforcement detection system is stored in the corresponding equipment of the off-site law enforcement system, and the monitoring image can be viewed by the provincial, municipal and county platforms through the special network for super control.

Product Parameters

Weighing accuracy 90%~97%
Single axle load 40Ton
Max Load 60Ton
Speed 0.5~105km/h；
Speed error ≤±1km/h
Wheelbase error ≤±100mm
Working voltage AC 220V 50Hz
Output information Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes 8 lanes
Data storage It can store up to 10000 pieces of vehicle information data
data interface RJ485
work environment -45℃～80℃,0～95%
Confidence ≥95%

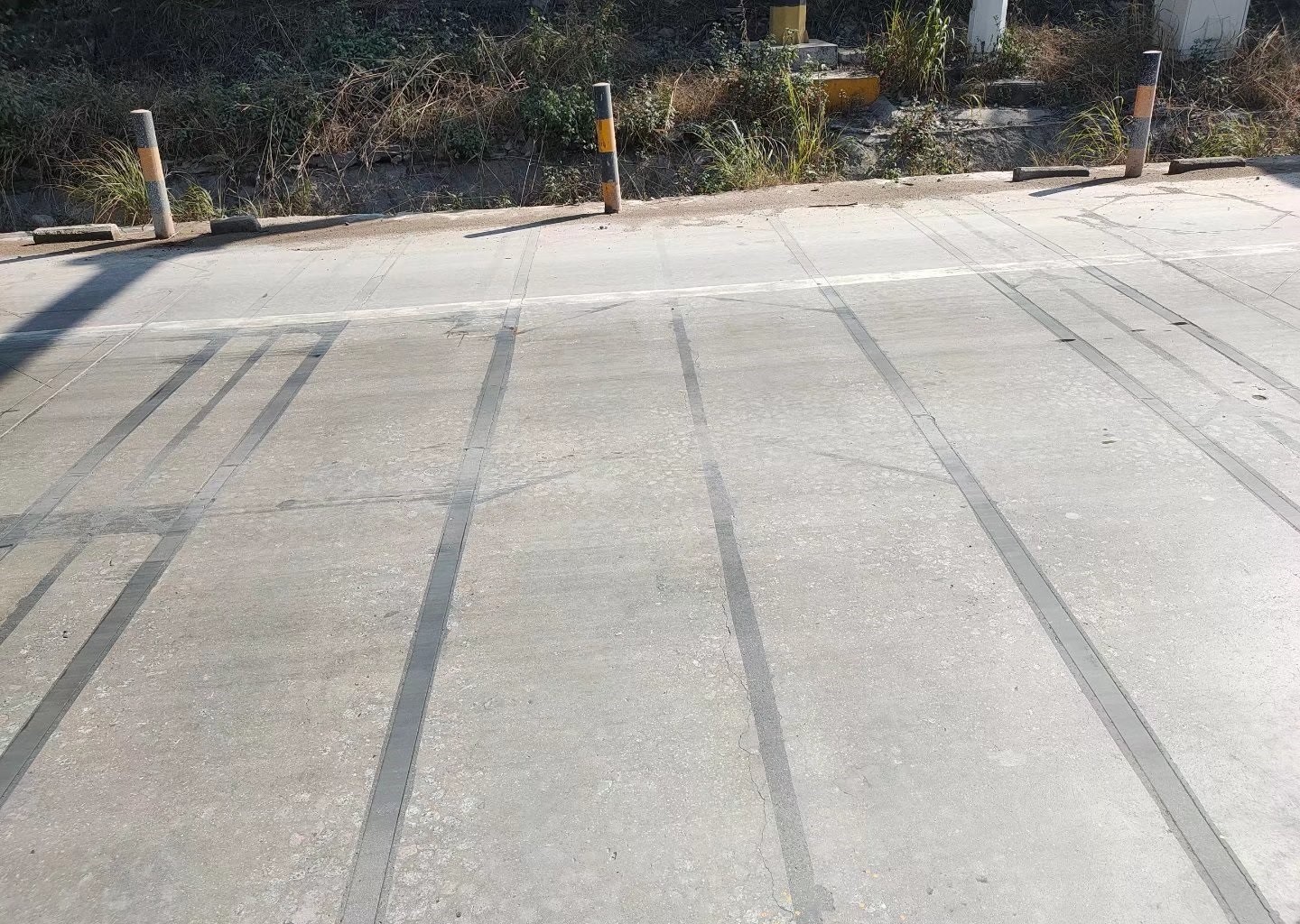

Project Case

​Non Stop 60000kg Weigh In Motion Truck Scales AC220V 50Hz 0


Tag:

Single Axle 40T Truck Weigh In Motion

weigh in motion 105km/H High Speed

Truck Axle Scales Hengliang
