Name: IP68 Quartz Truck Weigh In Motion WIM System For Toll Station
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

IP68 Quartz Truck Weigh In Motion WIM System For Toll Station

Basic Information

Place of Origin:	Zhenghou`China
Brand Name:	Hengliang
Certification:	ISO
Model Number:	ZQS-40-SY

Minimum Order Quantity:	1 SET
Price:	USD 20000-35000/SET
Packaging Details:	Wooden box
Delivery Time:	5~7days
Payment Terms:	T/T
Supply Ability:	30 SET/Month

Get Best Price Contact Now

Detail Information

Name:	Truck Weight In Motion	Power:	AC 220V
Weighing Accuracy:	90%~97%	Speed:	0.5~105km/h
Axle Load:	40Ton (single Axle)	Max Load:	60Ton (single Axle)
MTBF:	≥20000h	Temperature Range:	-45~+80℃
Highlight:	IP68 Quartz Truck Weigh In Motion , Quartz Truck Weigh In Motion WIM System , IP68 Truck Weigh In Motion WIM System

Product Description

Max Single Axle 60T Quartz Weighing Sysytem & Truck Weigh In Motion

Product Description

The system collects data at all times, processes and uploads it. Have 7 × With 24-hour continuous service capability, the system has excellent reliability, availability, scalability and necessary redundancy and fault tolerance, so as to provide highly available services for the system.
Take strict safety and reliability measures in hardware configuration, operating system and system management to ensure the normal operation of the system and the confidentiality and security of data.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

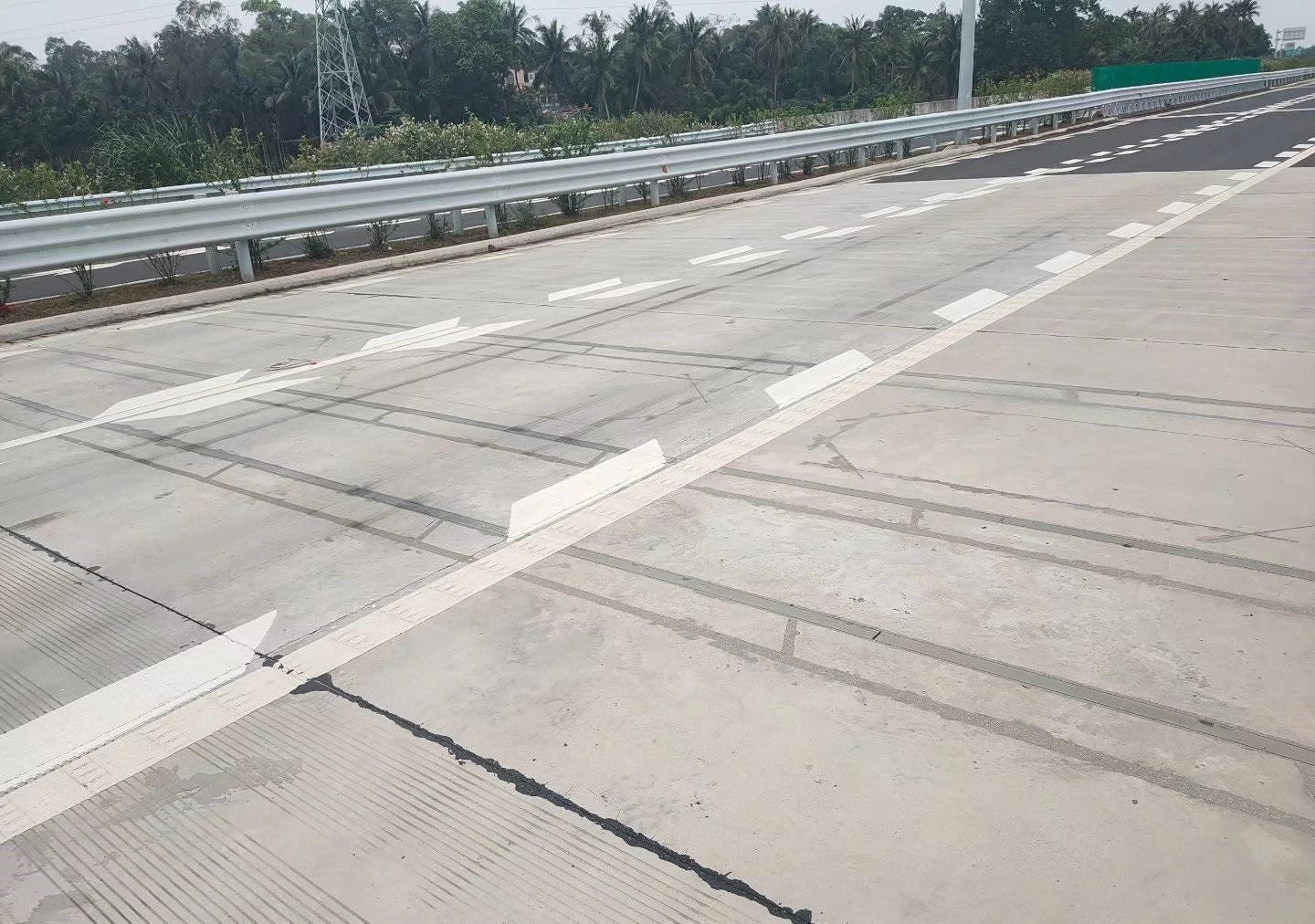

Project Case

IP68 Quartz Truck Weigh In Motion WIM System For Toll Station 0
