High Speed 105km/H Bridge Weigh In Motion System RJ485 Data Interface

Basic Information

Place of Origin:	Zhenghou`China
Brand Name:	Hengliang
Certification:	ISO
Model Number:	ZQS-40-SY

Minimum Order Quantity:	1 SET
Price:	USD 20000-35000/SET
Packaging Details:	Wooden box
Delivery Time:	5~7days
Payment Terms:	T/T
Supply Ability:	30 SET/Month

Get Best Price Contact Now

Detail Information

Name:	Truck Weight In Motion	Power:	AC 220V
Weighing Error:	3%~10%	Speed Rate:	0.5~105km/h
Axle Load:	40T (single Axle)	Max Load:	60T (single Axle)
MTBF:	≥20000h	Temperature Range:	-45~+80℃
Highlight:	105km/H bridge weigh in motion system , Weigh In Motion System RJ485 Interface , RJ485 Interface High Speed Weigh In Motion

Product Description

High Speed 0.5~105km/H Vehicle WIM System & Truck Scales

Product Description

In important sections, obtain the weighing and detection information of passing freight vehicles through technical means, automatically judge whether the vehicles are overloaded, punish the overloaded vehicles in accordance with relevant regulations, and copy the illegal information to relevant law enforcement departments such as public security, industry.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

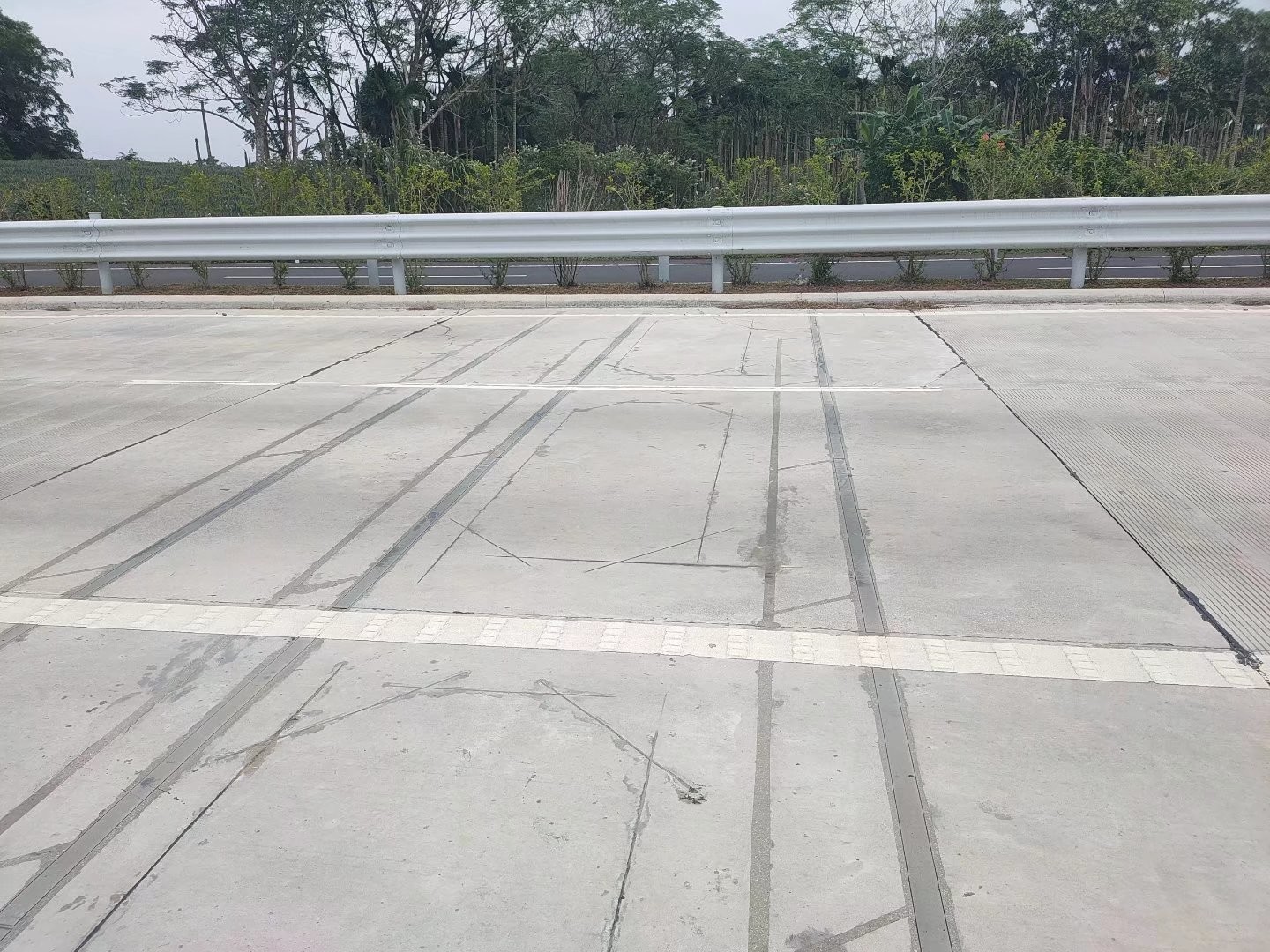

Project Case

High Speed 105km/H Bridge Weigh In Motion System RJ485 Data Interface 0
