Detail Information

Name:	Truck Weight In Motion	Working Voltage:	AC 220V
Weighing Accuracy:	90%~97%	Speed Rate:	0.5~105km/h
Axle Load:	40000kg (single Axle)	Max Single Axle:	60000kg
MTBF:	≥20000h	Temperature Range:	-45~+80℃
Highlight:	60T Bending Plate Weigh In Motion , Bending Plate Weigh In Motion IP68 , Truck Axle Scales Hengliang

Product Description

High Speed Truck Dynamic Weigh Scales & 40T Single Axle Weighing System

Product Description

The high-speed weighing system transmits the weighing information of the weighing vehicle to the high-speed pre inspection workstation. After receiving the trigger signal, the intelligent license plate recognition system captures and generates the information of the inspected vehicle and transmits it to the high-speed pre inspection workstation. At the same time, the video monitoring system monitors the whole process of vehicle weighing and encodes the image into the station video monitoring system for storage. If the vehicle exceeds the limit, the high-speed pre inspection workstation sends a control signal to the overrun information release and guidance system to instruct the overrun vehicle to enter the overrun station for fine inspection. Through the information release system, the road administration personnel can also timely understand the information of out of gauge vehicles and deal with the out of gauge vehicles.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

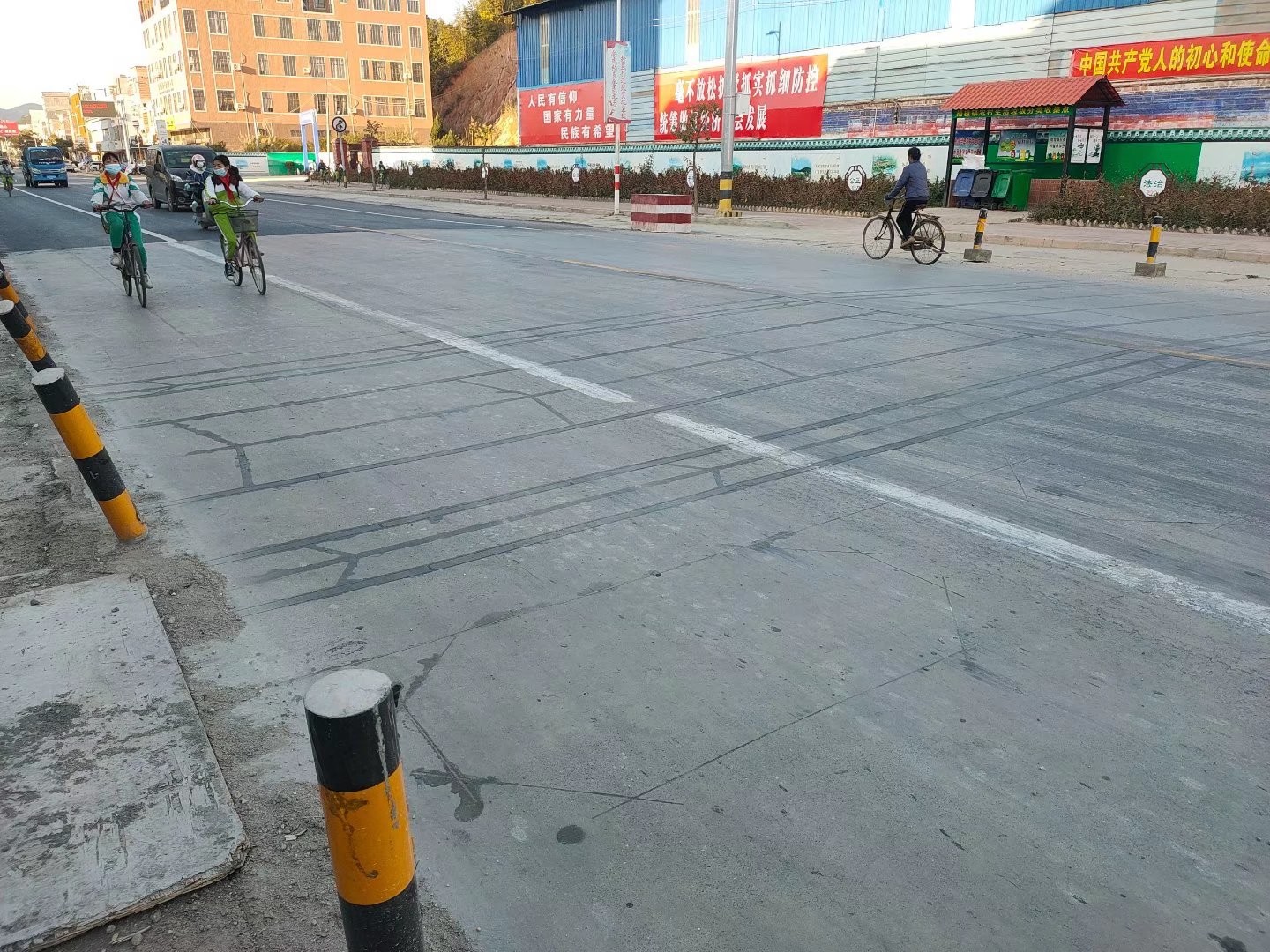

Project Case

60T Bending Plate Weigh In Motion IP68 Truck Axle Scales Hengliang 0

Tag:

Place of Origin:	Zhenghou`China
Brand Name:	Hengliang
Certification:	ISO
Model Number:	ZQS-40-SY

Minimum Order Quantity:	1 SET
Price:	USD 20000-35000/SET
Packaging Details:	Wooden box
Delivery Time:	5~7days
Payment Terms:	T/T
Supply Ability:	30 SET/Month
