Quartz Wim Sensor Weigh In Motion Truck Scales Highway Overload Management

Name: Quartz Wim Sensor Weigh In Motion Truck Scales Highway Overload Management
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                    quartz weigh in motion truck scales, Overload Management in motion truck scales, Quartz Wim Sensor Overload Management


Type:	Truck Weight In Motion	Voltage:	AC 220V
Dynamic Weighing Accuracy:	90%~97%	Speed Rate:	0.5~105km/h
Single Axle Load:	40Ton	Max Overload Capacity:	150% (single Axle)
MTBF:	≥20000h	Temperature Range:	-45~+80℃

Type:	Truck Weight In Motion
Voltage:	AC 220V
Dynamic Weighing Accuracy:	90%~97%
Speed Rate:	0.5~105km/h
Single Axle Load:	40Ton
Max Overload Capacity:	150% (single Axle)
MTBF:	≥20000h
Temperature Range:	-45~+80℃

Product Description

Truck Weight Scales For Highway Overload Managent System & Truck Scales

Product Description

For vehicles passing through the main lane of the highway, the system can automatically detect the total amount, axle weight, axle weight, wheelbase, vehicle speed, vehicle acceleration and other information of the vehicle.
The system can accurately and effectively automatically distinguish between single vehicle and multiple vehicles in parallel, so as to ensure one-to-one correspondence between vehicles and data.
The system is equipped with automatic buffer function, which can save a certain amount of data. When sending data to the computer fails, it can resend the data, maintain the uniqueness and integrity of the data, and transmit the weighing information to the pre inspection workstation of the detection station through the data interface.
The system has the function of fault self inspection. In case of fault of each equipment and line in the system, the system can obtain the corresponding fault information, display it on the field display equipment, and transmit these fault information to the pre inspection workstation of the detection station.
It can work continuously for more than 24 hours under unattended condition.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

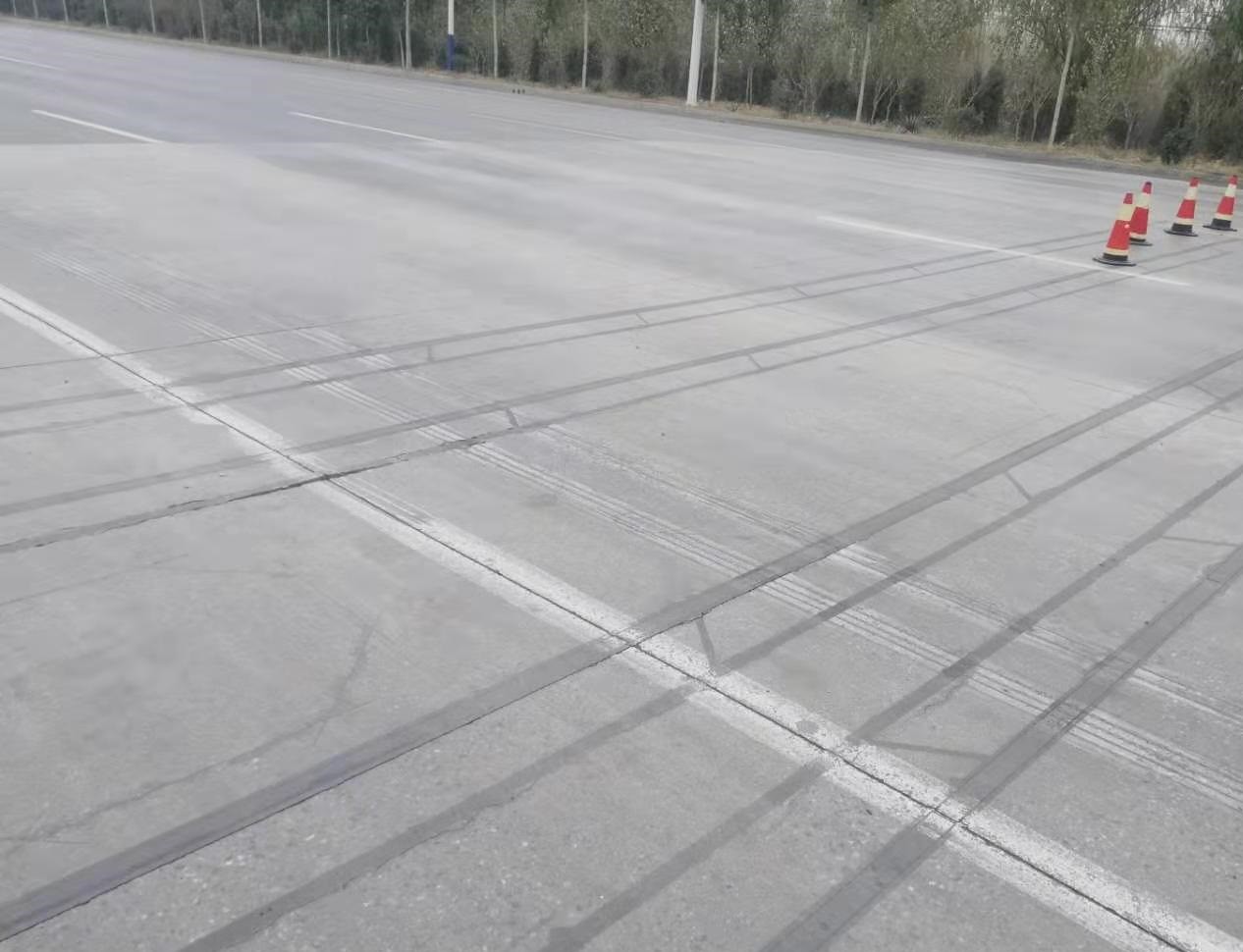

Project Case

Quartz Wim Sensor Weigh In Motion Truck Scales Highway Overload Management 0
