Single Axle Load 60T Truck WIM Scales Highway Overload Control
| Place of Origin | Zhenghou`China |
|---|---|
| Brand Name | Hengliang |
| Certification | ISO |
| Model Number | ZQS-40-SY |
| Minimum Order Quantity | 1 SET |
| Price | USD 20000-35000/SET |
| Packaging Details | Wooden box |
| Delivery Time | 5~7days |
| Payment Terms | T/T |
| Supply Ability | 30 SET/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | WIM Scales | Working Voltage | AC 110V~220V |
|---|---|---|---|
| Weighing Error | 3%~10% | Speed Rate | 0.5~105km/h |
| Axle Load | 40T (single Axle) | Single Axle Overload | 150% |
| Division Value | 50kg | MTBF | ≥20000h |
| Temperature Range | -45~+80℃ | Protection Level | IP68 |
| Highlight | WIM Scales Highway Overload Control,Highway 60T truck axle scales,Single Axle 60T Truck WIM Scales |
||
Product Description
Max Single Axle Load 60T High Accuracy Highway Overload Control System
Product Function
- The system can simultaneously detect the model, speed, driving lane, weight, license plate number and other data of vehicles passing through the track. It is a favorable tool for monitoring vehicle overload and overrun.
- Automatic identifying vehicle’s driving direction and meanwhile detecting forward and reverse vehicles.
- According to the standard that the user set, automatically judge whether vehicles speeding, overweight, and starts the alarm device.
- Test high speed (speed: 0.5 ~ 105 km/h) vehicle’s axle load, speed, wheelbase, total weight and can separate automatically.
- Provide user management, data backup and restore data, and other functions for advanced permissions users.
High-speed preview information management software provides management functions for multiple remote testing site, for testing station peripherals with state detection function.
Reserve data distribution function, can provide overrun vehicle data to the third party system, easy to monitor speeding and overweight vehicles.
Reserve standard interface, convenient other manufacturers of high-speed preview data access.
Product Parameters
| Weighing accuracy | 90%~97% |
| Single axle load | 40Ton |
| Max Load | 60Ton |
| Speed | 0.5~105km/h； |
| Speed error | ≤±1km/h |
| Wheelbase error | ≤±100mm |
| Working voltage | AC 220V 50Hz |
| Output information | Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time |
| Maximum number of lanes | 8 lanes |
| Data storage | It can store up to 10000 pieces of vehicle information data |
| data interface | RJ485 |
| work environment | -45℃～80℃,0～95% |
| Confidence | ≥95% |

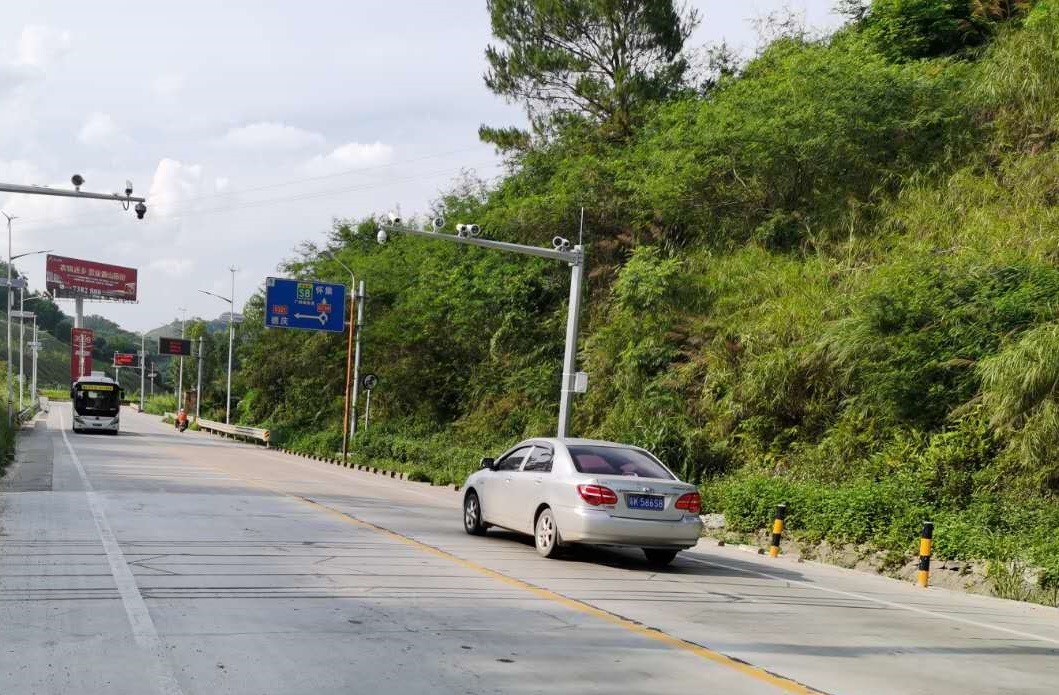

Project Case
