0.5-105km/H High Speed Weigh In Motion WIM Scales 8 Lanes For Toll Station

  • 0.5-105km/H High Speed Weigh In Motion WIM Scales 8 Lanes For Toll Station
Place of Origin Zhenghou`China
Brand Name Hengliang
Certification ISO
Model Number ZQS-40-SY
Minimum Order Quantity 1 SET
Price USD 20000-35000/SET
Packaging Details Wooden box
Delivery Time 5~7days
Payment Terms T/T
Supply Ability 30 SET/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type WIM Scales Voltage AC 110V~220V
Weighing Error 3%~10% Speed Rate 0.5~105km/h
Single Axle Load 40T Max Single Axle Load 60T
Division Value 50kg MTBF ≥20000h
Temperature Range -45~+80℃ Protection Level IP68
Highlight

Toll Station 8 Lanes WIM Scales

,

105km/H High Speed WIM Scales

,

105km/H weigh in motion station
Leave a Message
Product Description

0.5~105km/H And Single Axle 40T High Speed WIM Scales& Axle Scales

Product Function



  • Automatic identifying vehicle’s driving direction and meanwhile detecting forward and reverse vehicles.
  • According to the standard that the user set, automatically judge whether vehicles speeding, overweight, and starts the alarm device.
  • Test high speed (speed: 0.5 ~ 105 km/h) vehicle’s axle load, speed, wheelbase, total weight and can separate automatically.
  • Has data fault-tolerant function, correct matching weight and license plate number, form a complete vehicle information, including the vehicle's license plate, the speed and axle load, the number of shaft, wheelbase, vehicle weight, pass time, whether overweight or speeding, etc.

  • Realize intelligent analysis, according the condition of time period, where the car passed to analyzed, and display in the form of a chart.

  • Provide function of system network connection test, can dynamic rendering system topology structure, real-time test connection status of each node in the network.

Product Parameters

Weighing accuracy 90%~97%
Single axle load 40Ton
Max Load 60Ton
Speed 0.5~105km/h；
Speed error ≤±1km/h
Wheelbase error ≤±100mm
Working voltage AC 220V 50Hz
Output information Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes 8 lanes
Data storage It can store up to 10000 pieces of vehicle information data
data interface RJ485
work environment -45℃～80℃,0～95%
Confidence ≥95%

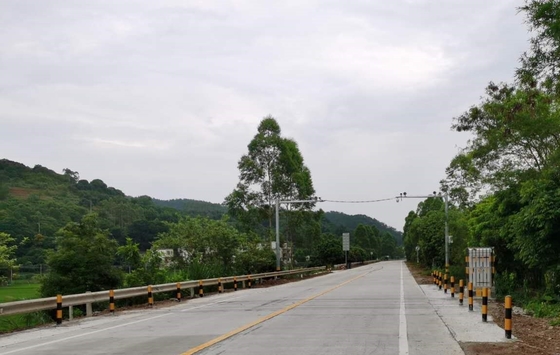

Project Case

​0.5-105km/H High Speed Weigh In Motion WIM Scales 8 Lanes For Toll Station 0
