Name: heavy duty truck Bending Plate Weigh In Motion WIM System RJ485 data interface
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

heavy duty truck Bending Plate Weigh In Motion WIM System RJ485 data interface

Basic Information

Place of Origin:	Zhenghou`China
Brand Name:	Hengliang
Certification:	ISO
Model Number:	ZQS-40-SY

Minimum Order Quantity:	1 SET
Price:	USD 20000-35000/SET
Packaging Details:	Wooden box
Delivery Time:	5~7days
Payment Terms:	T/T
Supply Ability:	30 SET/Month

Get Best Price Contact Now

Detail Information

Type:	WIM Scales	Voltage:	AC 110V~220V
Weighing Error:	3%~10%	Speed Rate:	0.5~105km/h
Single Axle Load:	40T	Max Single Axle Load:	60T
Division Value:	50kg	MTBF:	≥20000h
Temperature Range:	-45~+80℃	Protection Level:	IP68
Highlight:	Bending Plate Weigh In Motion WIM , Heavy Duty Truck WIM System , RJ485 Data Interface WIM System

Product Description

ZQS-40-SY WIM Scales & Single Axle 40T High Speed Weighing System

Product Function

Automatic identifying vehicle’s driving direction and meanwhile detecting forward and reverse vehicles.
According to the standard that the user set, automatically judge whether vehicles speeding, overweight, and starts the alarm device.
Test high speed (speed: 0.5 ~ 105 km/h) vehicle’s axle load, speed, wheelbase, total weight and can separate automatically.
Has data fault-tolerant function, correct matching weight and license plate number, form a complete vehicle information, including the vehicle's license plate, the speed and axle load, the number of shaft, wheelbase, vehicle weight, pass time, whether overweight or speeding, etc.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

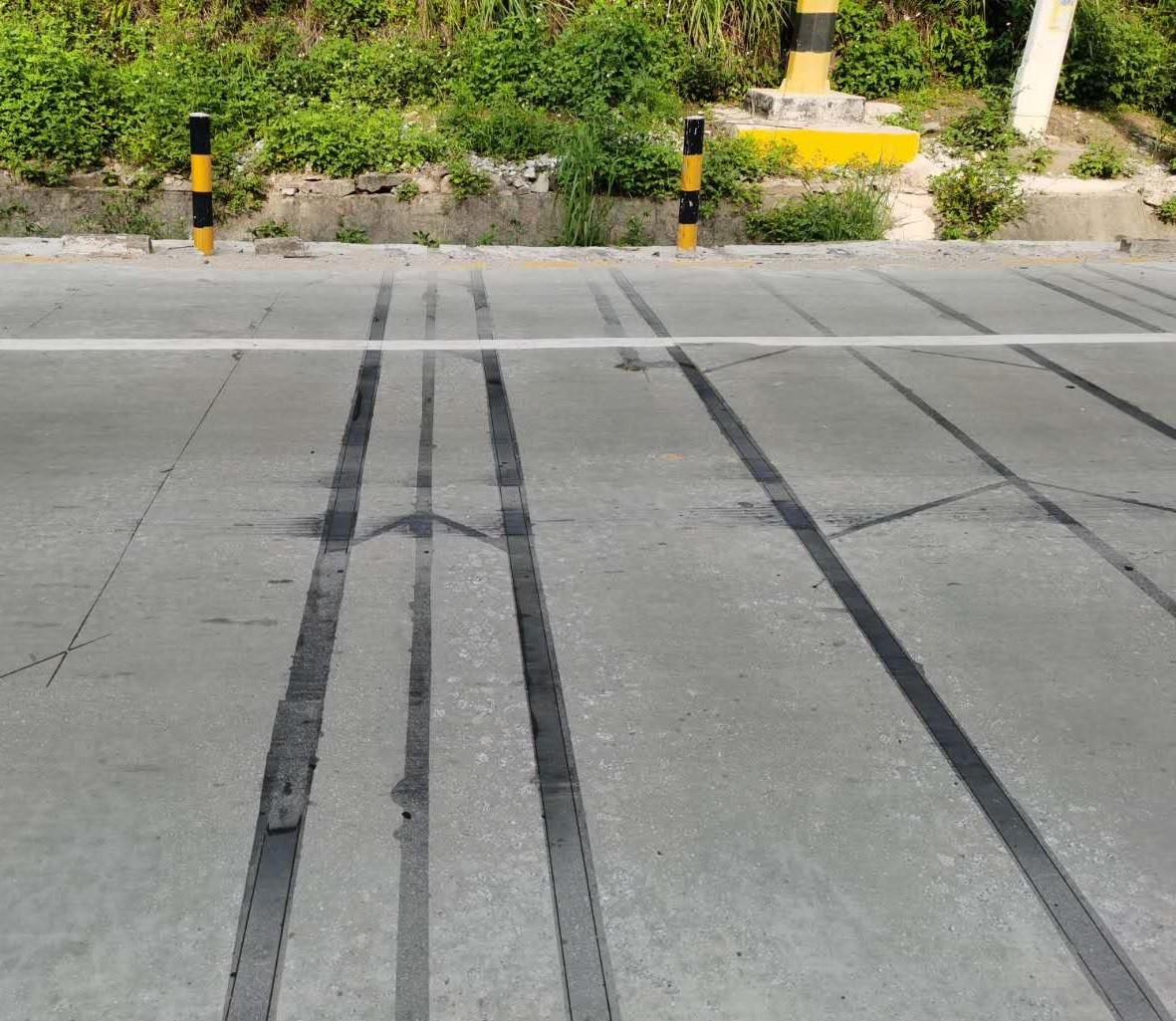

Project Case

heavy duty truck Bending Plate Weigh In Motion WIM System RJ485 data interface 0
