Non Stop WIM Scales 40T Bridge Weigh In Motion AC 110V-220V 50Hz

Basic Information

Place of Origin:	Zhenghou`China
Brand Name:	Hengliang
Certification:	ISO
Model Number:	ZQS-40-SY

Minimum Order Quantity:	1 SET
Price:	USD 20000-35000/SET
Packaging Details:	Wooden box
Delivery Time:	5~7days
Payment Terms:	T/T
Supply Ability:	30 SET/Month

Get Best Price Contact Now

Detail Information

Name:	WIM Scales	Voltage:	AC 110V~220V
Weighing Error:	3%~10%	Speed:	0.5~105km/h
Single Axle Load:	40T	Single Axle Overload:	150%
Division Value:	50kg	MTBF:	≥20000h
Temperature Range:	-45~+80℃	Protection Level:	IP68
Highlight:	220V 50Hz WIM Scales , Non Stop WIM Scales 40T , 40T Bridge Weigh In Motion

Product Description

Highway Overload Management System & Single Axle 40T WIM Scales

Product Function

The management system main function is to dynamically measure the tire force of running vehicles and calculate the corresponding static vehicle weight, so as to realize full-automatic measurement without stopping.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

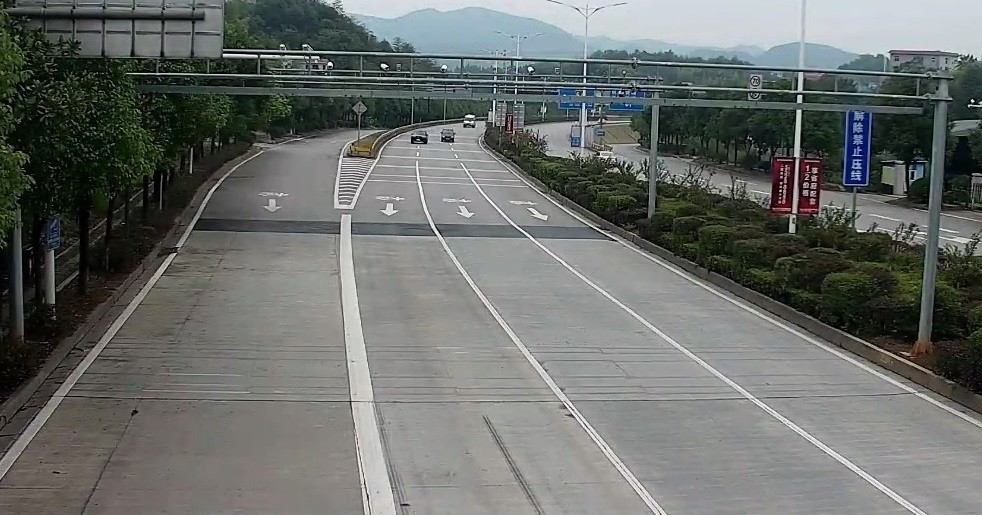

Project Case
