Dynamic Axle Load Weighing Management System Multi Vehicle Continuous
| Place of Origin | Zhenghou`China |
|---|---|
| Brand Name | Hengliang |
| Certification | ISO, CE |
| Model Number | ZQS-40-SY |
| Minimum Order Quantity | 1 SET |
| Price | USD 20000-35000/SET |
| Packaging Details | Wooden box |
| Delivery Time | 5~7days |
| Payment Terms | T/T |
| Supply Ability | 30 SET/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| System Name | WIM System | Voltage | AC 220V |
|---|---|---|---|
| System ERROR | 3%~10% | Speed | 0.5~100km/h |
| Axle Load | 40Ton (single Axle) | Axle Max Overload | 60Ton (single Axle) |
| MTBF | ≥20000h | Temperature | -45~+80℃ |
| Highlight | Multi Vehicle Continuous WIM System,Dynamic Axle Load WIM System,AC 220V WIM System |
||
Product Description
Multi Vehicle Continuous Dynamic Axle Load Weighing Management System
Product Description
Establish an overrun dynamic fine inspection system based on computer network to automatically monitor illegal and out of gauge transportation of vehicles, realize 24-hour freight vehicle transportation monitoring, form a powerful deterrent, focus on solving the three major problems of shortage of overload control staff, difficulty in obtaining evidence, and safety of overload control, and reduce the rate of out of gauge vehicle transportation.
1. Weighing accuracy
The number of axles, axle load, gross weight of vehicle and cargo, license plate, speed and other information can be measured timely and accurately without stopping, decelerating, driving at a specific speed and in a specific lane. The accuracy is not lower than the national level 5 standard. The vehicle can pass the verification with a type evaluation certificate.
2. Weighing speed adaptability
In order to avoid the detection of off-site law enforcement weighing system, illegal vehicles that exceed the limit often cheat by using super low speed over weighing, high speed post punching and other behaviors. The bidding products can accurately detect the following behaviors, and the accuracy reaches level 5:
1) Be able to weigh accurately when the vehicle is over balanced at super low speed or running and stopping, that is, be able to weigh vehicles of the speed cutoff type (intermittent driving);
2) It can accurately weigh when the vehicle passes at high speed, that is, the maximum detection speed of dynamic weighing reaches 100km/h;
3. On site inspection data management application
The data platform system can complete the functional requirements of collection, calculation, control, display, alarm, storage, etc., reduce the limit of personnel position, and promote the handling of overload control at the first time. At the same time, the system can analyze the data based on the vehicle data reported by each station, and provide support for highway managers to make decisions.
Product Parameters
| Weighing accuracy | 90%~97% |
| Single axle load | 40Ton |
| Single axle max Load | 60Ton |
| Speed | 0.5~100km/h； |
| Speed error | ≤±1km/h |
| Wheelbase error | ≤±100mm |
| Working voltage | AC 220V 50Hz |
| Output information | Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time |
| Maximum number of lanes | 8 lanes |
| Data storage | It can store up to 10000 pieces of vehicle information data |
| data interface | RJ485 |
| work environment | -45℃～80℃,0～95% |
| Confidence | ≥95% |

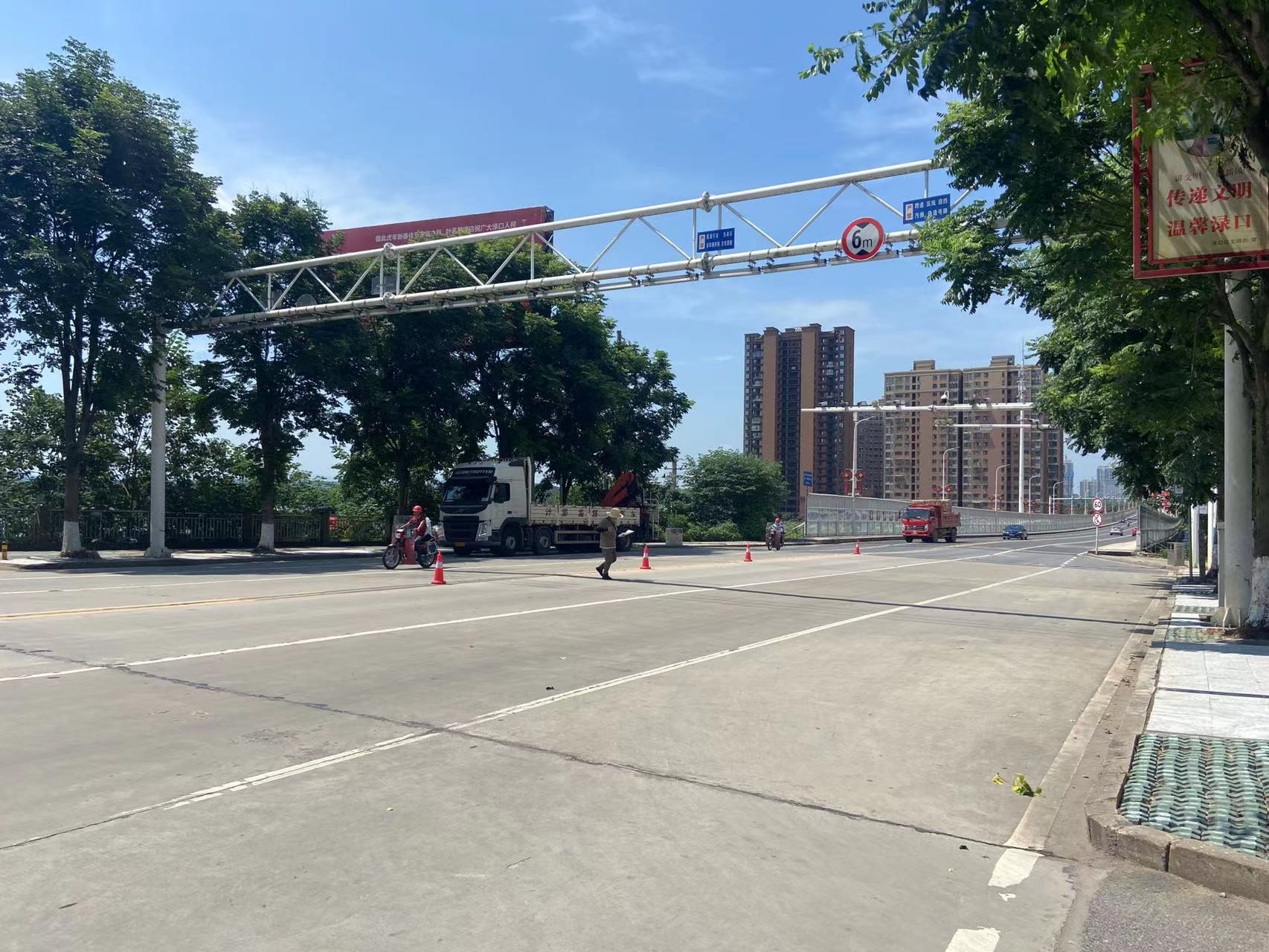

Project Case
