40T In Motion Axle Scale Weigh In Motion Station Overload Detection

Basic Information

Place of Origin:	Zhenghou`China
Brand Name:	Hengliang
Certification:	ISO
Model Number:	ZQS-40-SY

Minimum Order Quantity:	1 SET
Price:	USD 20000-35000/SET
Packaging Details:	Wooden box
Delivery Time:	5~7days
Payment Terms:	T/T
Supply Ability:	30 SET/Month

Get Best Price Contact Now

Detail Information

Type:	WIM System	Power:	AC 220V
Weighing Accuracy:	90%~97%	Speed:	0.5~105km/h
Single Axle Load:	40000kg	Maximum Load:	60000kg (single Axle)
Division Value:	50kg	MTBF:	≥20000h
Temperature Range:	-45~+80℃	Protection Level:	IP68
Highlight:	40T In Motion Axle Scale , Weigh In Motion Station Overload Detection , Overload Detection In Motion Axle Scale

Product Description

High Precision Dynamic Weighing System For 0.5-105km/H Vehicle

Product Function

Weighing in motion pre-detection system of which the full name is no parking highway early warning detection and management of out of limit Internet of things system. This internet of things system has three levels, in which physical perception, data processing and data sharing are included. The system is divided into three parts according to its function, the dynamic weighing and speed measuring part, the vehicle license plate recognition part and the PC software part.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

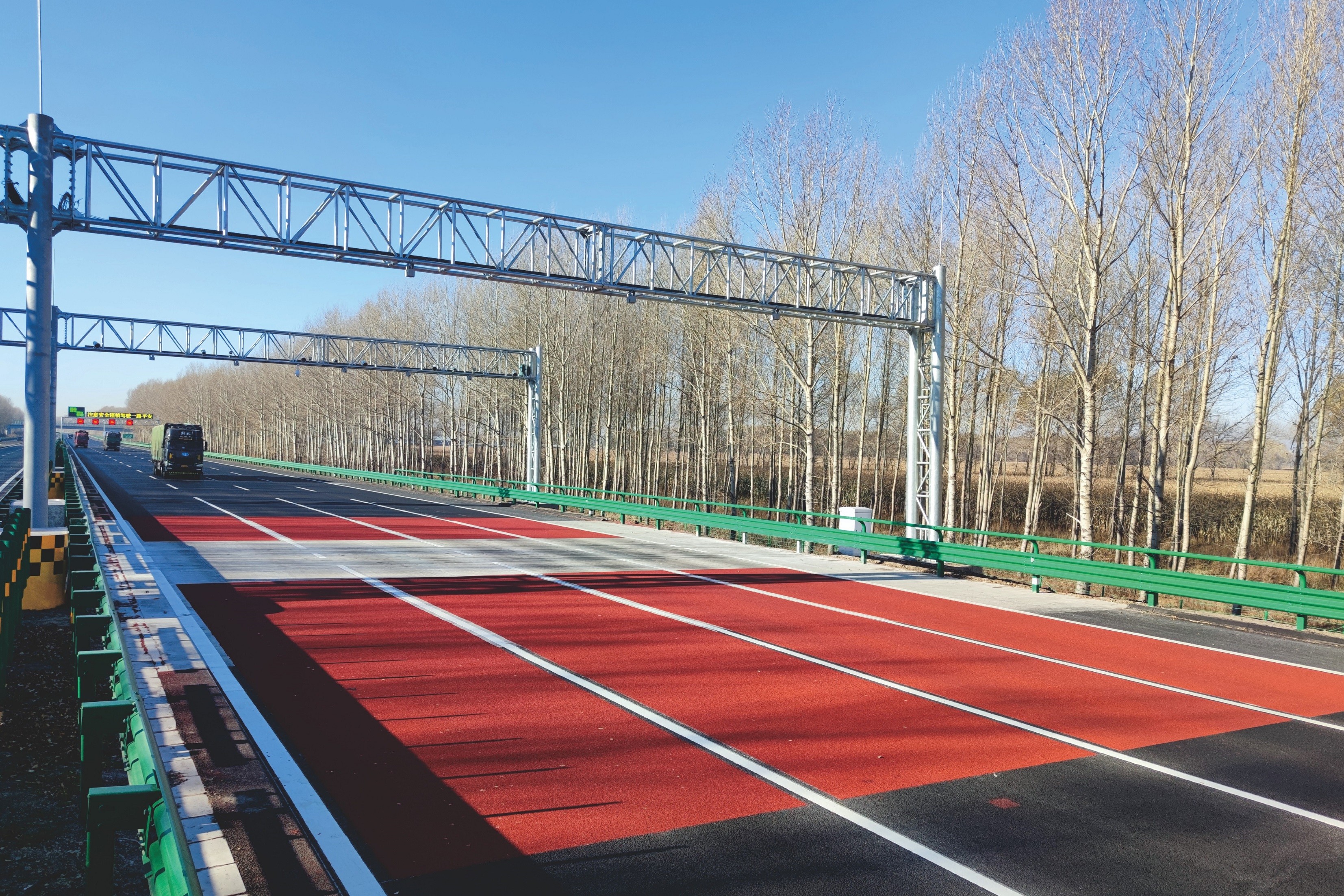

Project Case

40T In Motion Axle Scale Weigh In Motion Station Overload Detection 0
