30T Weigh In Motion WIM System Single Axle 45T For Truck Scales

Basic Information

Get Best Price Contact Now

Detail Information

Keywords:	Weigh In Motion System	Power:	AC 220 Volt
Dynamic Weighing Accuracy:	90%~97%	Speed:	0.5~105km/h
Rated Load Of Single Axle:	30 Ton	Maximum Overload Capacity:	45Ton (single Axle)
MTBF:	≥20000h	Temperature Range:	-45~+80℃
Highlight:	WIM System Single Axle 45T , 30T Weigh In Motion WIM System , WIM System For Truck Scales

Product Description

30T Weigh In Motion System Single Axle 45T For Truck Scales

Weigh In Motion System Components:

Scale Platform

Infrared Vehicle Separator

Tire Identifier Induction Coil Vehicle Detector (Optional)

Control Cabinet

Fee Displayer (Optional)

Product Description

Device Configuration (High Speed WIM System)	Quartz Sensor
	Weight Meter(High Speed)
	ChargeAmplifier
	Wheel Identifier Sensor
	Loop
	Electrical Cabinet(Optional)

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

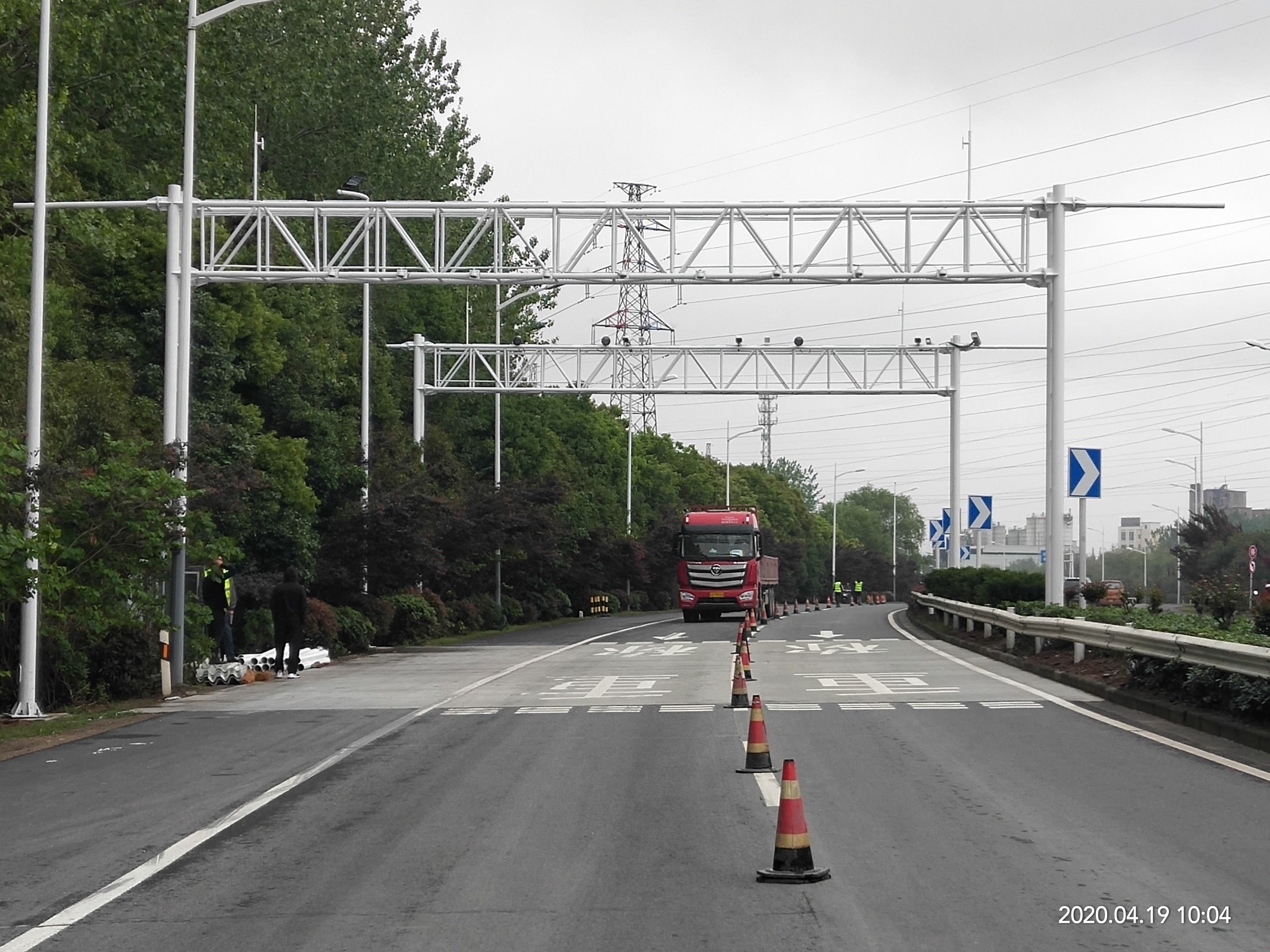

Project Case

30T Weigh In Motion WIM System Single Axle 45T For Truck Scales 0
