Hengliang Dynamic Weighing WIM System With 40000KG Truck Axle Scales

Name: Hengliang Dynamic Weighing WIM System With 40000KG Truck Axle Scales
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    Hengliang WIM System, Hengliang Dynamic Weighing System, 40000KG Truck Axle Scales


Type:	WIM System	Power:	AC 220V
Weighing Error:	3%~10%	Speed:	0.5~105km/h
Single Axle Load:	40Ton	Max Load:	60Ton (single Axle)
Division Value:	50kg	MTBF:	≥20000h
Temperature Range:	-45~+80℃	Protection Level:	IP68

Type:	WIM System
Power:	AC 220V
Weighing Error:	3%~10%
Speed:	0.5~105km/h
Single Axle Load:	40Ton
Max Load:	60Ton (single Axle)
Division Value:	50kg
MTBF:	≥20000h
Temperature Range:	-45~+80℃
Protection Level:	IP68

Product Description

Piezoelectric Quartz Dynamic Weighing WIM System & 40000KG Axle Scales

Product Function

The high-speed vehicle dynamic weighing system can focus the overload treatment on the truly overloaded transporters, allow the vehicles with normal load to avoid driving into the weighing station for forced vehicle weighing, and only allow a small number of trucks pre inspected as overweight to enter the vehicle weighing area; While controlling the overload, it not only improves the working capacity and weighing accuracy of the weighing station, but also avoids the obstruction to the traffic. Improve road safety and reduce road damage by reducing overloaded vehicles.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

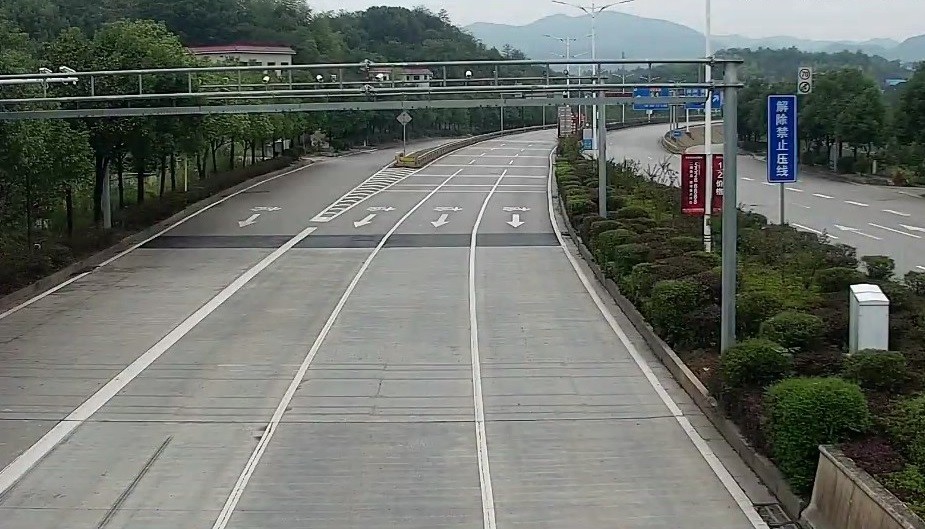

Project Case

Hengliang Dynamic Weighing WIM System With 40000KG Truck Axle Scales 0
