ISO Bending Plate Weigh In Motion Truck Scales 0.5-105km/H Speed

Name: ISO Bending Plate Weigh In Motion Truck Scales 0.5-105km/H Speed
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                    ISO bending plate weigh in motion, 105km/H Weigh In Motion Truck Scales, ISO Weigh In Motion Truck Scales


Name:	WIM System	Power:	AC 220V
Dynamic Weighing Accuracy:	90%~97%	Speed:	0.5~105km/h
Rated Load Of Single Axle:	30T	Maximum Overload Capacity:	45T (single Axle)
MTBF:	≥20000h	Temperature Range:	-45~+80℃

Name:	WIM System
Power:	AC 220V
Dynamic Weighing Accuracy:	90%~97%
Speed:	0.5~105km/h
Rated Load Of Single Axle:	30T
Maximum Overload Capacity:	45T (single Axle)
MTBF:	≥20000h
Temperature Range:	-45~+80℃

Product Description

Manufacturer Promotion High Precision Dynamic WIM System Truck Scales

dynamic weighing system and vehicle tire detection system are composed of Weighing Platform,Tire Identifier,Infrared Vehicle Separator,Induction Coil Vehicle Detector (can option according to actual requirement),Control cabinet (including indicator),In among,Weighing Platform,Tire Indicator, Induction Coil are installed in the entrance of lane. Control Cabinet,Infrared Vehicle Separator is installed at the front port of toll station,adopting front setting.

Product Description

Device Configuration (High Speed WIM System)	Quartz Sensor
	Weight Meter(High Speed)
	ChargeAmplifier
	Wheel Identifier Sensor
	Loop
	Electrical Cabinet(Optional)

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

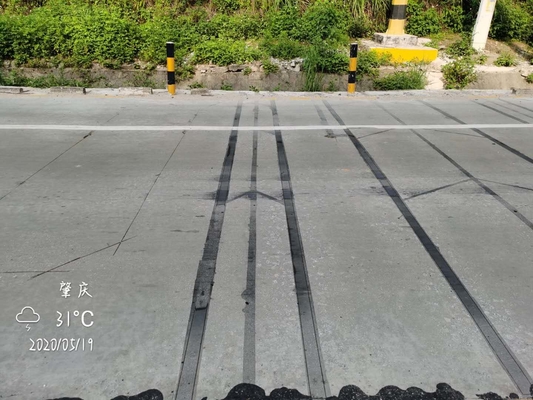

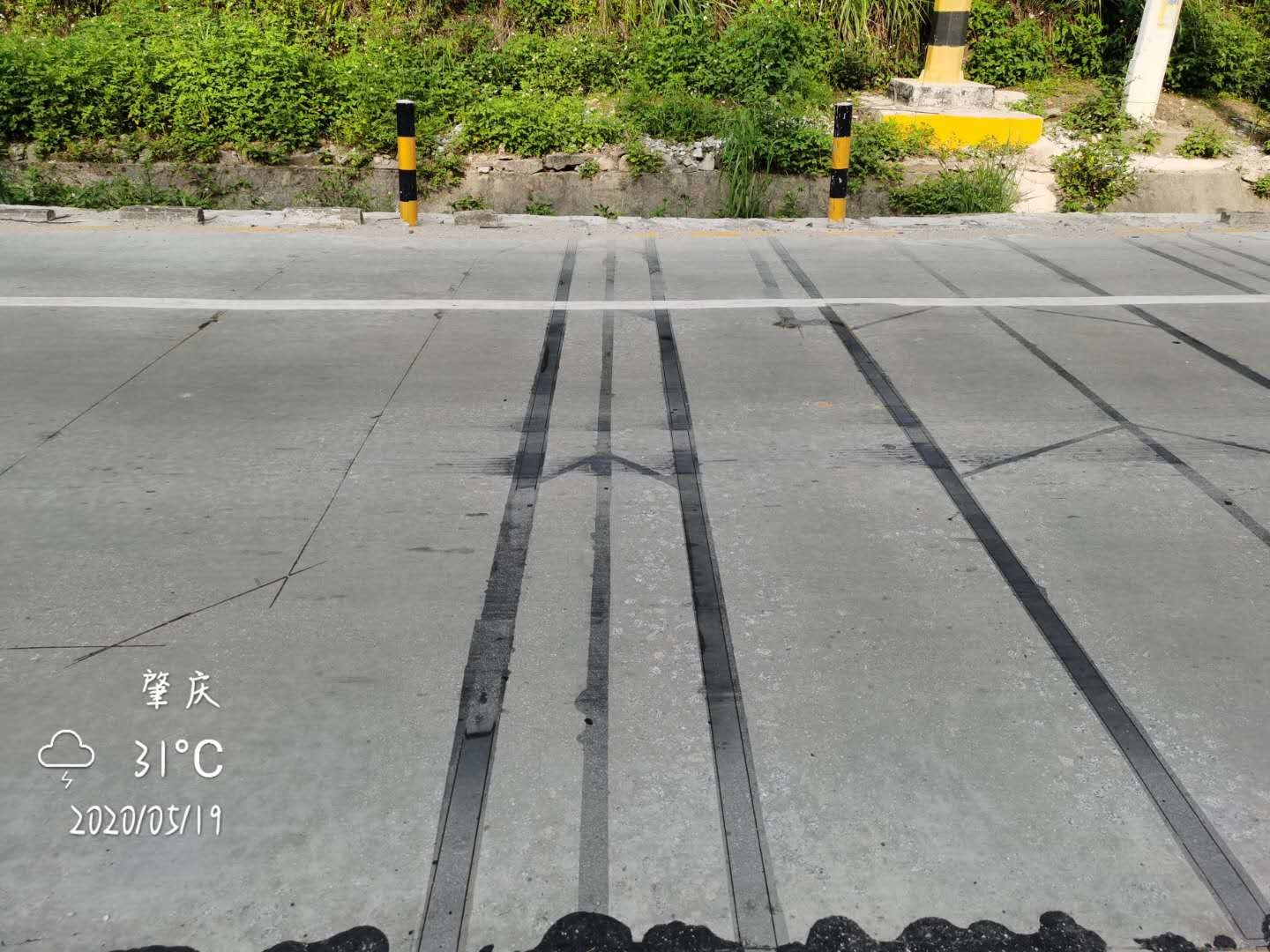

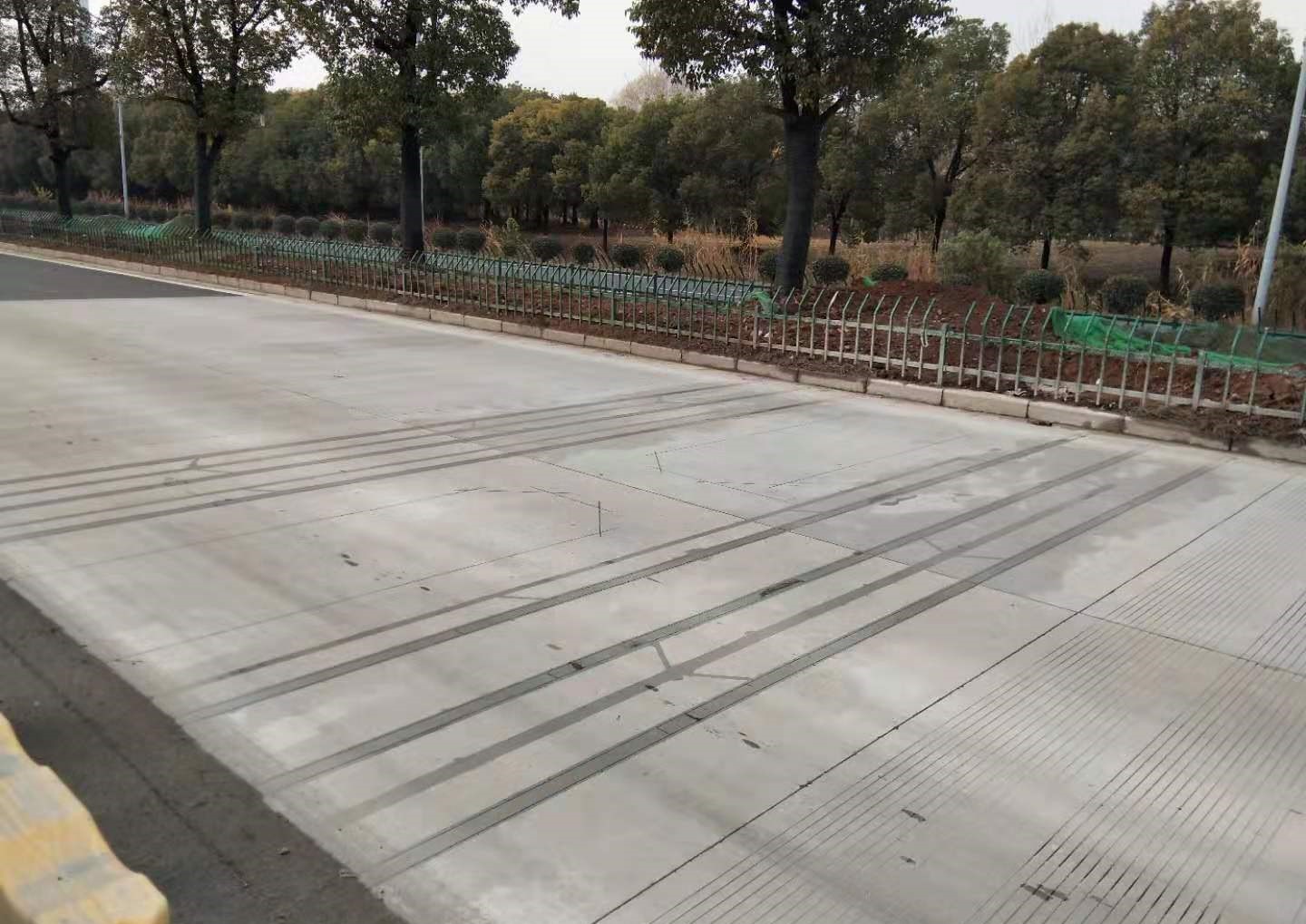

Project Case

ISO Bending Plate Weigh In Motion Truck Scales 0.5-105km/H Speed 0
