8 Lanes Wim Weigh In Motion Systems With Trcuk Scales AC 220V 50Hz

Name: 8 Lanes Wim Weigh In Motion Systems With Trcuk Scales AC 220V 50Hz
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    8 Lanes Wim Weigh In Motion Systems, AC220V 50Hz Wim Weigh In Motion, AC220V 50Hz Weigh In Motion systems


Name:	WIM System	Power:	AC 220V
Weighing Error:	3%~10%	Speed Rate:	0.5~105km/h
Single Axle Load Rate:	0~40Ton	Max Load:	60Ton (single Axle)
Division Value:	50kg	MTBF:	≥20000h
Temperature Range:	-45~+80℃	Protection Level:	IP68

Name:	WIM System
Power:	AC 220V
Weighing Error:	3%~10%
Speed Rate:	0.5~105km/h
Single Axle Load Rate:	0~40Ton
Max Load:	60Ton (single Axle)
Division Value:	50kg
MTBF:	≥20000h
Temperature Range:	-45~+80℃
Protection Level:	IP68

Product Description

0.5~105km/H High Speed Quartz Dynamic Weighing System & Trcuk Scales

Product Function

On the premise of not disturbing the normal traffic order of the road, the system can carry out unrestricted pre detection for the vehicles running normally in the lane, prompt the overloaded vehicles and the management personnel to guide the suspected vehicles exceeding the limit into the recheck accurate weighing area for accurate review, and further law enforcement can be carried out for the vehicles exceeding the limit. At the same time, the overrun detection station can also provide basic traffic statistics data for highway management departments and provide data basis for traffic situation analysis.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

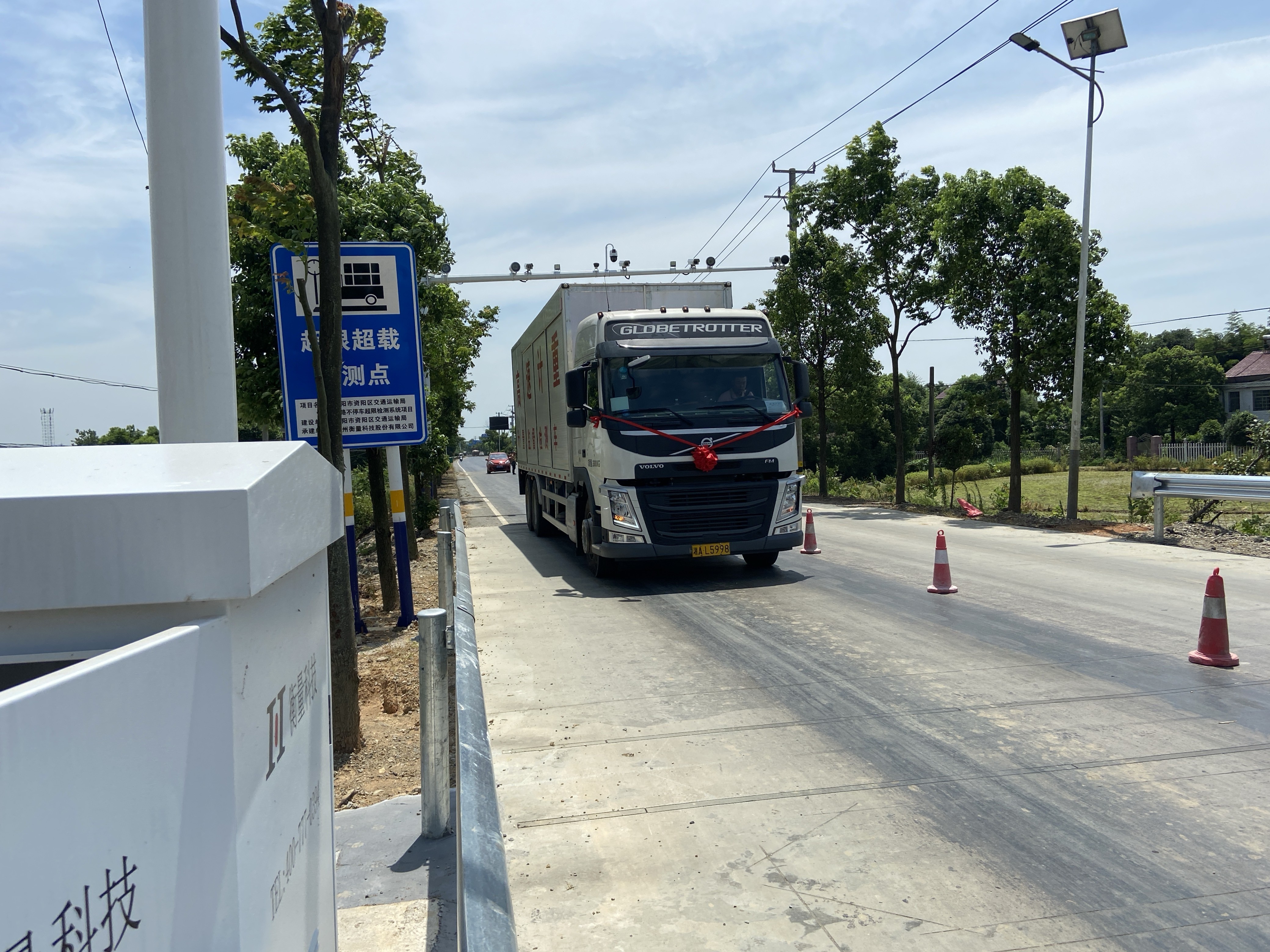

Project Case

8 Lanes Wim Weigh In Motion Systems With Trcuk Scales AC 220V 50Hz 0
