Single Axle 40 Ton Truck Weigh In Motion Scales For Highway

Basic Information

Place of Origin:	Zhenghou`China
Brand Name:	Hengliang
Certification:	ISO
Model Number:	ZQS-40-SY

Minimum Order Quantity:	1 SET
Price:	USD 20000-35000/SET
Packaging Details:	Wooden box
Delivery Time:	5~7days
Payment Terms:	T/T
Supply Ability:	30 SET/Month

Get Best Price Contact Now

Detail Information

Type:	WIM System	Working Voltage:	AC 220V
Weighing Error:	3%~10%	Speed:	0.5~105km/h
Single Axle Load:	40T	Maximum Load:	60T (single Axle)
Division Value:	50kg	MTBF:	≥20000h
Temperature Range:	-45~+80℃	Protection Level:	IP68
Highlight:	40 Ton Truck Weigh In Motion , weigh in motion scales For Highway , 40T weigh in motion scales

Product Description

Highway Management High Speed Pre Inspection Dynamic WIM System

Product Function

More and more practical applications at home and abroad have proved that the high-speed and low-speed combined with the dynamic weighing system is a good solution to deal with over limit and overload on high-grade highways with large traffic flow, many lanes and fast speed. It has the characteristics of high detection efficiency and strong detection pertinence, which not only reduces the detection pressure of low-speed weighing in the law enforcement station, It also ensures that road traffic will not be congested due to law enforcement detection.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

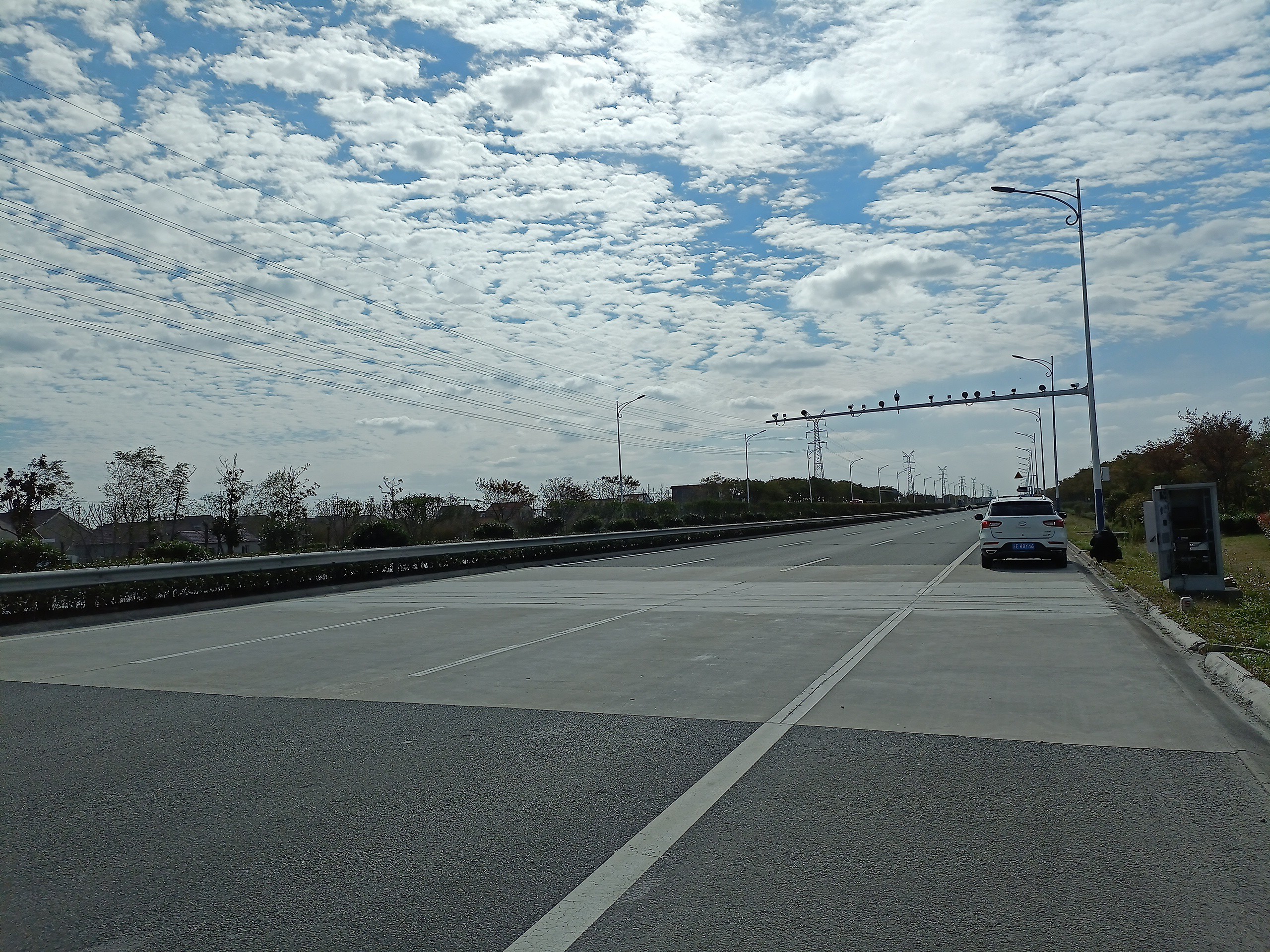

Project Case
