Vehicle Overload Dynamic Weighing System Truck Overrun Control

Name: Vehicle Overload Dynamic Weighing System Truck Overrun Control
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO, CE

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                    Overload Dynamic Weighing System, Overrun Control WIM System, Vehicle Overload Dynamic WIM System


System Type:	WIM System	Working Voltage:	AC 220V
System Accuracy:	90%~97%	System Speed:	0.5~100km/h
Axle Load (single Axle):	40Ton	Single Axle Max Overload:	60Ton
MTBF:	≥20000h	Temperature:	-45~+80℃

System Type:	WIM System
Working Voltage:	AC 220V
System Accuracy:	90%~97%
System Speed:	0.5~100km/h
Axle Load (single Axle):	40Ton
Single Axle Max Overload:	60Ton
MTBF:	≥20000h
Temperature:	-45~+80℃

Product Description

Truck Overrun Control Vehicle Overload Dynamic Weighing System

Product Description

Establish an overrun dynamic fine inspection system based on computer network to automatically monitor illegal and out of gauge transportation of vehicles, realize 24-hour freight vehicle transportation monitoring, form a powerful deterrent, focus on solving the three major problems of shortage of overload control staff, difficulty in obtaining evidence, and safety of overload control, and reduce the rate of out of gauge vehicle transportation.
1. Off site inspection
Use the off-site detection equipment to obtain the total weight of vehicle and cargo, the number of vehicle axles, speed, and axle load data; Use the vehicle license plate recognition system (i.e. snapshot facility) to obtain the vehicle license plate information and identify the license plate; The license plate and overrun information shall be quickly transmitted to the LED screen for display, and the vehicle driver shall be informed in time.
2. Weighing accuracy
The number of axles, axle load, gross weight of vehicle and cargo, license plate, speed and other information can be measured timely and accurately without stopping, decelerating, driving at a specific speed and in a specific lane. The accuracy is not lower than the national level 5 standard. The vehicle can pass the verification with a type evaluation certificate.

3. Test data transmission

After the total weight of vehicle and cargo, number of vehicle axles, on-site photos, vehicle license plate and other relevant information are processed on site, they are transmitted to the background data server through the operator network or optical fiber direct connection. The road administration personnel can master the traffic conditions of vehicles through the internal network.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Single axle max Load	60Ton
Speed	0.5~100km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

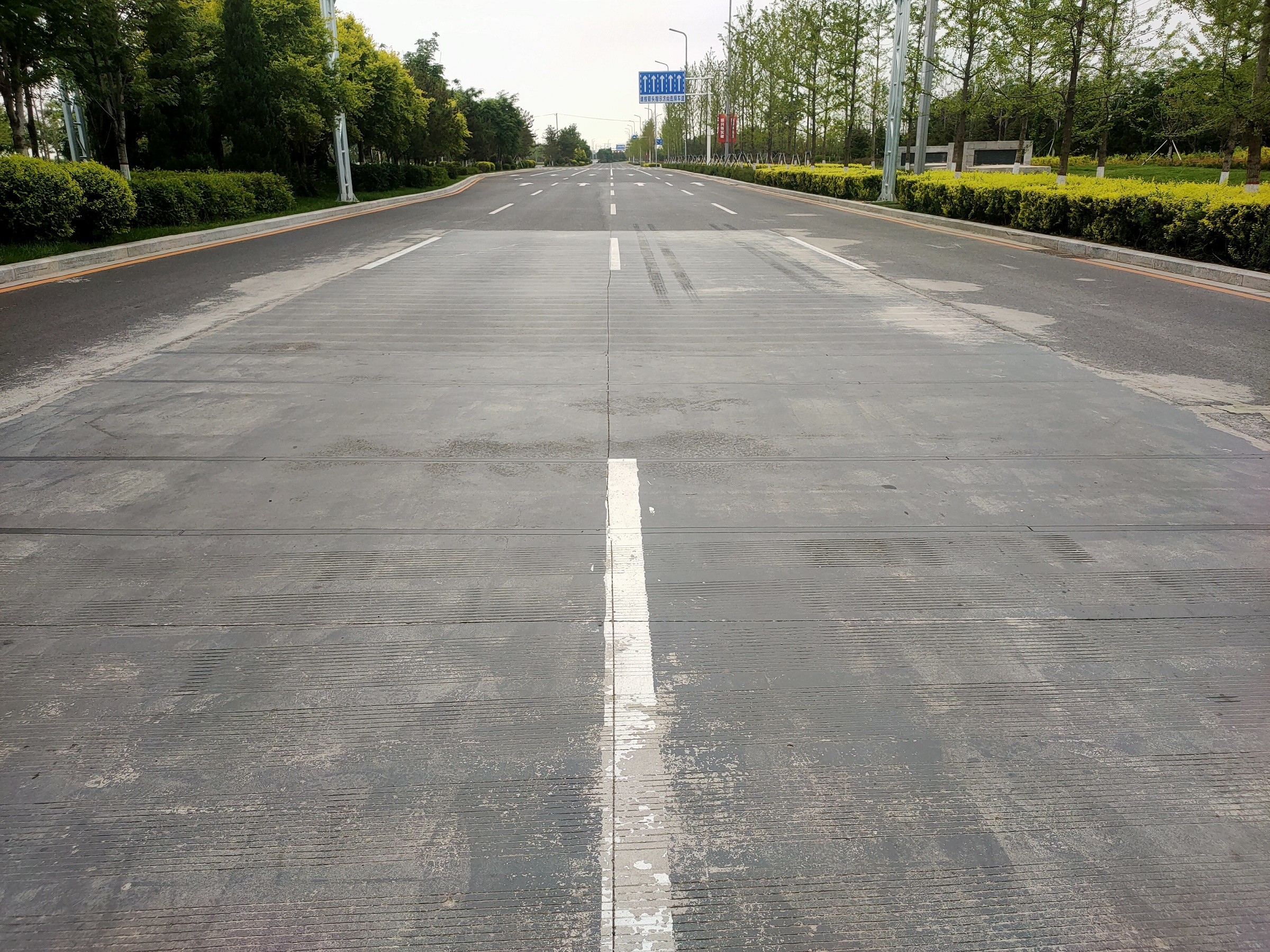

Project Case

Vehicle Overload Dynamic Weighing System Truck Overrun Control 0
