Unattended WIM System Of Axle Load Weighing With High Confidence
| Place of Origin | Zhenghou`China |
|---|---|
| Brand Name | Hengliang |
| Certification | ISO, CE |
| Model Number | ZQS-40-SY |
| Minimum Order Quantity | 1 SET |
| Price | USD 20000-35000/SET |
| Packaging Details | Wooden box |
| Delivery Time | 5~7days |
| Payment Terms | T/T |
| Supply Ability | 30 SET/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | WIM System | Working Voltage | AC 220V |
|---|---|---|---|
| Weighing Accuracy | 90%~97% | Speed Rate | 0.5~100km/h |
| Axle Load | 40Ton (single Axle) | Single Axle Max Overload | 60Ton |
| MTBF | ≥20000h | Temperature | -45~+80℃ |
| Highlight | WIM System Unattended,Axle Load Weighing WIM System,WIM System With High Confidence |
||
Product Description
Unattended system of axle load weighing with high confidence
Product Description
Establish an overrun dynamic fine inspection system based on computer network to automatically monitor illegal and out of gauge transportation of vehicles, realize 24-hour freight vehicle transportation monitoring, form a powerful deterrent, focus on solving the three major problems of shortage of overload control staff, difficulty in obtaining evidence, and safety of overload control, and reduce the rate of out of gauge vehicle transportation.
1. Test data transmission
After the total weight of vehicle and cargo, number of vehicle axles, on-site photos, vehicle license plate and other relevant information are processed on site, they are transmitted to the background data server through the operator network or optical fiber direct connection. The road administration personnel can master the traffic conditions of vehicles through the internal network.
2. On site inspection data management application
The data platform system can complete the functional requirements of collection, calculation, control, display, alarm, storage, etc., reduce the limit of personnel position, and promote the handling of overload control at the first time. At the same time, the system can analyze the data based on the vehicle data reported by each station, and provide support for highway managers to make decisions.
Product Parameters
| Weighing accuracy | 90%~97% |
| Single axle load | 40Ton |
| Single axle max Load | 60Ton |
| Speed | 0.5~100km/h； |
| Speed error | ≤±1km/h |
| Wheelbase error | ≤±100mm |
| Working voltage | AC 220V 50Hz |
| Output information | Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time |
| Maximum number of lanes | 8 lanes |
| Data storage | It can store up to 10000 pieces of vehicle information data |
| data interface | RJ485 |
| work environment | -45℃～80℃,0～95% |
| Confidence | ≥95% |

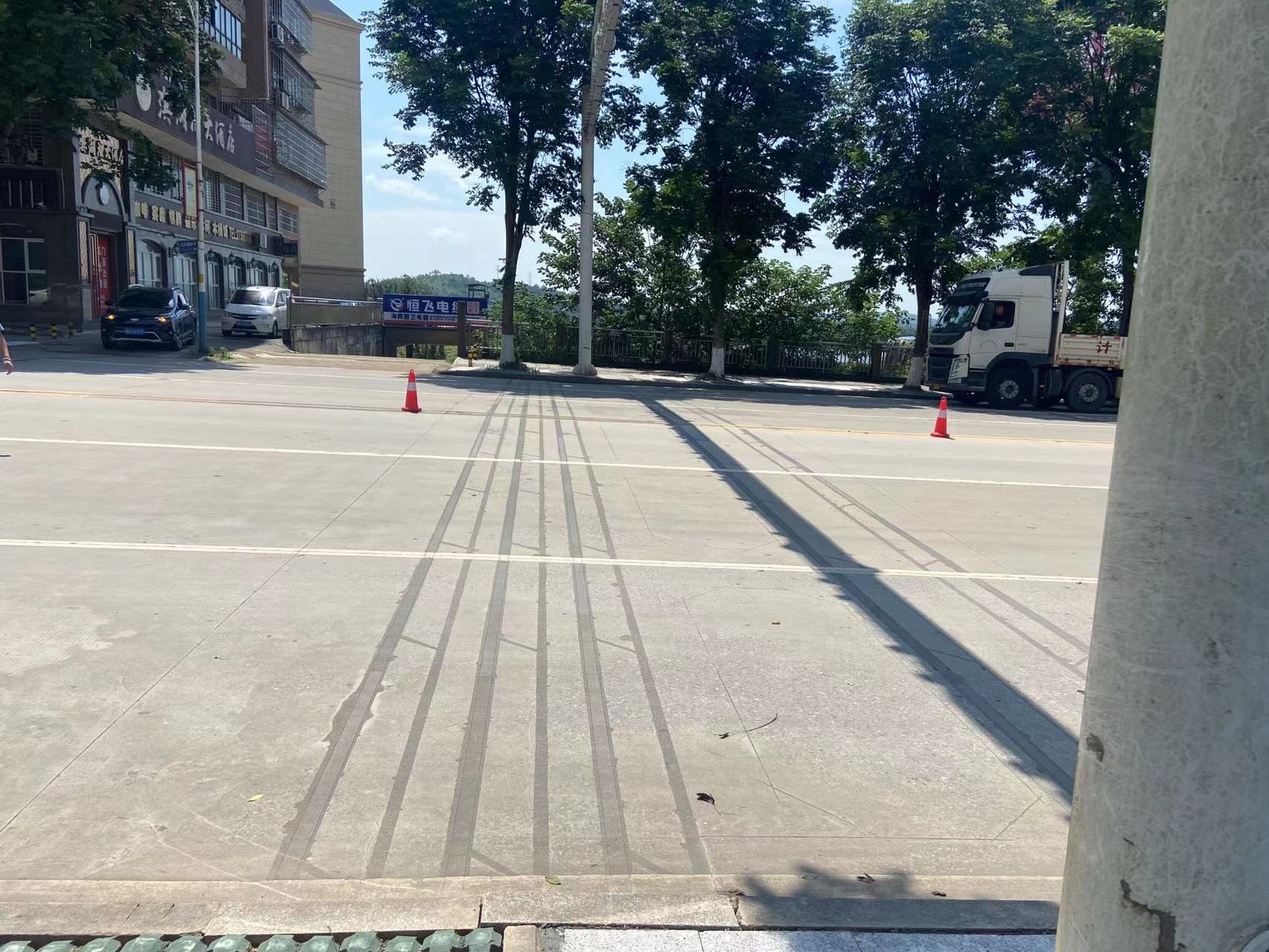

Project Case
