Axle Load Overrun Management WIM System For Single Axle Detection Of 0.5t - 40t

Name: Axle Load Overrun Management WIM System For Single Axle Detection Of 0.5t - 40t
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO, CE

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                    Axle Load Overrun Management System, Axle Load Overrun WIM System, WIM System For Single Axle Detection


Product Type:	WIM System	Working Voltage:	AC 220V
Weight Accuracy:	90%~97%	Speed Range:	0.5~100km/h
Single Axle Load:	40T	Single Axle Max Overload:	60T
MTBF:	≥20000h	Temperature:	-45~+80℃

Product Type:	WIM System
Working Voltage:	AC 220V
Weight Accuracy:	90%~97%
Speed Range:	0.5~100km/h
Single Axle Load:	40T
Single Axle Max Overload:	60T
MTBF:	≥20000h
Temperature:	-45~+80℃

Product Description

Axle Load Overrun Management System For Single Axle Detection Of 0.5t-40t

Product Description

Establish an overrun dynamic fine inspection system based on computer network to automatically monitor illegal and out of gauge transportation of vehicles, realize 24-hour freight vehicle transportation monitoring, form a powerful deterrent, focus on solving the three major problems of shortage of overload control staff, difficulty in obtaining evidence, and safety of overload control, and reduce the rate of out of gauge vehicle transportation.

1. Weighing speed adaptability

In order to avoid the detection of off-site law enforcement weighing system, illegal vehicles that exceed the limit often cheat by using super low speed over weighing, high speed post punching and other behaviors. The bidding products can accurately detect the following behaviors, and the accuracy reaches level 5:

1) Be able to weigh accurately when the vehicle is over balanced at super low speed or running and stopping, that is, be able to weigh vehicles of the speed cutoff type (intermittent driving);

2) It can accurately weigh when the vehicle passes at high speed, that is, the maximum detection speed of dynamic weighing reaches 100km/h;

2. Test data transmission

After the total weight of vehicle and cargo, number of vehicle axles, on-site photos, vehicle license plate and other relevant information are processed on site, they are transmitted to the background data server through the operator network or optical fiber direct connection. The road administration personnel can master the traffic conditions of vehicles through the internal network.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Single axle max Load	60Ton
Speed	0.5~100km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

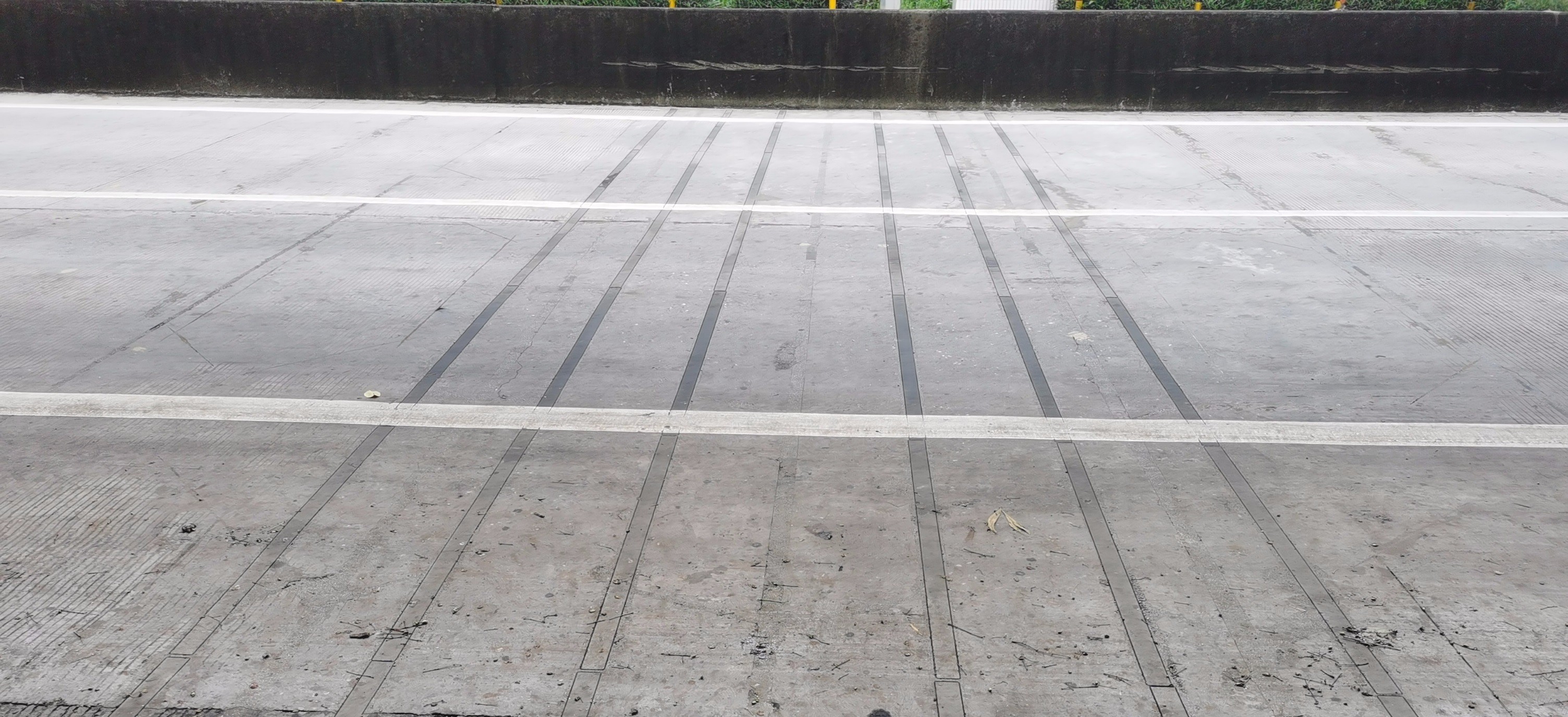

Project Case

Axle Load Overrun Management WIM System For Single Axle Detection Of 0.5t - 40t 0
