Dynamic Weighing WIM System For Overrun Treatment At Different Speed Segments

Name: Dynamic Weighing WIM System For Overrun Treatment At Different Speed Segments
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO, CE

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                    Dynamic Weighing WIM System, WIM System For Overrun Treatment, single axle Dynamic Weighing WIM System


Product Type:	WIM System	Work Voltage:	AC 220V
Weight Accuracy:	90%~97%	Speed Range:	0.5~100km/h
Axle Load:	40Ton (single Axle)	Single Axle Max Overload:	60T
MTBF:	≥20000h	Temperature:	-45~+80℃

Product Type:	WIM System
Work Voltage:	AC 220V
Weight Accuracy:	90%~97%
Speed Range:	0.5~100km/h
Axle Load:	40Ton (single Axle)
Single Axle Max Overload:	60T
MTBF:	≥20000h
Temperature:	-45~+80℃

Product Description

Dynamic Weighing System for Overrun Treatment at Different Speed Segments

Product Description

Establish an overrun dynamic fine inspection system based on computer network to automatically monitor illegal and out of gauge transportation of vehicles, realize 24-hour freight vehicle transportation monitoring, form a powerful deterrent, focus on solving the three major problems of shortage of overload control staff, difficulty in obtaining evidence, and safety of overload control, and reduce the rate of out of gauge vehicle transportation.

1. Weighing speed adaptability

In order to avoid the detection of off-site law enforcement weighing system, illegal vehicles that exceed the limit often cheat by using super low speed over weighing, high speed post punching and other behaviors. The bidding products can accurately detect the following behaviors, and the accuracy reaches level 5:

1) Be able to weigh accurately when the vehicle is over balanced at super low speed or running and stopping, that is, be able to weigh vehicles of the speed cutoff type (intermittent driving);

2) It can accurately weigh when the vehicle passes at high speed, that is, the maximum detection speed of dynamic weighing reaches 100km/h;

2. Single axle weighing capacity

With the development of vehicle refitting technology and material performance, the vehicle overrun capacity has also been improved. Malignant overrun vehicles with four axles exceeding 100 tons and six axles exceeding 150 tons have also appeared from time to time. The rear axle weight of such vehicles often exceeds 40 tons, causing great damage to roads and bridges. However, the maximum weight of traditional dynamic truck scale is only 40 tons, which cannot accurately weigh such vehicles.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Single axle max Load	60Ton
Speed	0.5~100km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

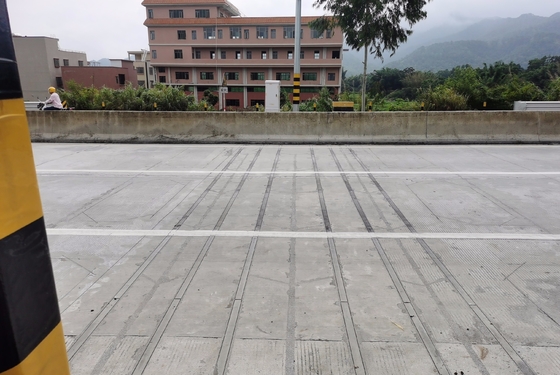

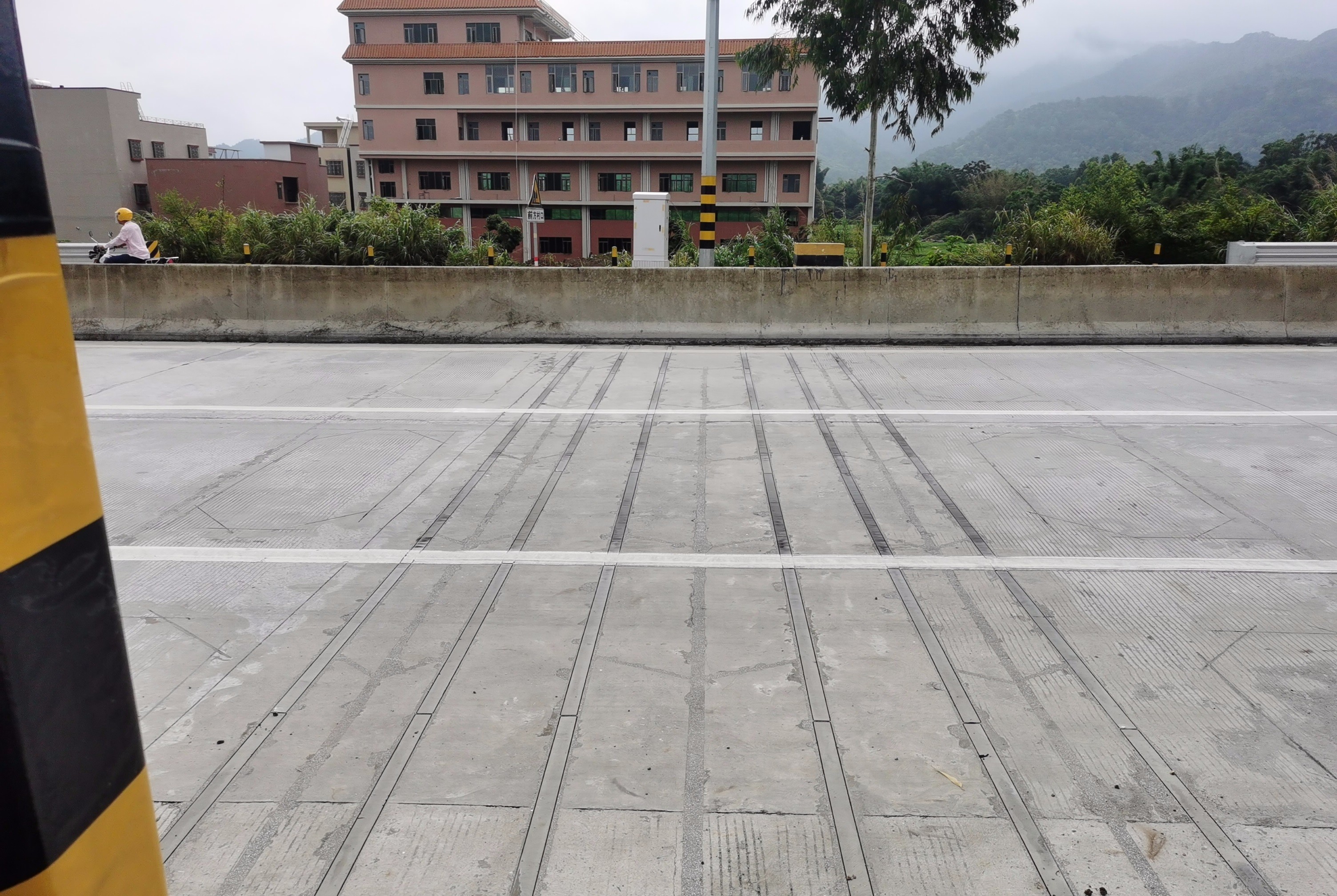

Project Case

Dynamic Weighing WIM System For Overrun Treatment At Different Speed Segments 0
