Weighing Sensor WIM System Passive Quartz Dynamic

Basic Information
Place of Origin: Zhenghou`China
Brand Name: Hengliang
Certification: ISO, CE
Model Number: ZQS-40-SY
Minimum Order Quantity: 1 SET
Price: USD 20000-35000/SET
Packaging Details: Wooden box
Delivery Time: 5~7days
Payment Terms: T/T
Supply Ability: 30 SET/Month
Detail Information
Name: High Speed Weight In Motion System Voltage: AC 220V
Weighing Accuracy: 90%~97% Speed: 0.5~100km/h
Axle Load: 40Ton (single Axle) Single Axle Max Overload: 60T
MTBF: ≥20000h Temperature: -45~+80℃
Highlight:

Weighing Sensor WIM System

,

Piezoelectric Dynamic WIM System

,

Passive Quartz WIM System


Product Description

Passive Quartz Dynamic Weighing Sensor WIM System

Product Description



 Establish an overrun dynamic fine inspection system based on computer network to automatically monitor illegal and out of gauge transportation of vehicles, realize 24-hour freight vehicle transportation monitoring, form a powerful deterrent, focus on solving the three major problems of shortage of overload control staff, difficulty in obtaining evidence, and safety of overload control, and reduce the rate of out of gauge vehicle transportation.

1. Weighing accuracy

The number of axles, axle load, gross weight of vehicle and cargo, license plate, speed and other information can be measured timely and accurately without stopping, decelerating, driving at a specific speed and in a specific lane. The accuracy is not lower than the national level 5 standard. The vehicle can pass the verification with a type evaluation certificate.

2. Test data transmission

After the total weight of vehicle and cargo, number of vehicle axles, on-site photos, vehicle license plate and other relevant information are processed on site, they are transmitted to the background data server through the operator network or optical fiber direct connection. The road administration personnel can master the traffic conditions of vehicles through the internal network.







Product Parameters

Weighing accuracy 90%~97%
Single axle load 40Ton
Single axle max Load 60Ton
Speed 0.5~100km/h;
Speed error ≤±1km/h
Wheelbase error ≤±100mm
Working voltage AC 220V 50Hz
Output information Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes 8 lanes
Data storage It can store up to 10000 pieces of vehicle information data
data interface RJ485
work environment -45℃~80℃,0~95%
Confidence ≥95%

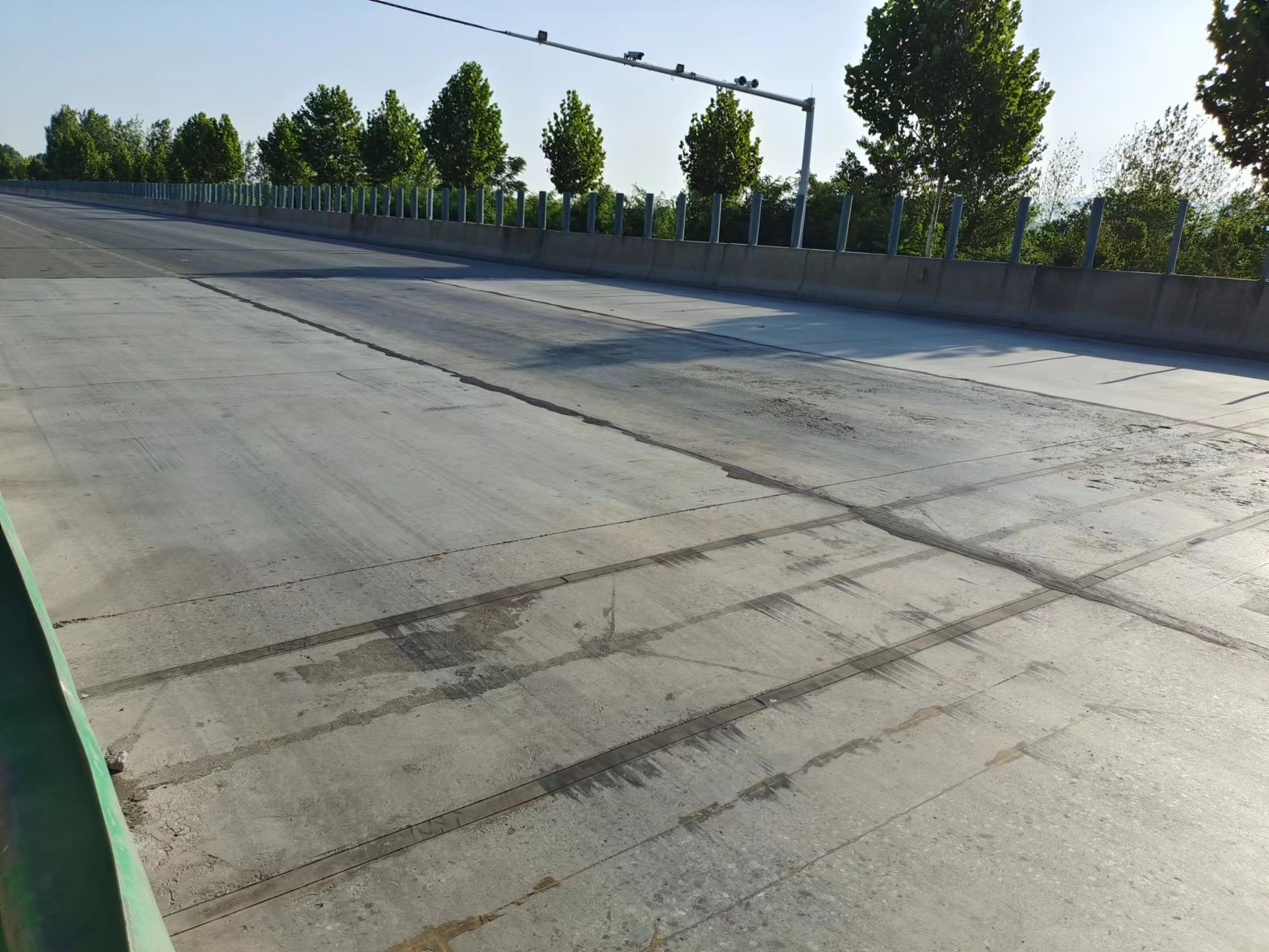

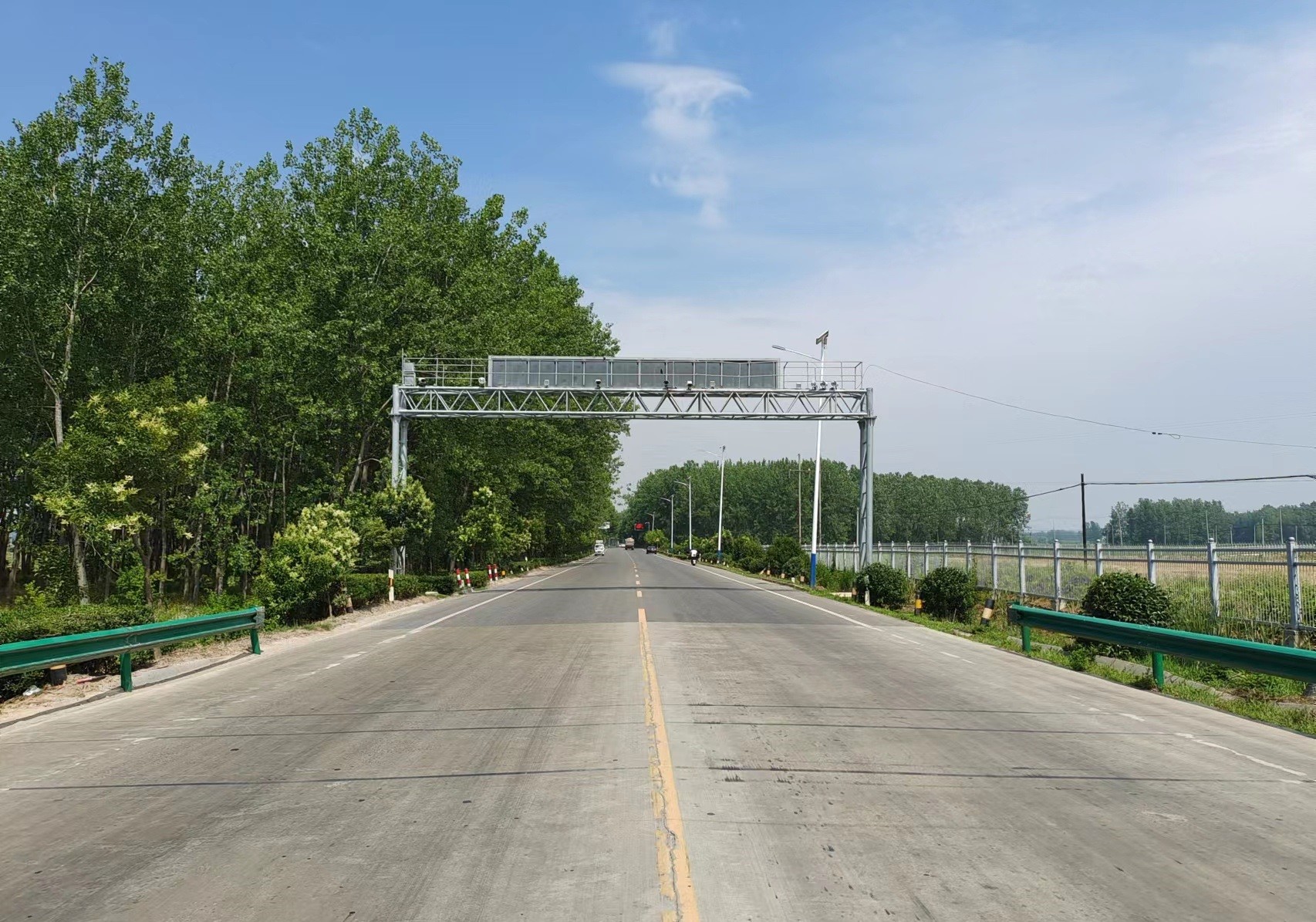

Project Case

Weighing Sensor WIM System Passive Quartz Dynamic 0
