Overrun Control Weight In Motion System Unattended Dynamic Weighing

Name: Overrun Control Weight In Motion System Unattended Dynamic Weighing
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO, CE

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                    Overrun Control Weight In Motion System, Unattended Weight In Motion System, Dynamic Weighing Weight In Motion System


Product Name:	High Speed Weight In Motion System	Voltage:	AC 220V
Weight Accuracy:	90%~97%	Speed Range:	0.5~100km/h
Axle Load:	40Ton (single Axle)	Single Axle Max Overload:	60T
MTBF:	≥20000h	Temperature:	-45~+80℃

Product Name:	High Speed Weight In Motion System
Voltage:	AC 220V
Weight Accuracy:	90%~97%
Speed Range:	0.5~100km/h
Axle Load:	40Ton (single Axle)
Single Axle Max Overload:	60T
MTBF:	≥20000h
Temperature:	-45~+80℃

Product Description

Unattended Dynamic Weighing Overrun Control Weight In Motion System

Product Description

Establish an overrun dynamic fine inspection system based on computer network to automatically monitor illegal and out of gauge transportation of vehicles, realize 24-hour freight vehicle transportation monitoring, form a powerful deterrent, focus on solving the three major problems of shortage of overload control staff, difficulty in obtaining evidence, and safety of overload control, and reduce the rate of out of gauge vehicle transportation.

1. Weighing accuracy

The number of axles, axle load, gross weight of vehicle and cargo, license plate, speed and other information can be measured timely and accurately without stopping, decelerating, driving at a specific speed and in a specific lane. The accuracy is not lower than the national level 5 standard. The vehicle can pass the verification with a type evaluation certificate.

2. Full width pavement seamless detection

It is very common for highway vehicles to cross the lane or drive against the lane line during normal driving. In order to avoid detection, out of gauge vehicles will deliberately use the method of low-speed edging and pressing the sensor seam to drive, so that part of the tires leave the weighing carrier, making the data inaccurate to avoid detection. The weighing equipment can accurately weigh the vehicles that cross the lane and the vehicles that press the line, with the error not exceeding ± 5%.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Single axle max Load	60Ton
Speed	0.5~100km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

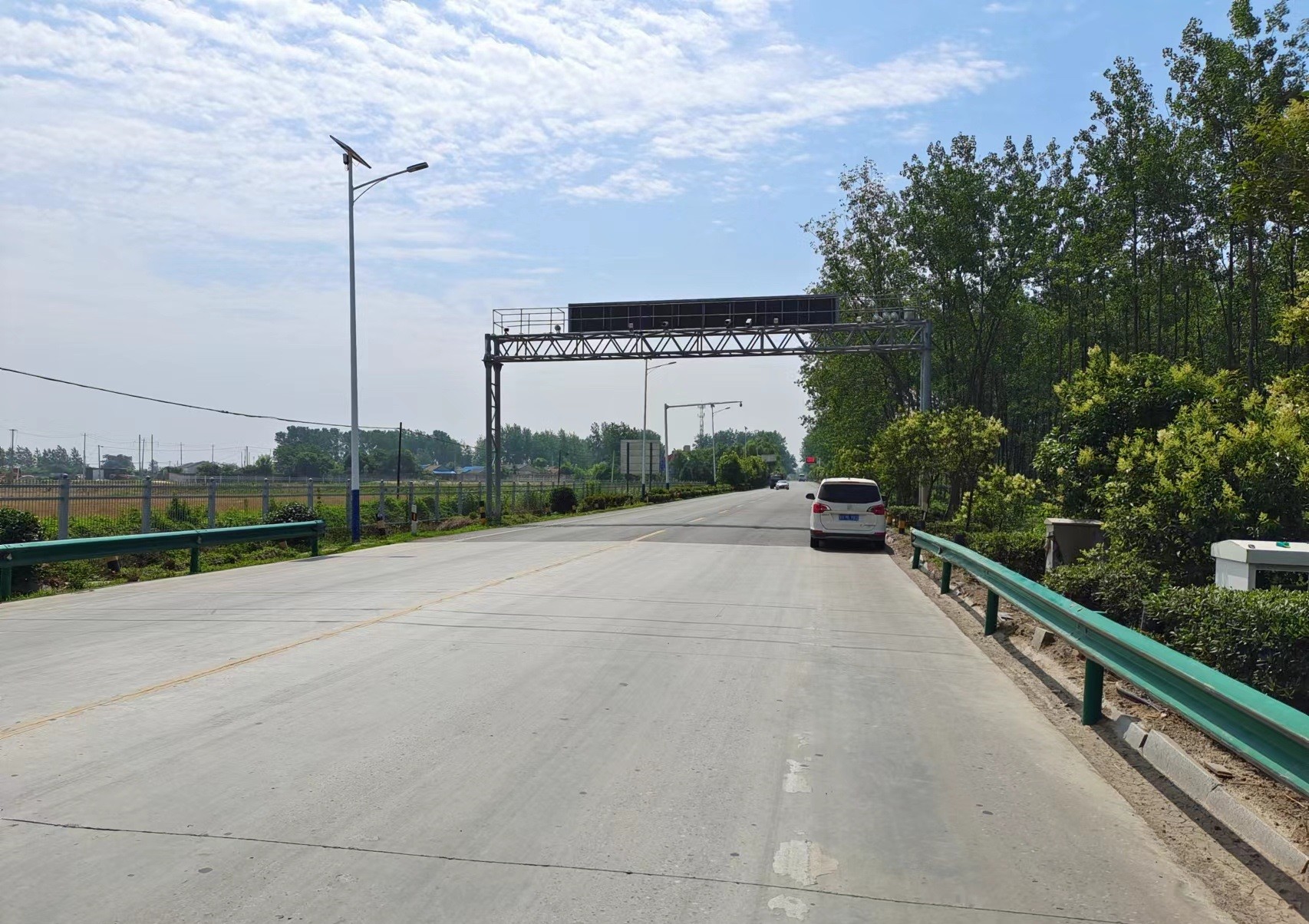

Project Case

Overrun Control Weight In Motion System Unattended Dynamic Weighing 0
