High Protective 0.5 - 100km/H Axle Load Weighing System

Name: High Protective 0.5 - 100km/H Axle Load Weighing System
Brand: Zhengzhou Hengliang Tech Co., Ltd.
SKU: ZQS-40-SY
Price: 27,500.00 USD
Availability: InStock

Product Details

Place of Origin: Zhenghou`China

Brand Name: Hengliang

Certification: ISO, CE

Model Number: ZQS-40-SY

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 20000-35000/SET

Packaging Details: Wooden box

Delivery Time: 5~7days

Payment Terms: T/T

Supply Ability: 30 SET/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                    High Protective WIM System, 100km/H WIM System, Axle Load Weighing System


Product Name:	High Speed Weight In Motion System	Voltage:	AC 220V
Weight Error:	3%~10%	Speed:	0.5~100km/h
Axle Load:	40Ton (single Axle)	Single Axle Max Overload:	60T
MTBF:	≥20000h	Temperature:	-45~+80℃

Product Name:	High Speed Weight In Motion System
Voltage:	AC 220V
Weight Error:	3%~10%
Speed:	0.5~100km/h
Axle Load:	40Ton (single Axle)
Single Axle Max Overload:	60T
MTBF:	≥20000h
Temperature:	-45~+80℃

Product Description

High Protective High Speed 0.5-100km/H Axle Load Weighing System

Product Description

Establish an overrun dynamic fine inspection system based on computer network to automatically monitor illegal and out of gauge transportation of vehicles, realize 24-hour freight vehicle transportation monitoring, form a powerful deterrent, focus on solving the three major problems of shortage of overload control staff, difficulty in obtaining evidence, and safety of overload control, and reduce the rate of out of gauge vehicle transportation.

1. Weighing accuracy

The number of axles, axle load, gross weight of vehicle and cargo, license plate, speed and other information can be measured timely and accurately without stopping, decelerating, driving at a specific speed and in a specific lane. The accuracy is not lower than the national level 5 standard. The vehicle can pass the verification with a type evaluation certificate.

2. Weighing speed adaptability

In order to avoid the detection of off-site law enforcement weighing system, illegal vehicles that exceed the limit often cheat by using super low speed over weighing, high speed post punching and other behaviors. The bidding products can accurately detect the following behaviors, and the accuracy reaches level 5:

1) Be able to weigh accurately when the vehicle is over balanced at super low speed or running and stopping, that is, be able to weigh vehicles of the speed cutoff type (intermittent driving);

2) It can accurately weigh when the vehicle passes at high speed, that is, the maximum detection speed of dynamic weighing reaches 100km/h.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Single axle max Load	60Ton
Speed	0.5~100km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

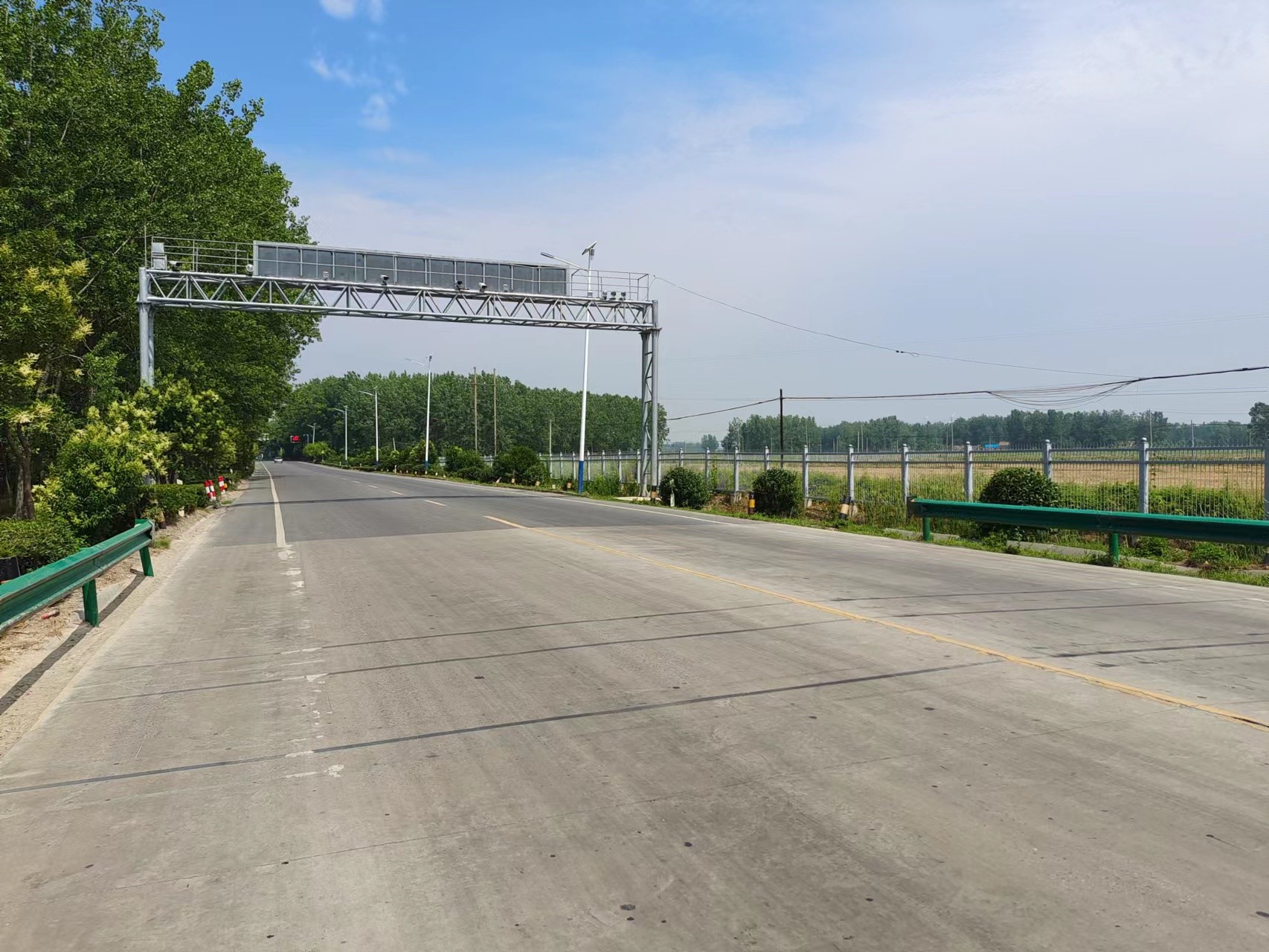

Project Case

High Protective 0.5 - 100km/H Axle Load Weighing System 0
