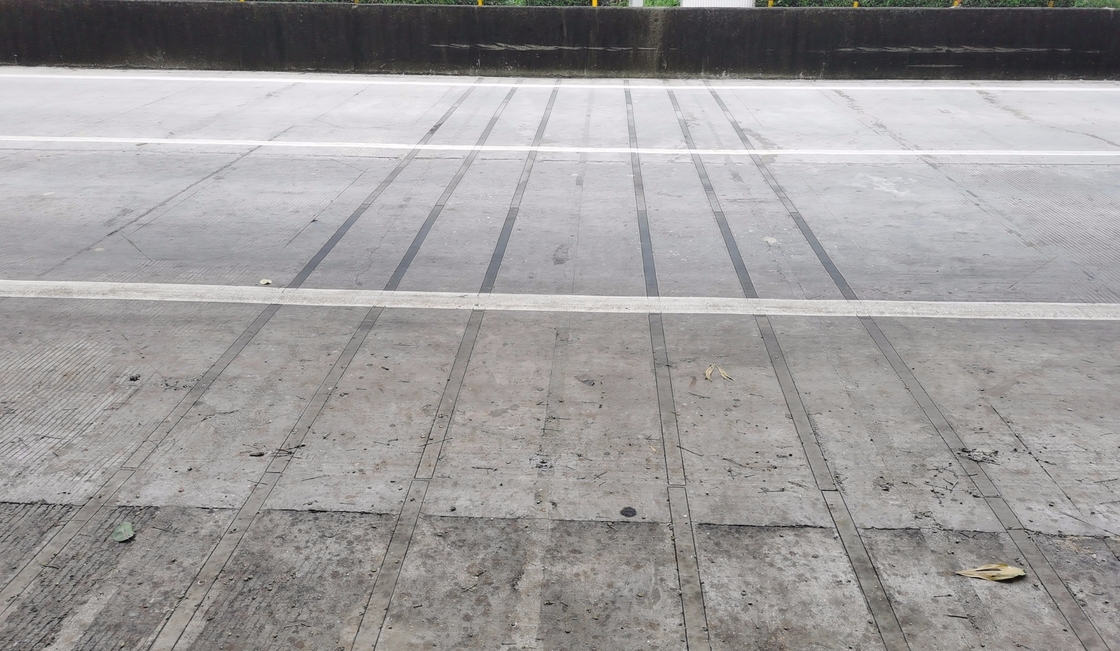

Maximum Speed 105km/H WIM System Single Axle 40T Off Site Law Enforcement
| Place of Origin | Zhenghou`China |
|---|---|
| Brand Name | Hengliang |
| Certification | ISO, CE |
| Model Number | ZQS-40-SY |
| Minimum Order Quantity | 1 SET |
| Price | USD 20000-35000/SET |
| Packaging Details | Wooden box |
| Delivery Time | 5~7days |
| Payment Terms | T/T |
| Supply Ability | 30 SET/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Type | WIM System | Working Power | AC 220V |
|---|---|---|---|
| Weighing Error | 3%~10% | Speed Range | 0.5~100km/h |
| Axle Load | 40T (single Axle) | Single Axle Max Overload | 60T |
| MTBF | ≥20000h | Temperature | -45~+80℃ |
| Highlight | 105km/H WIM System,Single Axle 40T WIM System,Law Enforcement WIM System Off Site |
||
Product Description
Maximum Speed 105km/H Single Axle 40T Off-Site Law Enforcement System
Product Description
Establish an overrun dynamic fine inspection system based on computer network to automatically monitor illegal and out of gauge transportation of vehicles, realize 24-hour freight vehicle transportation monitoring, form a powerful deterrent, focus on solving the three major problems of shortage of overload control staff, difficulty in obtaining evidence, and safety of overload control, and reduce the rate of out of gauge vehicle transportation.
1. Off site inspection
Use the off-site detection equipment to obtain the total weight of vehicle and cargo, the number of vehicle axles, speed, and axle load data; Use the vehicle license plate recognition system (i.e. snapshot facility) to obtain the vehicle license plate information and identify the license plate; The license plate and overrun information shall be quickly transmitted to the LED screen for display, and the vehicle driver shall be informed in time.
2. Single axle weighing capacity
With the development of vehicle refitting technology and material performance, the vehicle overrun capacity has also been improved. Malignant overrun vehicles with four axles exceeding 100 tons and six axles exceeding 150 tons have also appeared from time to time. The rear axle weight of such vehicles often exceeds 40 tons, causing great damage to roads and bridges. However, the maximum weight of traditional dynamic truck scale is only 40 tons, which cannot accurately weigh such vehicles.
Product Parameters
| Weighing accuracy | 90%~97% |
| Single axle load | 40Ton |
| Single axle max Load | 60Ton |
| Speed | 0.5~100km/h； |
| Speed error | ≤±1km/h |
| Wheelbase error | ≤±100mm |
| Working voltage | AC 220V 50Hz |
| Output information | Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time |
| Maximum number of lanes | 8 lanes |
| Data storage | It can store up to 10000 pieces of vehicle information data |
| data interface | RJ485 |
| work environment | -45℃～80℃,0～95% |
| Confidence | ≥95% |

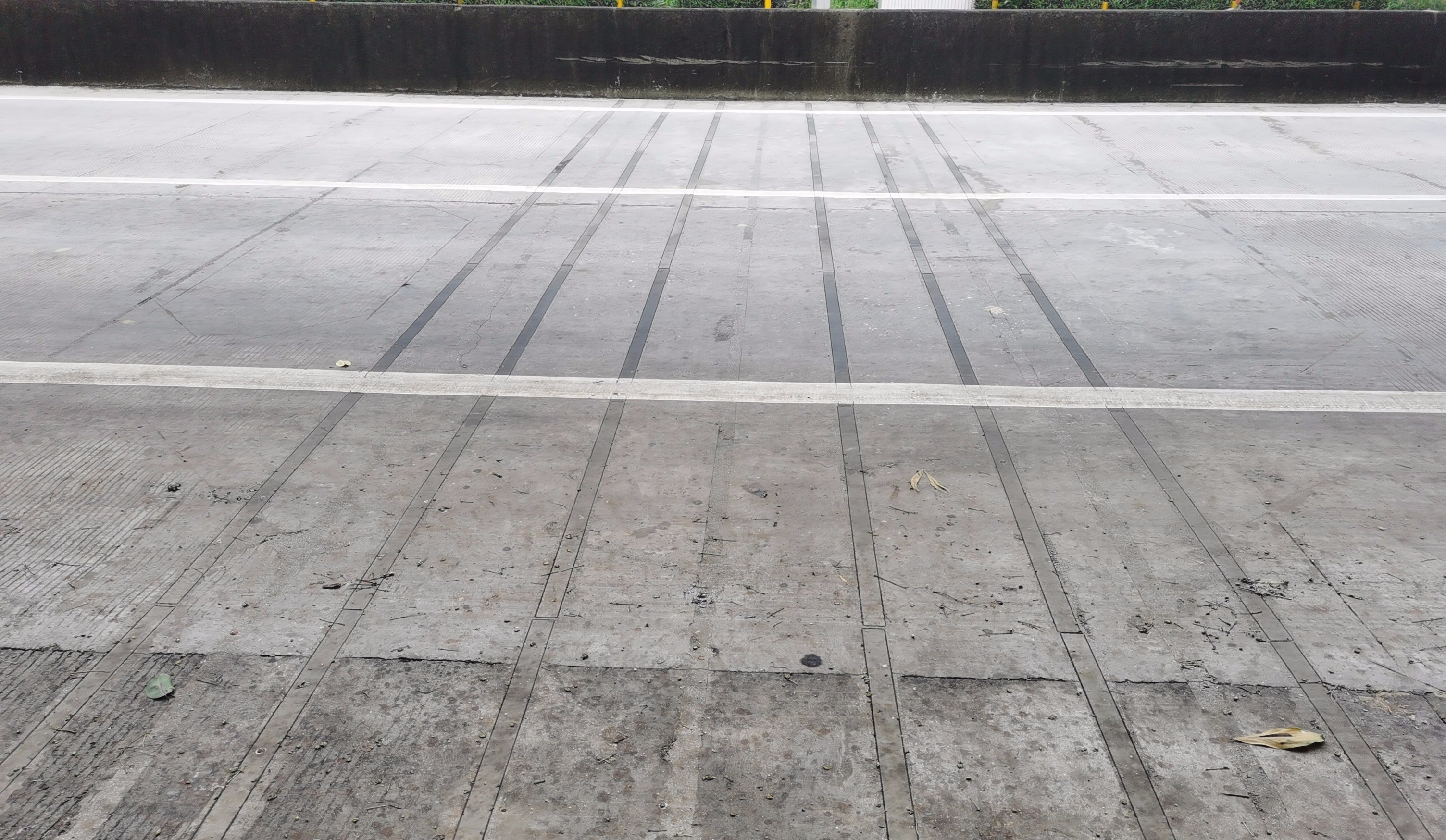

Project Case
